GLD Touch Screen Reference V1.4 – Issue 1 31

ALLEN

&

HEATH

GLD rear panel sockets – XLR and RCA phono analogue

I/O, and SPDIF and AES digital outputs.
GLD top panel USB – Patching for stereo audio playback

and recording.
AR84 AudioRack connected to the GLD surface

EXPANDER Port – 8 Mic/Line inputs and 4 Line outputs.
The socket number and its assigned source or destination

name and colour is displayed for each socket.
Assign output sockets from:

Unassigned

Input Direct Out

Group

Aux

Main

Matrix

Rack FX

USB playback

Input socket

I/O Port input

PAFL monitor

Wedge/IEM monitor

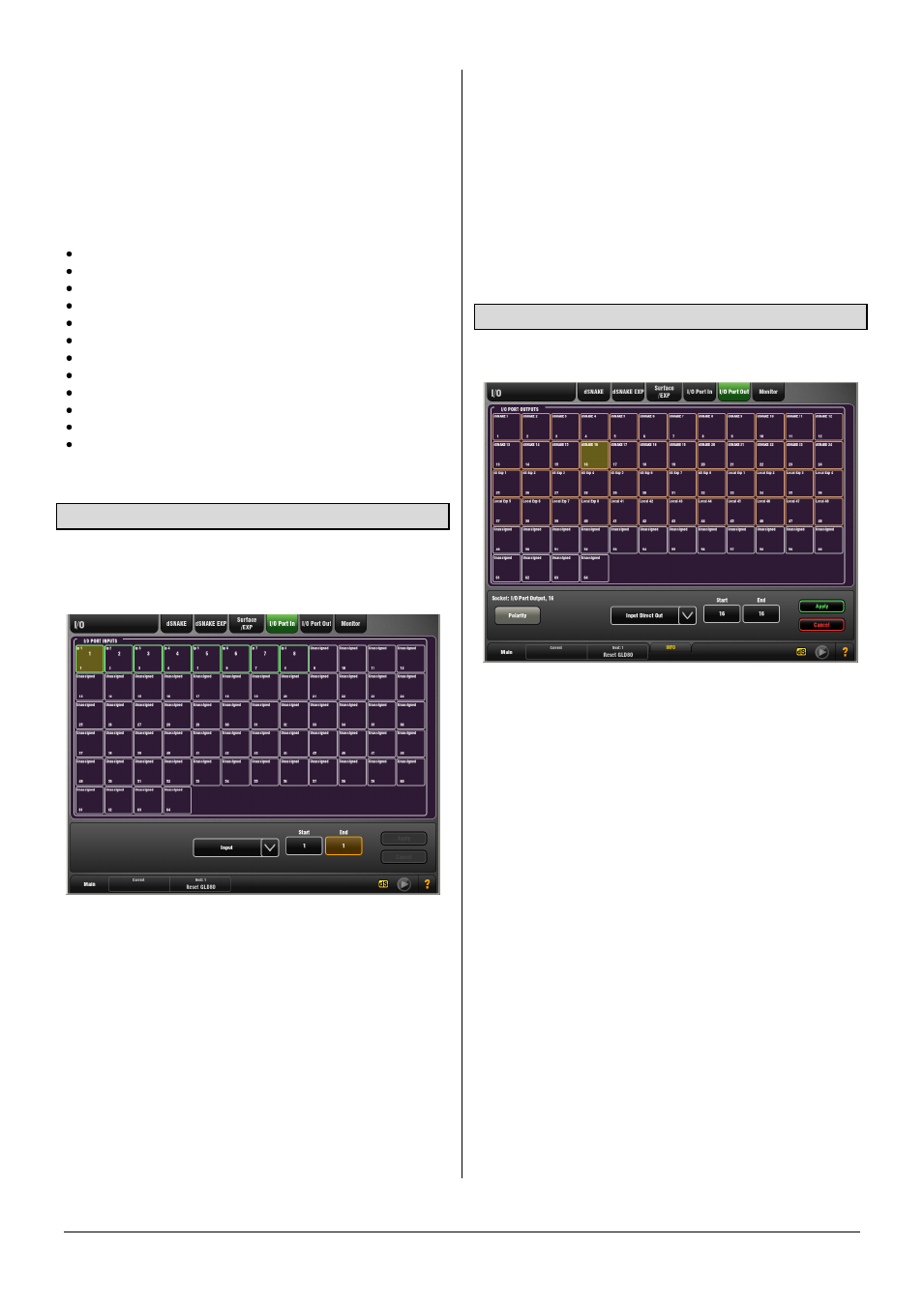

6.4 I/O Port Inputs page

Patch the I/O Port inputs to the GLD input channels, mix Ext

inputs, other I/O port outputs, or direct to physical output

sockets using this page.


GLD I/O Port – Up to 64 channels of bi-directional audio via

a digital audio network card fitted to the I/O Port slot.

Various option cards are available from Allen & Heath, for

example ACE, Dante, MADI, EtherSound, MMO.

Patching Inputs - Touch an input to highlight it. Use the

lower part of the screen to select the channel to assign the

input to. Choose the channel number using the Start box

and screen rotary.
To assign a range of inputs touch the End box and turn the

screen rotary. The inputs about to be assigned are

highlighted on the screen.
Touch

Apply

or

Cancel

to accept or discard the change.

SOURCES

pull-up window

An I/O Port input could be assigned to multiple

destinations, for example to one or more channels and also

to the port output. Use the pull-up to see a list of all

destinations for a highlighted port input.

Note

Inputs can be routed to multiple destinations. You

can patch a single port input as the source to more than

one channel or destination, but you can patch only one

source to a single channel or destination.

6.5 I/O Port Outputs page

Patch GLD signals to the I/O Port channels using this page.


Patching Outputs
- Touch an output to highlight it. Use

the lower part of the screen to select the GLD signal to

assign to that output. Open the menu to scroll through and

select from the available sources. Choose the source

number using the Start box and screen rotary.
To assign a range of outputs touch the End box and turn

the screen rotary. The outputs about to be assigned are

highlighted on the screen.
Touch

Apply

or

Cancel

to accept or discard the change.


Touch the Polarity button to reverse the polarity of a

highlighted output. This affects the output only, not the

source assigned to it.

Note

Outputs can be patched from only one source.
