GLD Touch Screen Reference V1.4 – Issue 1 32 ALLEN & HEATH

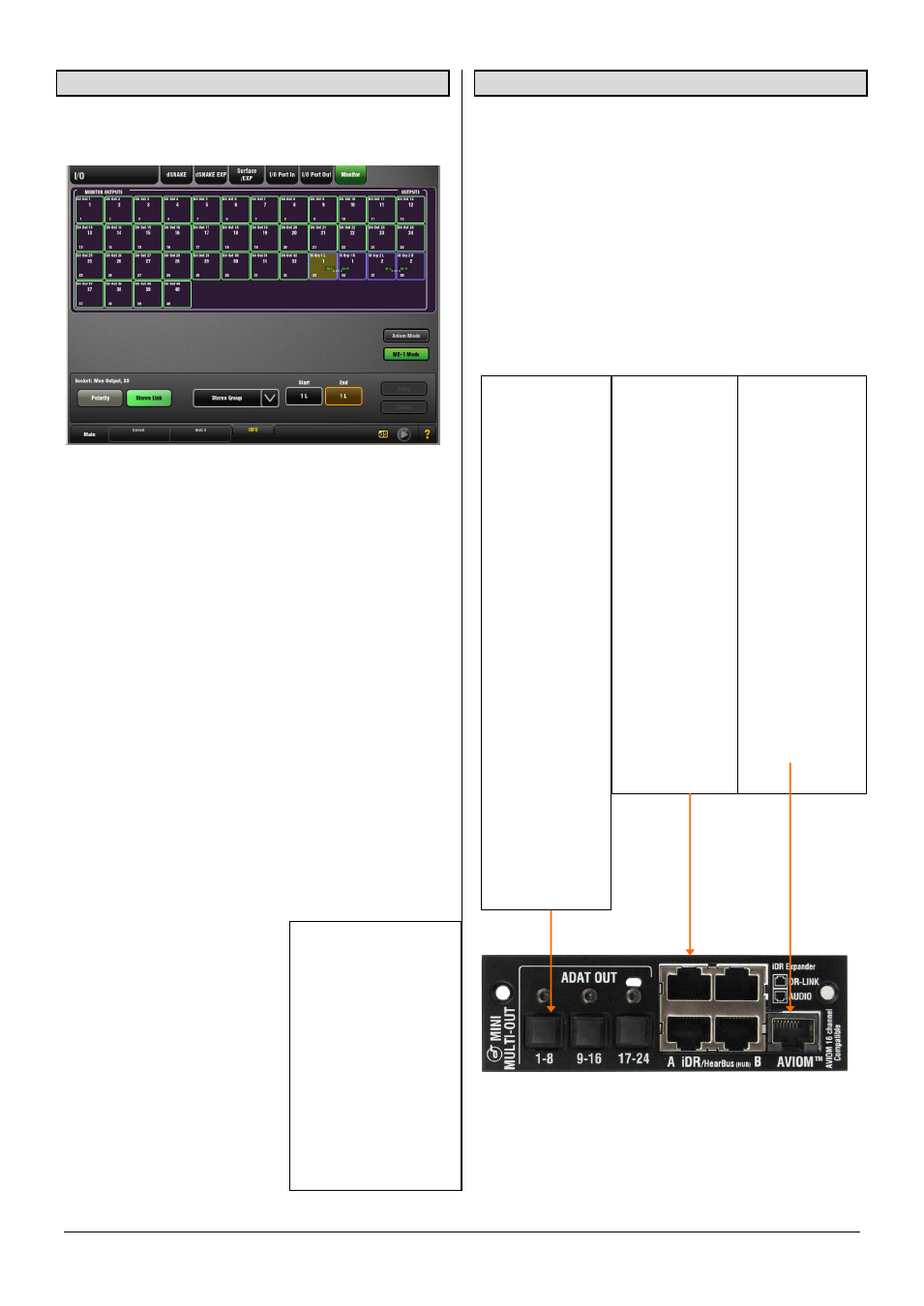

6.6 Monitor Outputs page
Patch GLD signals to the dSNAKE Monitor sends using this
screen.
Set the mode for the AR2412 MONITOR port:
ME-1 Mode – Sets GLD Monitor outputs 1-40 to work with
the Allen & Heath ME-1 personal mixing system. Transmits
audio, GLD channel names and stereo link settings over the
link cable to the ME-1 system.
Aviom Mode – Sets GLD Monitor outputs 1-16 to work with
an Aviom ® A-Net 16 personal monitor system. Transmits
audio and stereo link settings.
Note Mode affects only the MONITOR port on the AR2412
AudioRack. Other dSNAKE ports will always transmit using
ME-1 mode.
Touch the Stereo Link button to link the related odd/even
pair of outputs to be identified as stereo by a connected
ME-1 or Aviom ® personal monitor system.
6.7 MMO card in the I/O Port
Up to 64 GLD inputs and 64 outputs can be assigned to an
audio option card fitted to the GLD-80 rear panel I/O Port.
The MMO (Mini Multi Out) card provides several output
formats – 24 channels of ADAT optical out, two 8 channel
iDR links to connect the Allen & Heath iDR-8 or iDR-4 mix
processors, or the iDR-Out or iDR-Dout output expander,
and also compatible with the HearBus hub, and a 16
channel output compatible with Aviom ® A-Net 16 or the
Allen & Heath ME personal mixing system running in Aviom
mode.
The card uses 56 channels from the port. These are
assigned using the I/O / Port Out screen. The port
channels map to the MMO sockets as below:
GLD Port Map
Port Out: MMO:
ADAT
1
ADAT 1
2 ADAT 2
3 ADAT 3
4 ADAT 4
5 ADAT 5
6 ADAT 6
7 ADAT 7
8 ADAT 8
9 ADAT 9
10 ADAT 10
11 ADAT 11
12 ADAT 12
13 ADAT 13
14 ADAT 14
15 ADAT 15
16 ADAT 16
17 ADAT 17
18 ADAT 18
19 ADAT 19
20 ADAT 20
21 ADAT 21
22 ADAT 22
23 ADAT 23
24 ADAT 24
GLD Port Map
Port Out: MMO:
iDR A
25 iDR-A 1
26 iDR-A 2
27 iDR-A 3
28 iDR-A 4
29 iDR-A 5
30 iDR-A 6
31 iDR-A 7
32 iDR-A 8
iDR B
33 iDR-B 1
34 iDR-B 2
35 iDR-B 3
36 iDR-B 4
37 iDR-B 5
38 iDR-B 6
39 iDR-B 7
40 iDR-B 8
GLD Port Map
Port Out: MMO:
Aviom ®
41
Aviom 1
42 Aviom 2
43 Aviom 3
44 Aviom 4
45 Aviom 5
46 Aviom 6
47 Aviom 7
48 Aviom 8
49 Aviom 9
50 Aviom 10
51 Aviom 11
52 Aviom 12
53 Aviom 13
54 Aviom 14
55 Aviom 15
56 Aviom 16
Assign each output:
• Unassigned
• Input Direct Out
• Group
• Aux
• Main Mix
• Matrix
• Rack FX
• USB playback
• Input socket
• I/O Port input
• PAFL monitor
• Wedge/IEM monitor
