6.8 I/O
The advanced view allows editing of ScaleCore listeners feature. This controls the machine to machine
communications interfaces.

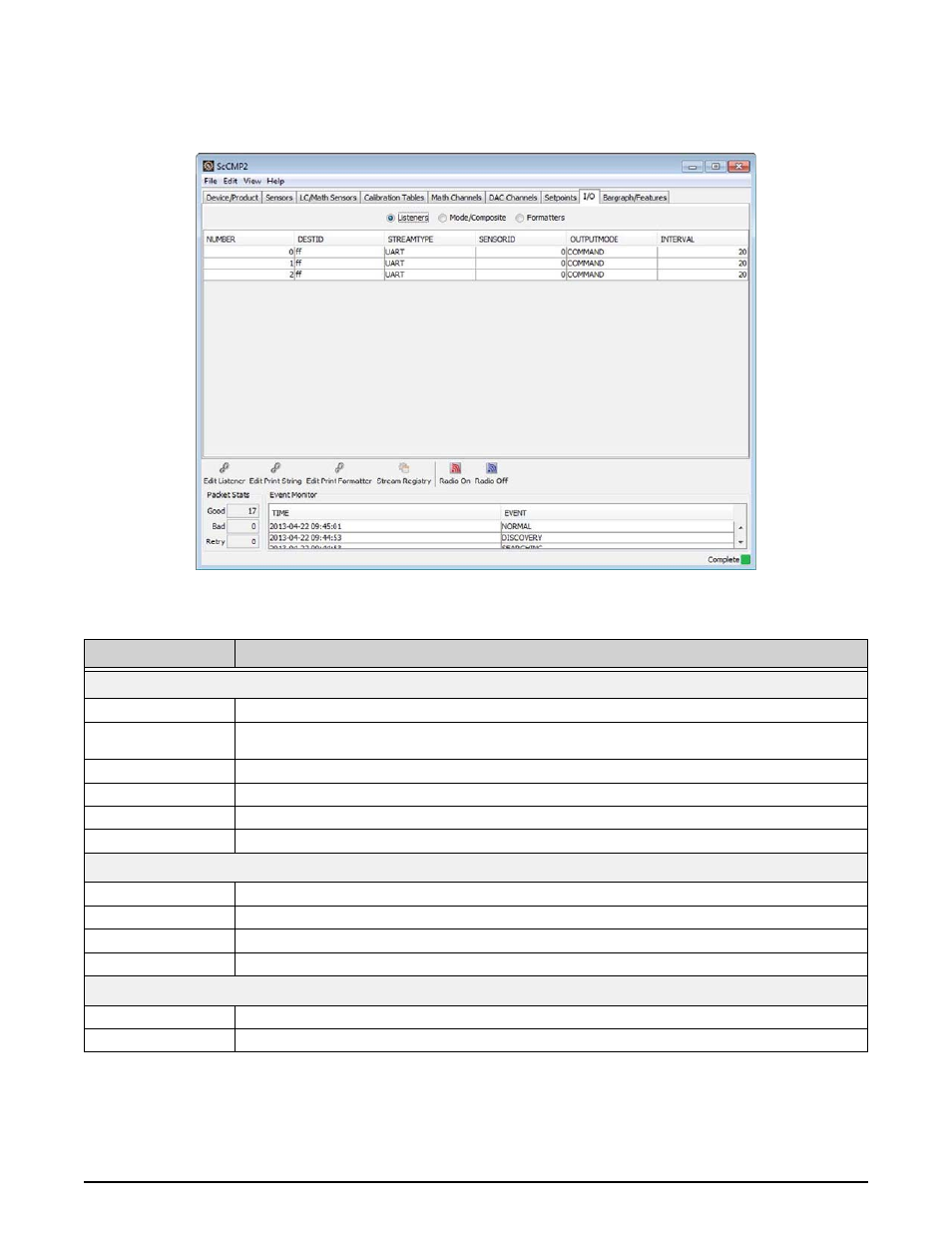

Figure 6-9. Configuration View - I/O
6.8.1 Parameters
Table 6-8. Listener Parameters
Parameter Description
Listeners
Number Stream listener number or ID. It range from 0 to 2.
Destination ID
Destination ID, or deviceID assigned to the stream listener. 255 means broadcast ID, it is for every
device that attached the ScaleCore.
Stream Type Stream type of this stream listener.
Sensor ID Sensor ID. Range 0 to 16. The listener want to observe this sensor.
Output Mode Output mode for the listener.
Interval Time interval in 50 milliseconds per count. For example, 20 means 20x50milliSec = 1 second.
Mode/Composite
Number Stream listener number or ID. It ranges from 0 to 2.
Print Mode Output control mode, 0= disabled, 1=command or key press, 2= stable load, 3=continuous.
Interval Interval period on continuous output mode. 0=as fast as it can. None zero value has unit in second.
Composite Formatter composite string. Each digit represent a formatter number.
Formatters
Number Formatter number range 0 to 6.
Format Print formatter string.
