R
Fuse box in the engine compartment on the
left-hand side of the vehicle, when viewed
in the direction of travel
R
Fuse box in the engine compartment on the
right-hand side of the vehicle, when viewed
in the direction of travel
The fuse allocation chart is in the vehicle
document wallet.

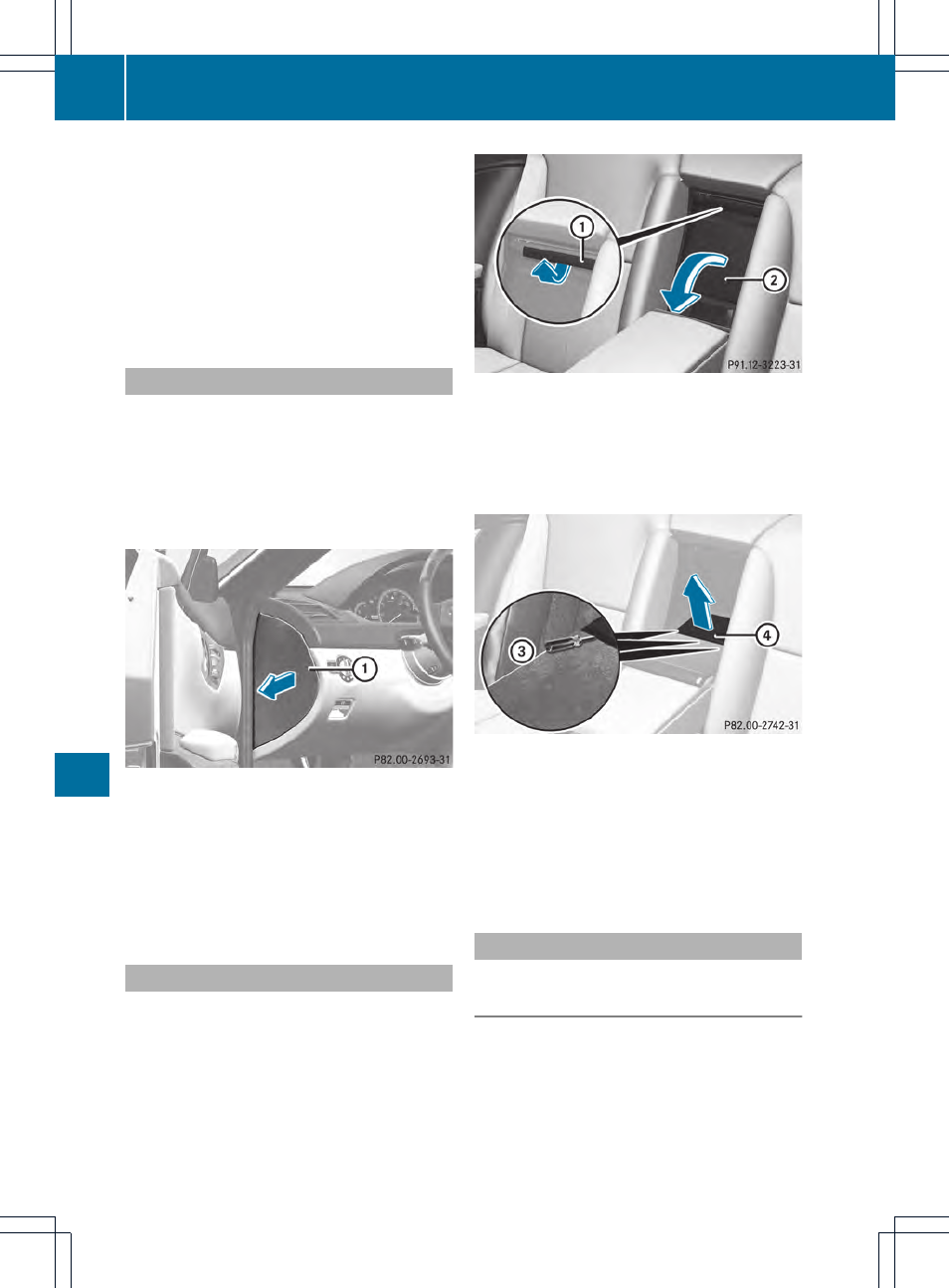

Dashboard fuse box
There is a fuse box located on both the
driver's side and the front-passenger side.
!
Do not use a pointed object such as a
screwdriver to open the cover in the
dashboard. You could damage the
dashboard or the cover.
Driver's side illustrated
X
To open: pull cover : outwards in the
direction of the arrow and remove it.
X
To close: clip in cover : on the front of
the dashboard.
X
Fold cover : inwards until it engages.
Fuse box in the rear
The fuse box is behind the armrest in the rear.
X
To open: fold down the armrest.
X
Pull handle : on the trim behind the rear
seat armrest up in the direction of the
arrow.
X
Fold down trim ;.
X
Loosen cover ? with a suitable object =.
X
Remove cover ? upwards in the direction
of the arrow.
!
The cover must be seated properly,
otherwise moisture or dirt could impair the
function of the fuses.
Fuse box in the engine compartment
Fuse box on the left in the direction of
travel
X
Open the hood (
Y
page 418).
