USB Interface
JRexplus LX User's Guide

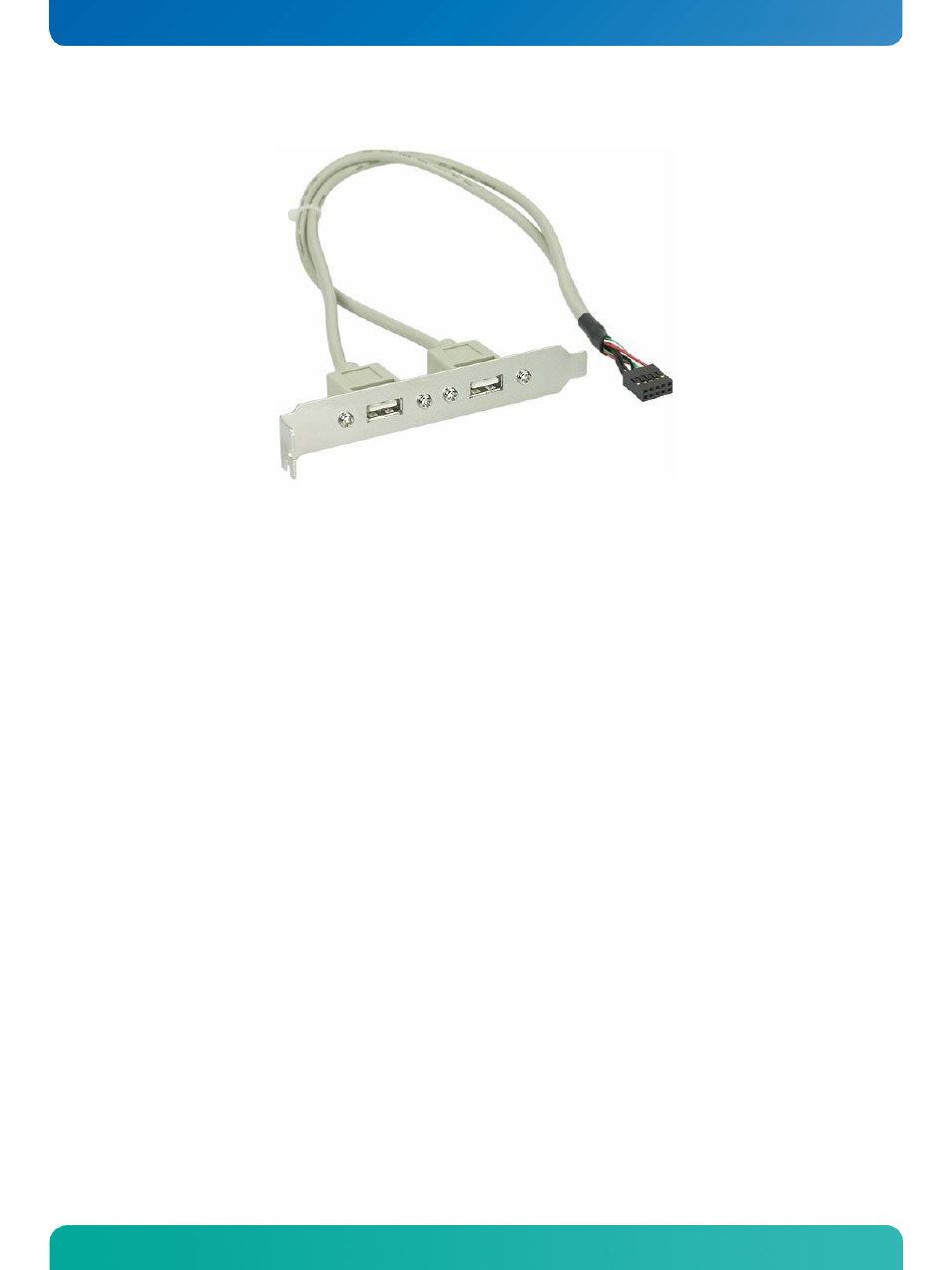

The following picture shows the KONTRON USB slot adapter (USB Bracket, part number 821401).
11.3 Limitations
The power contacts for USB devices on pin 1 and pin 4 respectively pin 1/2 and pin 7/8 are protected. They
are suitable to supply connected USB devices with a maximum input current of 500mA. Do not supply
external USB devices with higher power dissipation through these pins.
