KTD-S0001-C Page 22 USB Interface
JRexplus LX User's Guide
11 USB Interface
The USB interface comes with four USB ports which follow the OHCI/EHCI specification and are USB 2.0
compliant. You can expand the amount of USB connections by adding external hubs. Two ports are avail-
able on a standard connector and two more ports on a pin strip.

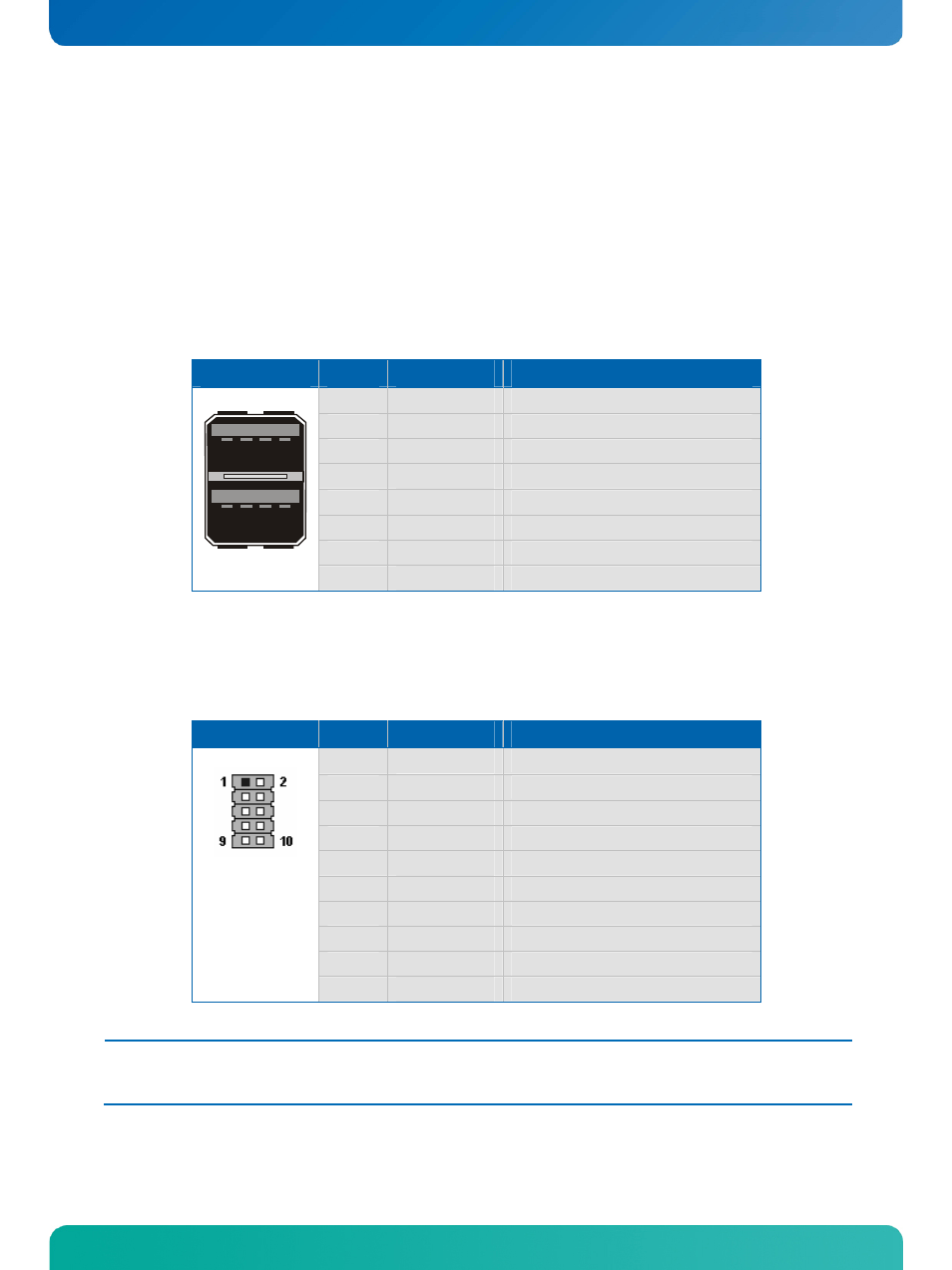

11.1 Standard Connector
Two USB ports are available through the standard USB connector X12 (8 pins).
Header Pin Signal Name Function
1 VCC 1) Power +5V
2 USB0- USB port 0 (negative)
3 USB0+ USB port 0 (positive)
4 GND Ground
5 VCC 1) Power +5V
6 USB1- USB port 1 (negative)
7 USB1+ USB port 1 (positive)
1
5
8 GND Ground
11.2 Extension Connectors
The other USB ports are available through the standard pin strip connector X13 (10 pins).
Header Pin Signal Name Function
1 VCC 1) Power +5V
2 VCC 1) Power +5V
3 USB2- USB port 2 (negative)
4 USB3- USB port 3 (negative)
5 USB2+ USB port 2 (positive)
6 USB3+ USB port 3 (positive)
7 GND Ground
8 GND Ground
9 KEY (N.C.) Key pin
10 GND Ground
Note: 1) To protect the external power lines of peripheral devices make sure that
- the wires have the right diameter to withstand the maximum available current.
- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.
