Page 19: Power consumption 3.7

KT690 Family
KTD-00738-J
Public User Manual
Date 2012-06-01
Page
19
Power Consumption
3.7
In order to ensure safe operation of the board, the ATX power supply must monitor the supply voltage and
shut down if the supplies are out of range – refer to the hardware manual for actual power specification.
The KT690/mITX and KT690/mITX-FW board is powered through the ATX connector and the additional 12V
separate supply for CPU as specified in the ATX specification; besides this the power supplied to the board
must be within the ATX specification.
The requirements to the supply voltages are as follows:
Supply
Min
Max
Note
Vcc3
3.14V
3.46V
Should be
±5% for compliance with the ATX specification
Vcc
4.75V
5.25V
Should be
±5% for compliance with the ATX specification
+12V
11.4V
12.6V
Should be
±5% for compliance with the ATX specification
–12V
–13.2V
–10.8V
Should be
±10% for compliance with the ATX specification
-5V
-5,50V
-4.5V
Not required for the KT690/mITX board
5VSB
4.75V
–5.25V
Should be
±5% for compliance with the ATX specification
Static Power Consumption
The power consumption of the KT690/mITX and KT690/mITX-FW Board is measured under:
1- WindowsXP, Running 3DMARK & CPU BURN, mean
2- WindowsXP, Running 3DMARK & CPU BURN, peak
3- S1, mean
4- S3, mean
5- Inrush, peak

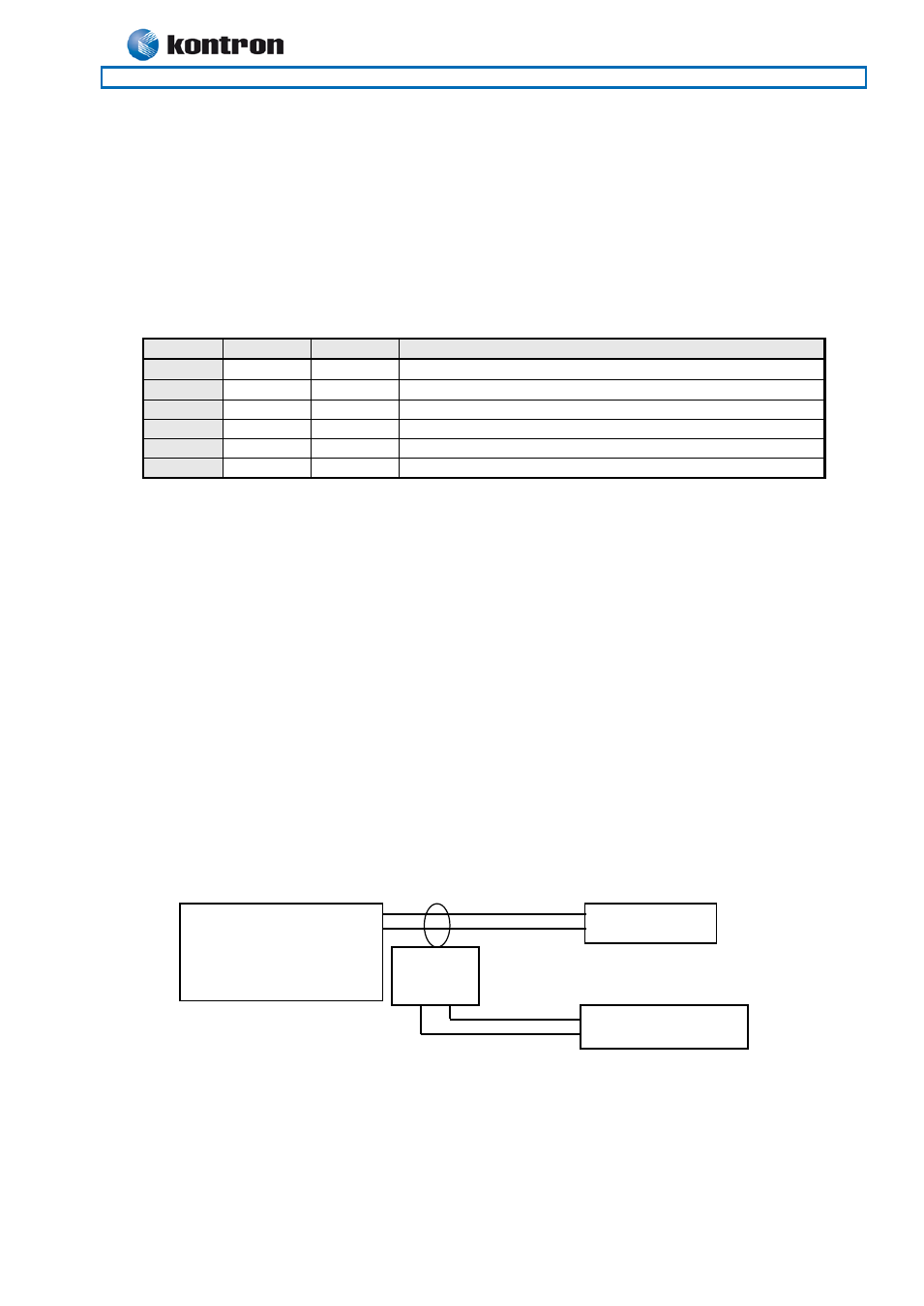

Test setup
The following items were used in the test setup:
1. KT690/mITX board
2. 12V active cooler
3. PS/2 keyboard & mouse, CRT, HD, ATX PSU
4. Tektronix TDS 7404, P6345 probes
5. Fluke Current Probe 80i-100S AC/DC
Note: The Power consumption of CRT, HD and Fan is not included.
ATX supplies
KT690/mITX
PSU
Gnd
Current
Probe
Tektronix TDS 7404
