25

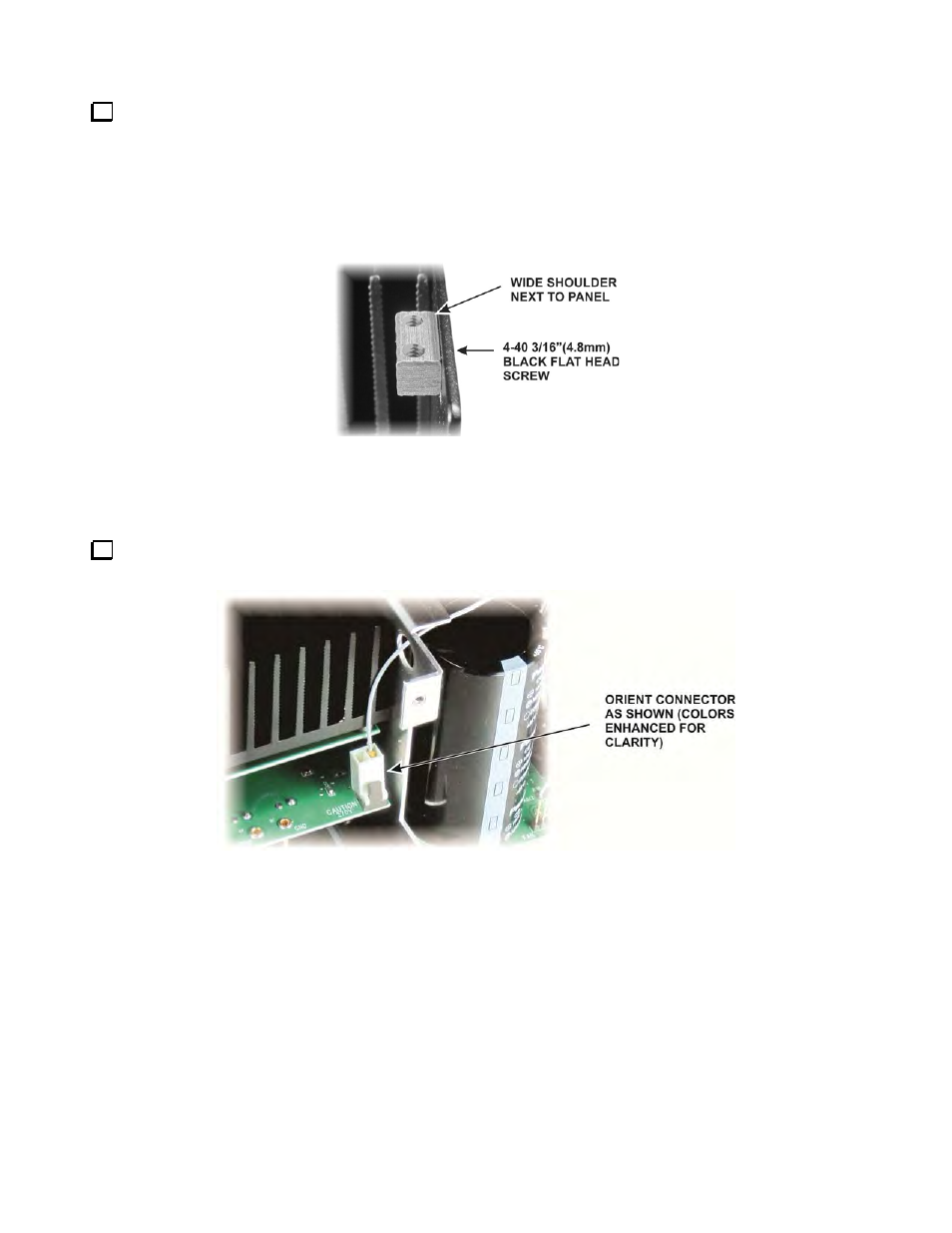

Set the KPA500 on its bottom feet and install a 2D fastener in the holes near the top and front and back of
the right side panel as shown in Figure 33.
Note:
When you are finished there should be three open holes in the side panel. One hole is near the top center
that will be filled when the top cover is installed, and two larger holes where you will install the handle later.
Leaving the handle off now makes it easier to stand the unit on that side, if desired, while connecting the internal
power supply wiring in the following steps.
Figure 33. Installing Right Side Panel 2D Fasteners.
Mounting the Rear Panel Assembly
Connect the 270V wire from the power supply module to the PA/LPF module as shown in Figure 34. This
is the connector you routed through the hole in the Z-bracket earlier.
Figure 34. Connecting the 270V Wire to the PA/LPF Module.
