Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 5

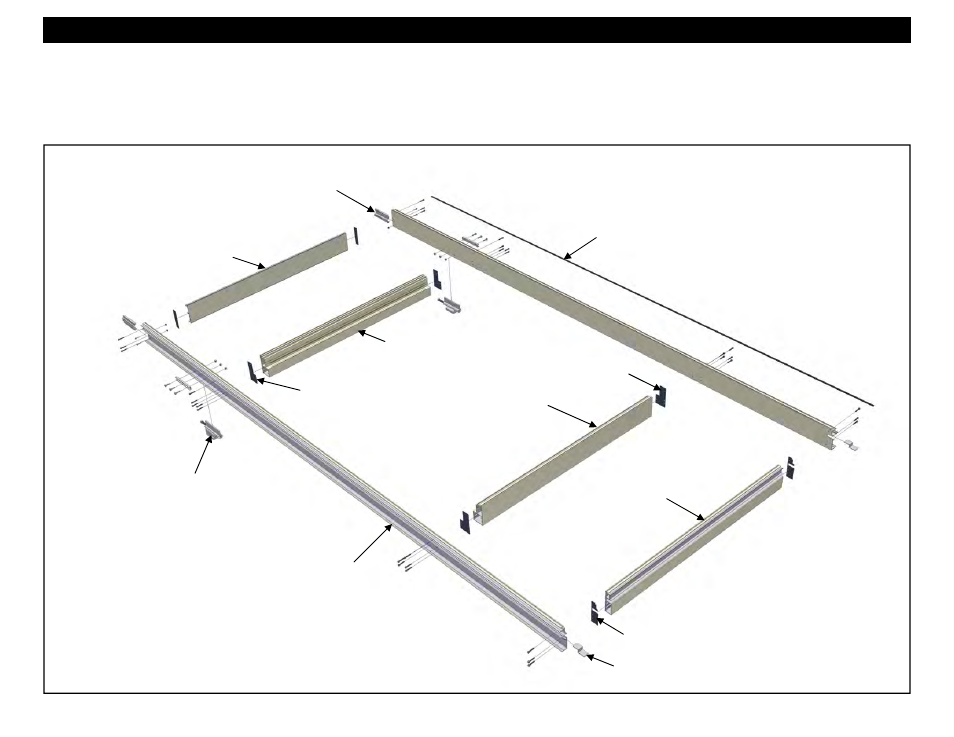

Figure 1
1. Assembly the concealed vent unit frame. Refer to Volume 1 and Volume 2 of the S-8000 Unitized Curtain Wall Assembly Instructions for assembly details as
noted below.
Section 18 - Frame Assembly - Vent at Fixed Horizontal
Refer to Volume 1, Page 32 - 33
for anchor assembly and
application.
Refer to Volume 1, Page 34 for
frame assembly.
Refer to Volume 1, Page 29 - 30
“Z” clip installation.
Refer to Volume 1, Page 26 for
mullion gasket installation.
Stack Sill
Refer to Volume 1, Page 27 - 28
for Frame Pad application.
Stack Head
Refer to Volume 1, Page 35 for
Mullion Splice Bar application.
17K2 Concealed
Vent Horizontal
17K2 Concealed
Vent Horizontal
H11B Frame Pad
Refer to Volume 1, Page 27 - 28
for frame pad application.
H11B Frame Pad
Refer to Volume 1, Page 28 - 29
for frame pad application.
