Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 5
Section 31 - Gasket Application and Hardware Mounting On Vent Frame

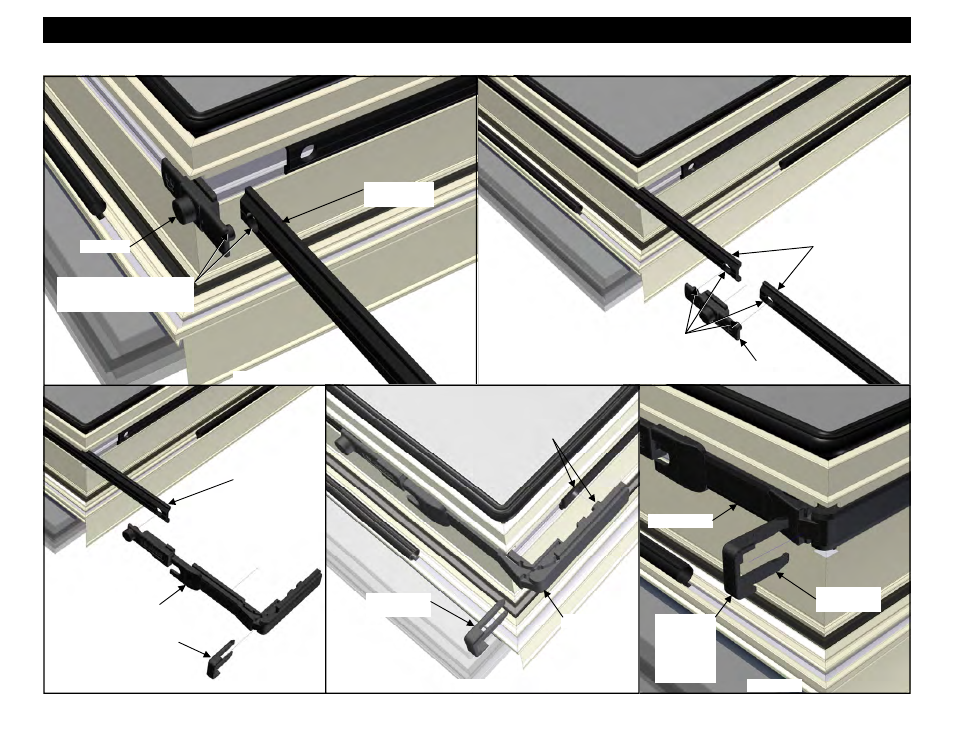

Jamb Linkage
Strut
Lock Pawl
Lock Pawl
Jamb Linkage
Struts
Corner Drive
Corner Drive
Corner Drive
Corner Drive
Retainer Clip
Corner Drive
Retainer Clip
Corner Drive
Retainer Clip
Align the stud in the corner
drive with the hole in the
strut and mate the corner
drive and strut together.
Jamb Linkage
Strut
Insert lock pawl studs into holes in
the struts and slide into reglet in
vent jamb sash.
Insert lock the pawl stud into
the hole in the strut and slide
into reglet in vent jamb sash.
Insert the
corner drive
retainer clip
into the
corner drive
and reglet.
Figure 216
Figure 217
Figure 218
Figure 219
Figure 220
