EFCO 8800 Series Assembly Instructions Vol.5 User Manual
Page 11

EFCO 2009
Page 11
Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 5
Figure 3
Section 18 - Frame Assembly - Vent at Fixed Horizontal
Figure 4
Figure 6
Figure 5

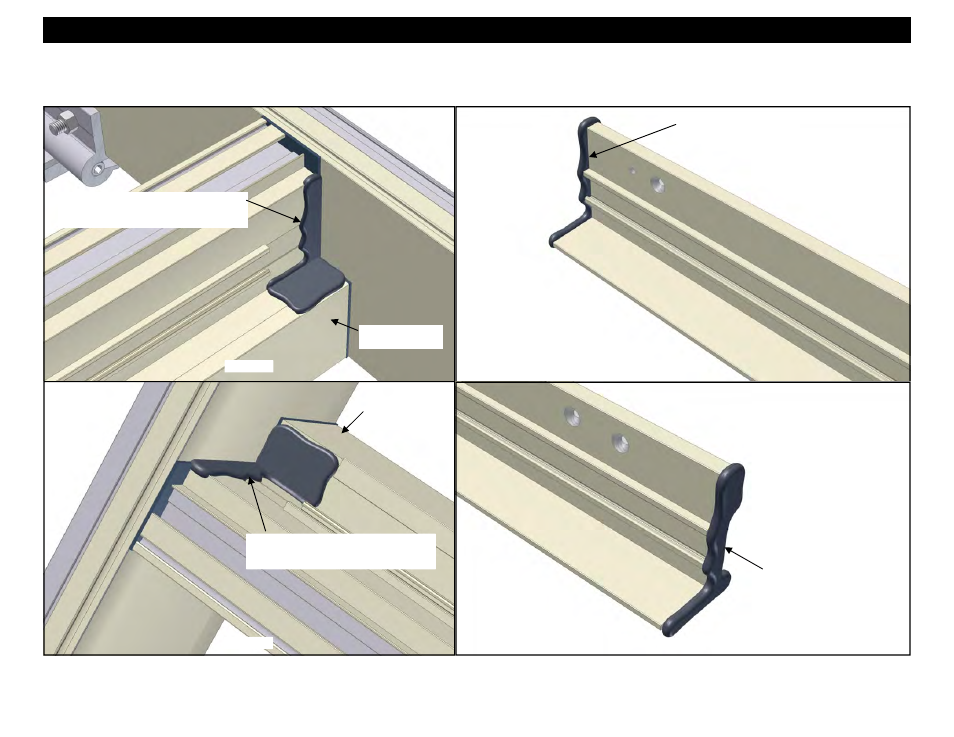

Apply sealant at the intersection of the
vent horizontals and the verticals where
the ends of the jamb adapter will abut.
Apply sealant to each end
of the jamb adapters.
Apply sealant at the intersection of the
vent horizontals and the verticals where
the ends of the jamb adapter will abut.
Apply sealant to each end
of the jamb adapters.
17K2 Concealed
Vent Horizontal
17K2 Concealed
Vent Horizontal
