EFCO 8800 Series Assembly Instructions Vol.5 - Manual (Page 21)

EFCO 2009 Page 21
Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 5
Section 22 - SSG Vent Unit Glazing at Fixed Horizontal : A. Temporary Glazing Locators

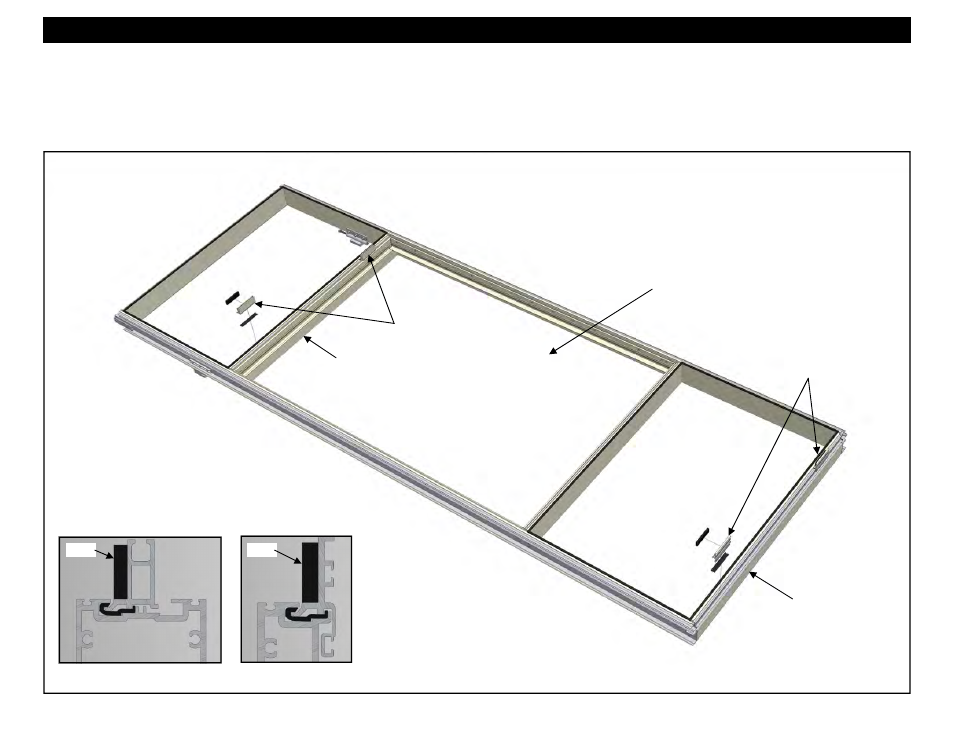

Figure 27
1. Apply two temporary glazing locators (KV01 and KV02) with isolators and setting blocks at approximate quarter points at the sill and intermediate horizontal
locations.
2. Refer to Volume 2, page 8 and 9 of the S-8000 Unitized Curtain Wall Assembly Instructions for assembly details and notes.
Temporary Glazing
Locators (KV02)
Temporary Glazing
Locators (KV01)
HEAD
SILL
Concealed Vent
opening
Intermediate Horizontal Stack Sill
Intermediate
Horizontal
Stack Sill
KV01 KV02
