Prox.pad Installer Guide
Document # 6-055678 X2
Page 27 of 32
Wiring the Secured Series Front End
You can connect the prox.pad as a front end to an IEI Secured Series Door Control Module by following the diagram
below. Using connector P3 on the prox.pad, connect the white wire to the Secured Series DCM’s white/yellow wire or
the white/yellow terminal strip and connect the green wire to the white/black wire or white/black terminal strip on the
Secured Series DCM.

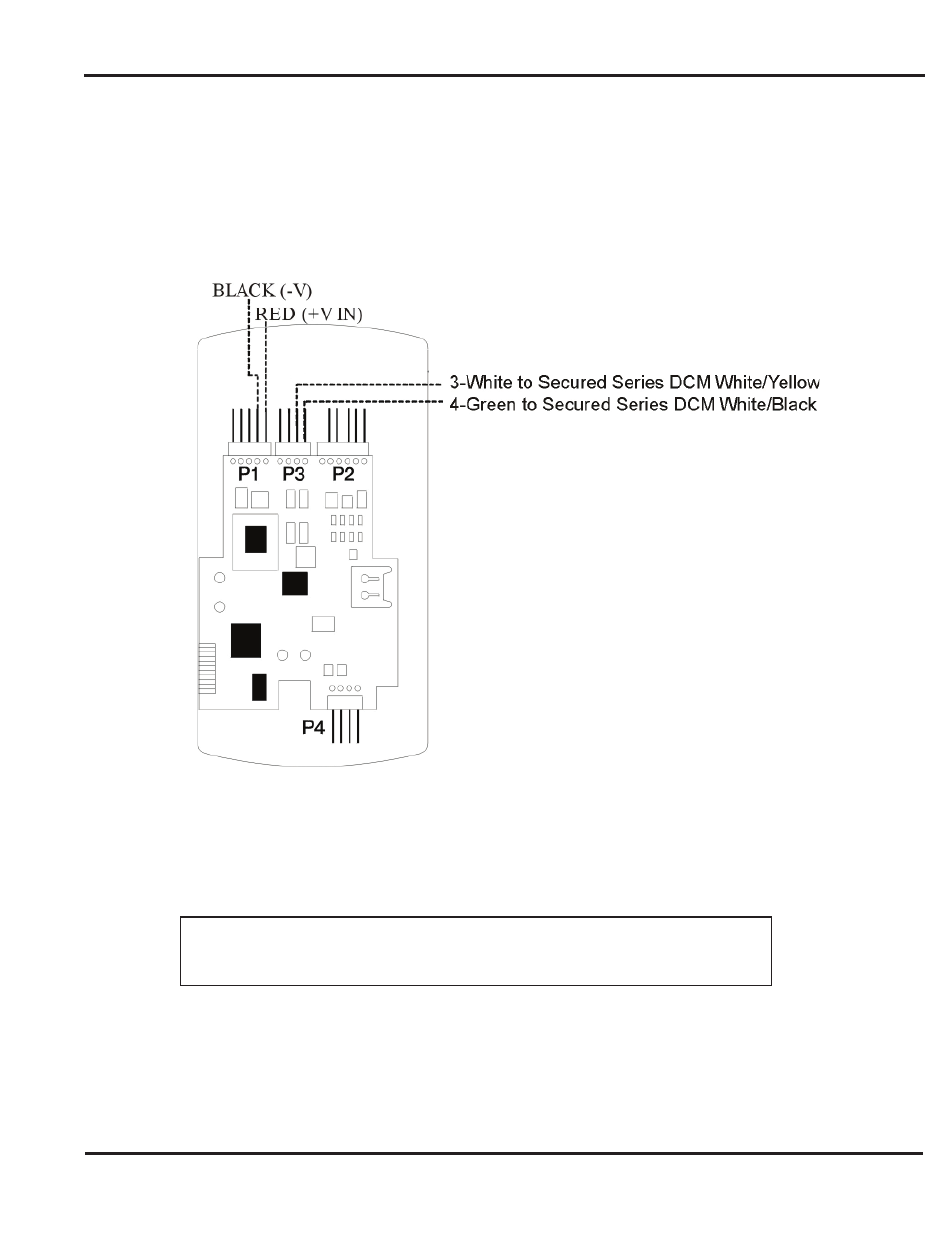

Figure 16: Connecting the prox.pad to a Secured Series DCM
Use ALPHA 1295c (22AWG) 4-wire, stranded and shielded cable. The cable shield
drain wire must be grounded at the reader end to P1, pin 4 connection (DC Power
Supply Ground)
