Wiring a wiegand front end – Detex DTX-2300 User Manual
Page 24
Prox.pad Installer Guide
Document # 6-055678 X2
Page 24 of 32
Wiring a Wiegand Front End
The following section shows how to wire the prox.pad to a Wiegand control panel. If you require further information on the
Wiegand panel connections please refer to the instructions that came with the panel.

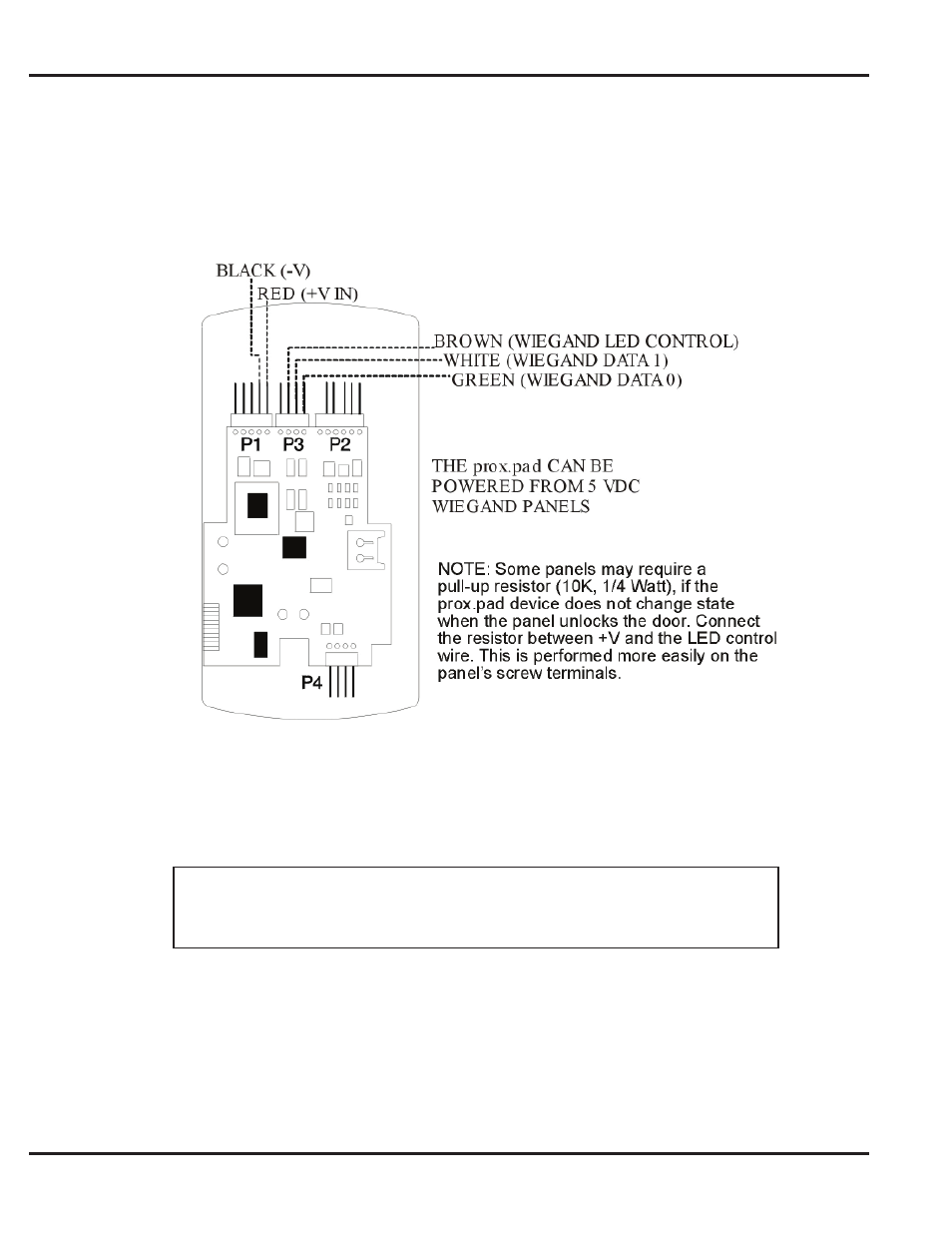

Figure 15: Connecting the prox.pad to a Wiegand Panel
Use ALPHA 1295C (22AWG) 4 - wire, stranded and shielded cable. The cable shield
drain wire must be grounded at the reader end to P1, pin 4 connection (DC Power
Supply Ground).
