Prox.pad Installer Guide
Document # 6-055678 X2 Page 12 of 32
Inserting Circuit Boards
If you must remove or insert the main circuit board from/into the prox.pad controller/keypad, follow the steps below.
1. Disconnect the back housing of the prox.pad unit from the front keypad/controller.
2. When handling the main printed circuit board, to guard against possible static discharges, hold the board
by its edges with one hand and then touch a grounded object before touching the prox.pad unit. Remove
the main printed circuit board by pressing the two spring tabs in the direction of the arrows as shown in Figure 5.
Be careful with the wires.
3. Fold up the main circuit board and remove the P4 connector (a 4-conductor harness) from the bottom of the
board.
4. To re-insert, replace the main circuit board into the keypad/controller and the P4 connector to the main circuit
5. Connect the keypad/controller to the back housing.

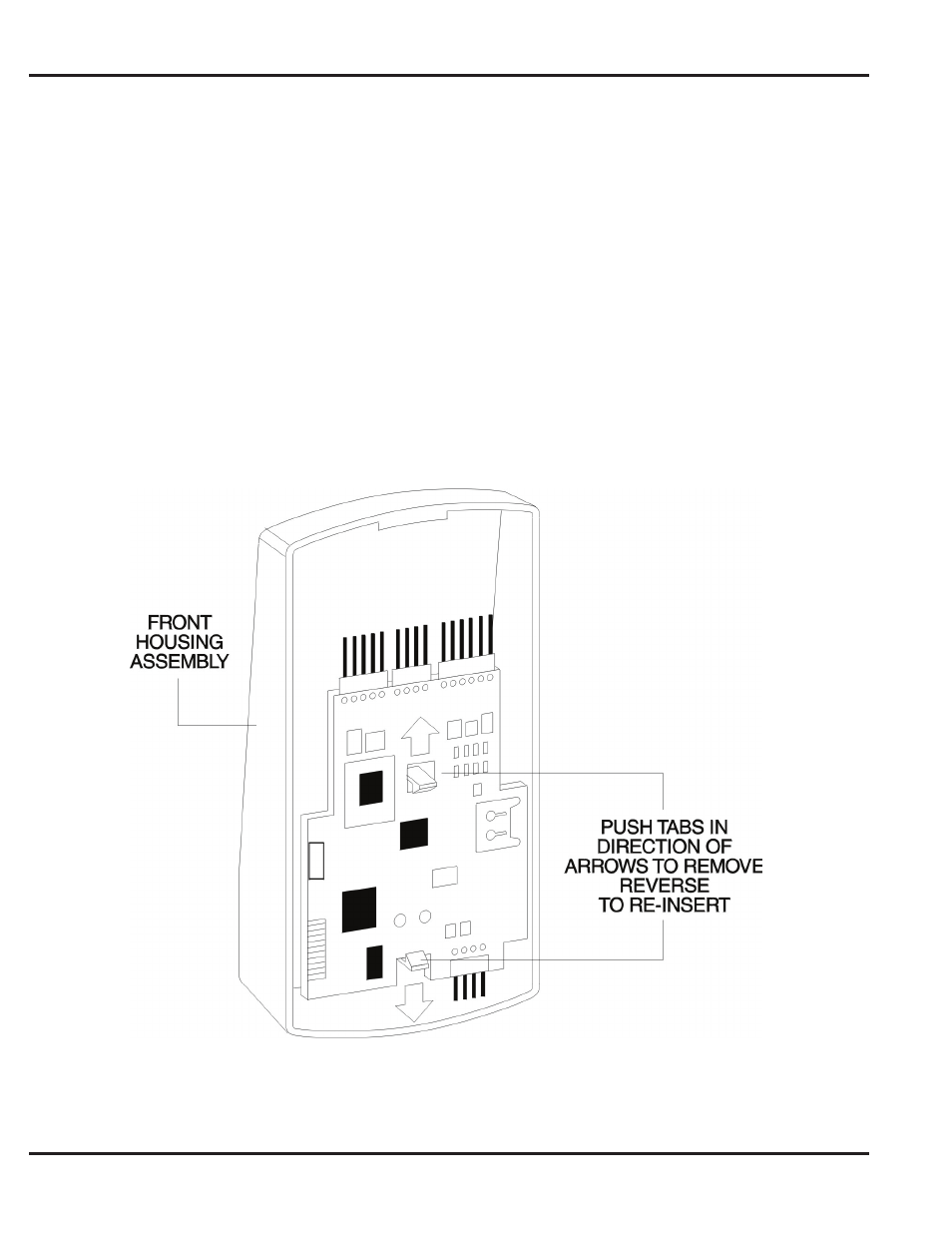

Figure 6: Removing/Inserting Printed Circuit Board
