Detex V50 EE User Manual
Page 7

NOTE: BOTTOM BRACKET IS
NON-HANDED AND MAY BE USED
FOR RHR AND LHR APPLICATIONS
FIG. 7B

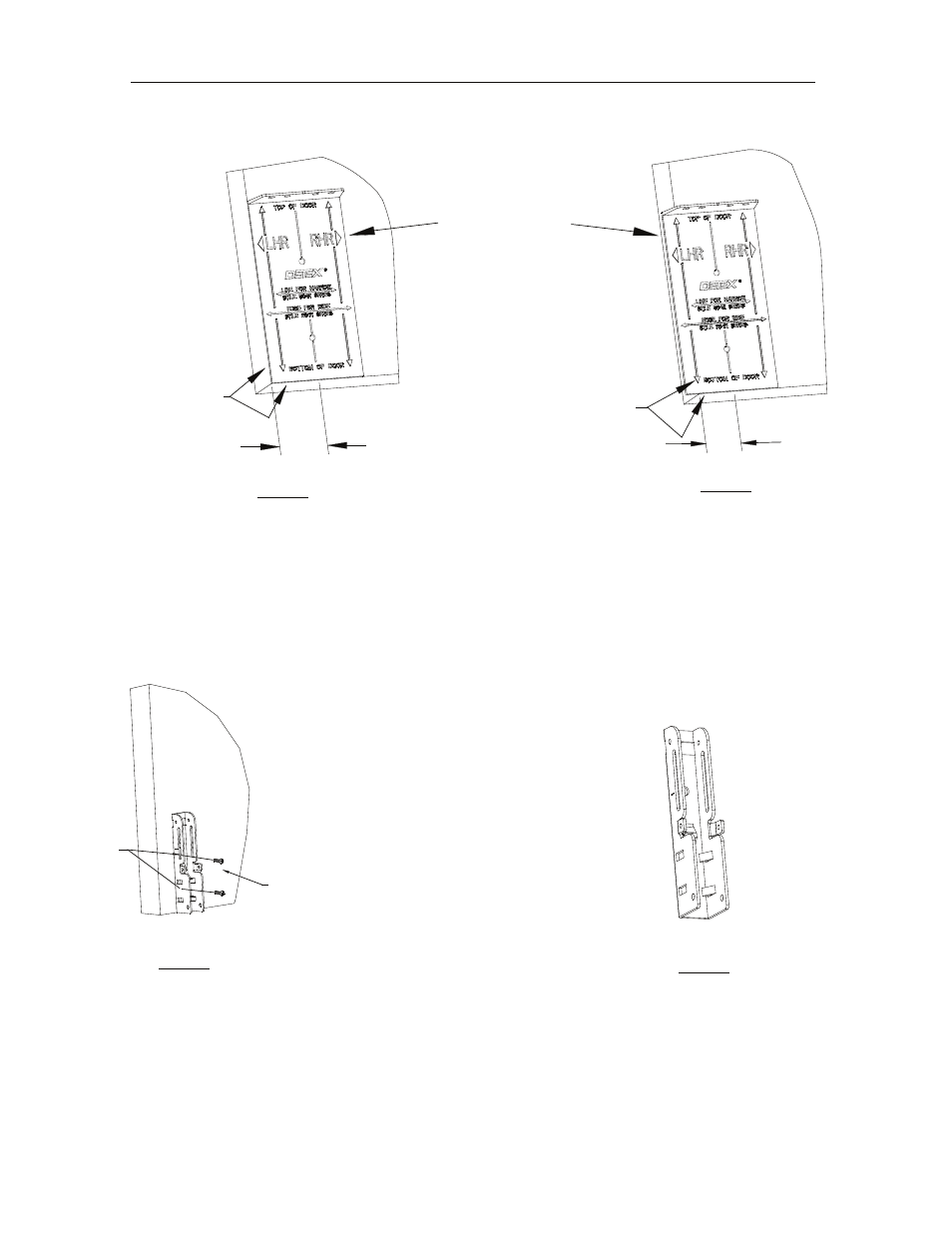

Drill holes for bottom bolt bracket (see fastener
table)
FIG. 7A
Bottom
holes
Install bottom bolt bracket with mounting
screws provided. Use #7 drill for 1/4-20
machine screw or #14 self drilling screw.
For sex nuts drill 3/8" holes.
(see Fig. 7B)
Same locator used
for top latch
Align locator ARROWS
with door edge and
bottom of locator with
bottom of door, or top of
threshold if threshold
overlaps bottom edge of
door
FIG. 6A
WIDE STILE
Locator placement
NARROW STILE (NS)
Locator placement
NOTE: IF TRO DEVICE, SKIP THIS PAGE AND CONTINUE WITH INSTALLATION
1-1/2" from
edge of door
(* 2" with tab)
1-1/16" from
edge of door
FIG. 6B
NOTE: IF OPTIONAL BOTTOM BOLT GUARD
WILL BE USED, AN ADDITIONAL MOUNTING
BRACKET IS REQUIRED. SEE BOTTOM BOLT
GUARD INSTALLATION INSTRUCTIONS.
Align locator EDGE with
door edge and locator
bottom with bottom of door
or top of threshold if threshold
overlaps bottom edge of door.
104832 Page 7
