NORMAL OPERATION
NUISANCE DELAY
EXITING UNDER ALARM
BATTERY BACKUP FOR ALARM
Turn Key CW To Disarm
Red LED while alarming
ARMING AND AUTHORIZED EXIT
DISARMING
Glowing Green LED
Turn Key CCW To Arm
DELAYED EGRESS OPERATIONS
With door closed, insert key in the cylinder, turn CCW, then back to the home key position and remove it. LED glows
green. Authorized personnel can exit the door during the arming delay. After a 1, 5 or 15
second arming period, alarm issues three quick beeps and LED goes off, indicating that the unit is armed.
Insert key, turn CW to a stop. Green LED will blink twice to indicate the unit is disarmed.
To exit, push and maintain pressure on the pushpad. After a one-second delay, (nuisance delay), LED flashes RED
and alarm pulses on and off for 15 seconds. After 15 seconds, alarm issues short and long pulses to indicate that
one can exit by depressing the pushpad.
Alarm sounds continuously and LED is steady RED. Turn key CW to stop alarm. In case of fire, the fire alarm
over-rides the 15 second delay and the door opens without delay when the pushpad is pushed.
A 9-volt battery is included as a backup power source for the alarm siren if power is lost.
To disable low battery indication, slide the DisLoBat switch to 'ON'. See page 16 for location.
LOW BATTERY INDICATION
If battery voltage is low(7 volts or less), unit remains armed but LED flashes RED and unit beeps twice every
45 seconds. Replace battery as soon as possible.
Indicates the unit is in process of arming. The siren will chirp three times to indicate the unit
is armed and green LED will turn off
DOUBLE BLINK DOUBLE CHIRP OFF
LED COLOR
SLOW BLINKING
FAST BLINKING
ON
ON
OFF
RED
OFF
Pushpad is depressed, delay to open started
This indicates either armed or disarmed
Delay to open expired, door has been opened ON
SLOW PULSE
FAST PULSE
OFF
OFF
OFF
ON
OFF
SIREN SOUNDS
THREE CHIRPS
GREEN
ON
FUNCTION
BLINK
BLINK
OFF
OFF
Low Battery - every 45 seconds
Delay to open expired
Factory installed jumper removed from 3 & 4 terminals
Armed - status ON
Disarmed - status ON
PushPad

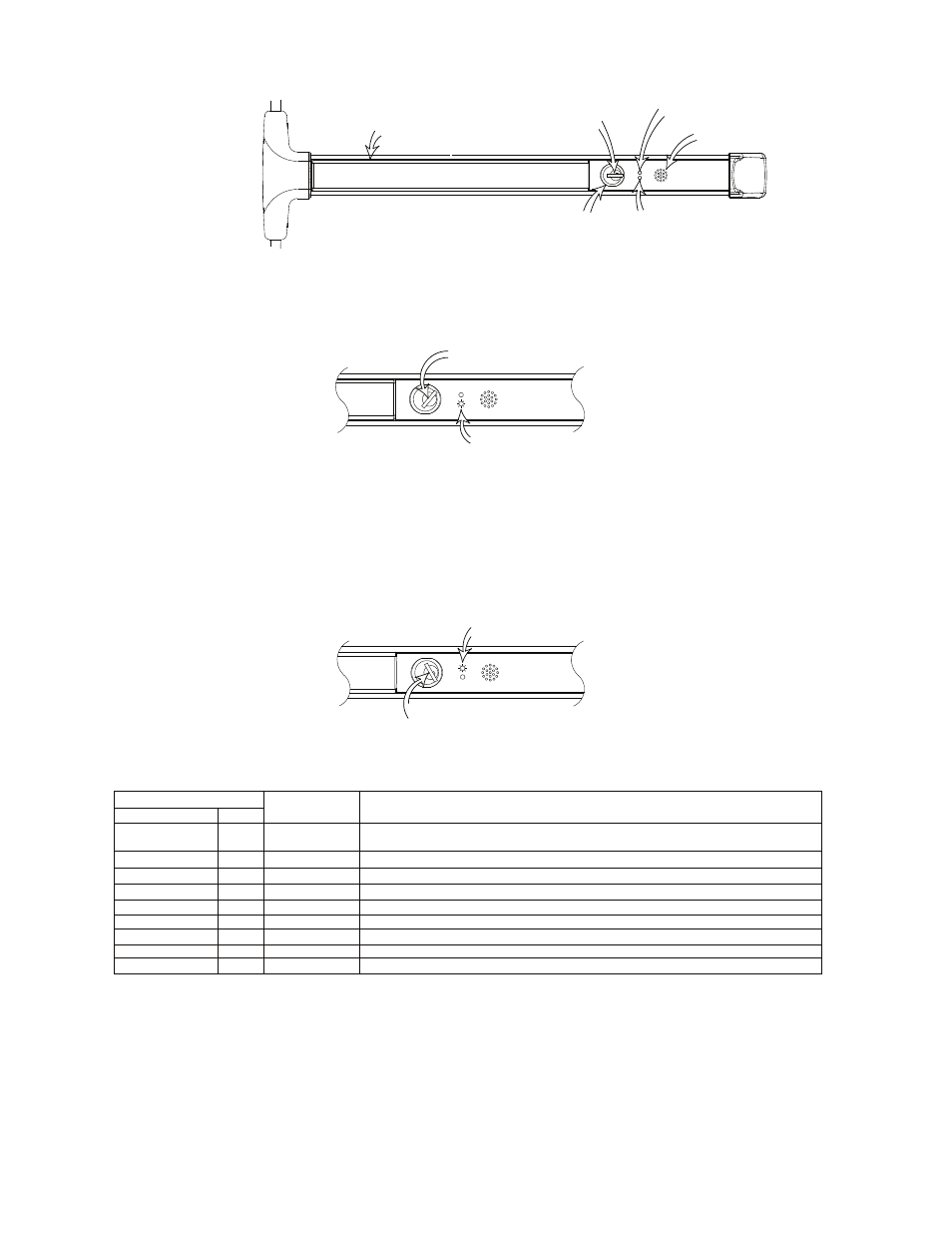

Home
Key
Position Red LED
Siren
Green LED Mortise
Cylinder
(LHR shown)
When pushpad is depressed for less than 1 second, alarm will emit a single pulse but will not start delay function.
