Detex V50 EE User Manual
Page 13

104832 Page 13
Thread 1/4-20 X 1"
hexbolt into rod a
MINIMUM of 1/2"
5/8" BOLT
ENGAGEMENT
Finished
Floor
NOTE: IF TRO DEVICE, SKIP THIS PAGE AND CONTINUE TO PAGE 15

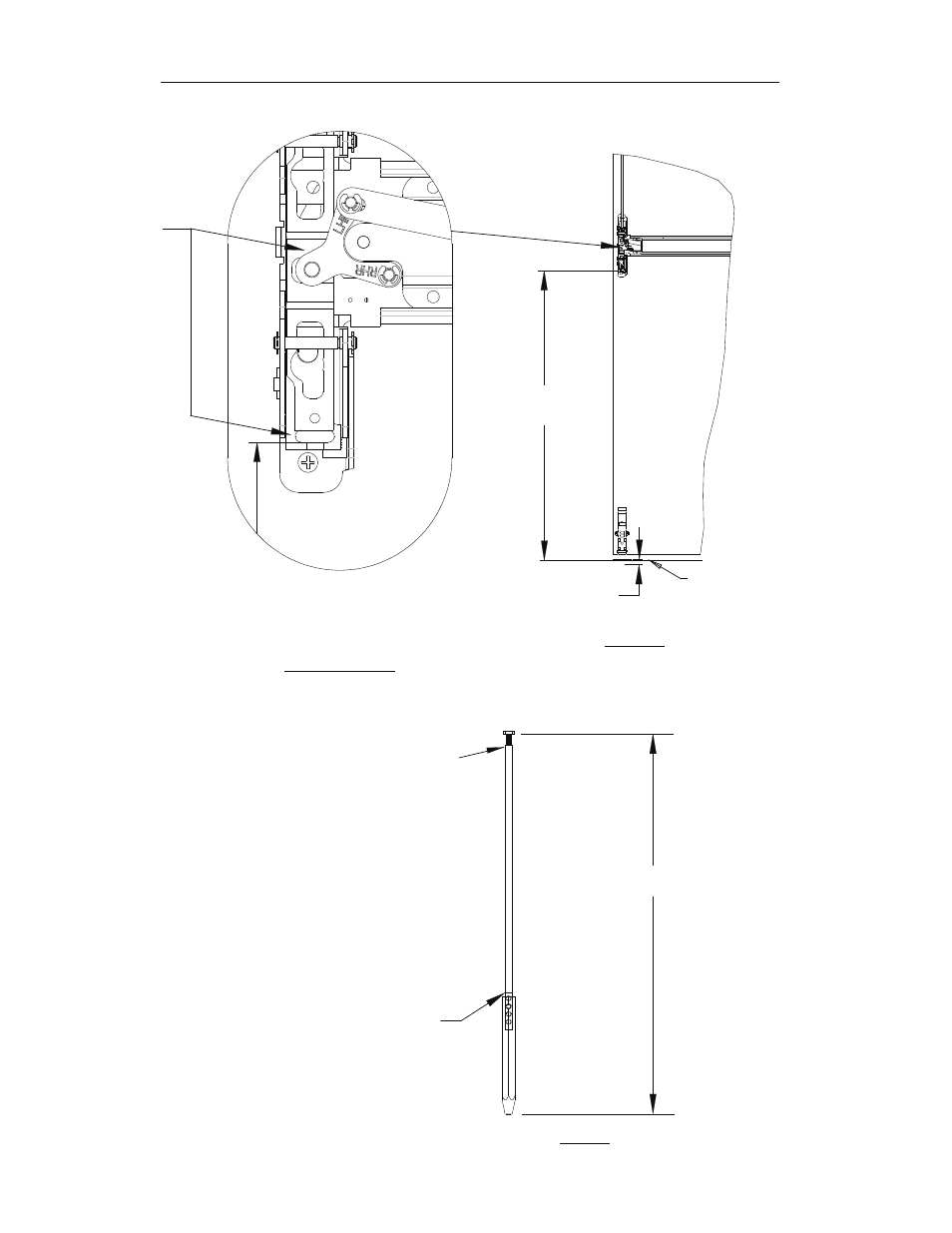

To establish bottom rod length,
measure the distance from the slot
in the carriage to the floor or
threshold (XX") and add 5/8".
XX"
( Approx. 37 3/4"
Example)
Insert rod into bottom bolt.
Align holes in rod and bolt that will result in
overall length closest to dimension needed.
Adjust threaded hexbolt at opposite end of
rod for fine adjustment of length.
Mark location on rod where it meets the bolt
and/or tape bolt in position.
FIG. 10B - Detail
FIG. 10B
FIG. 11
XX + 5/8" Example
NOTE position
