Correct handing of device – Detex V50 EE User Manual
Page 11

104832 Page 11
Right Hand Reverse (RHR)
NOTE:
If link is not in uppermost position on the centerlift, carefully remove "E" clips and reposition link
on top pin of the centerlift and replace "E" clips. (An additional "E" clip is provided on opposite link pin.)
Verify carriage moves up and down smoothly when pushpad is depressed and released.
NOTE: LINK SHOULD ALWAYS BE IN TOP POSITION

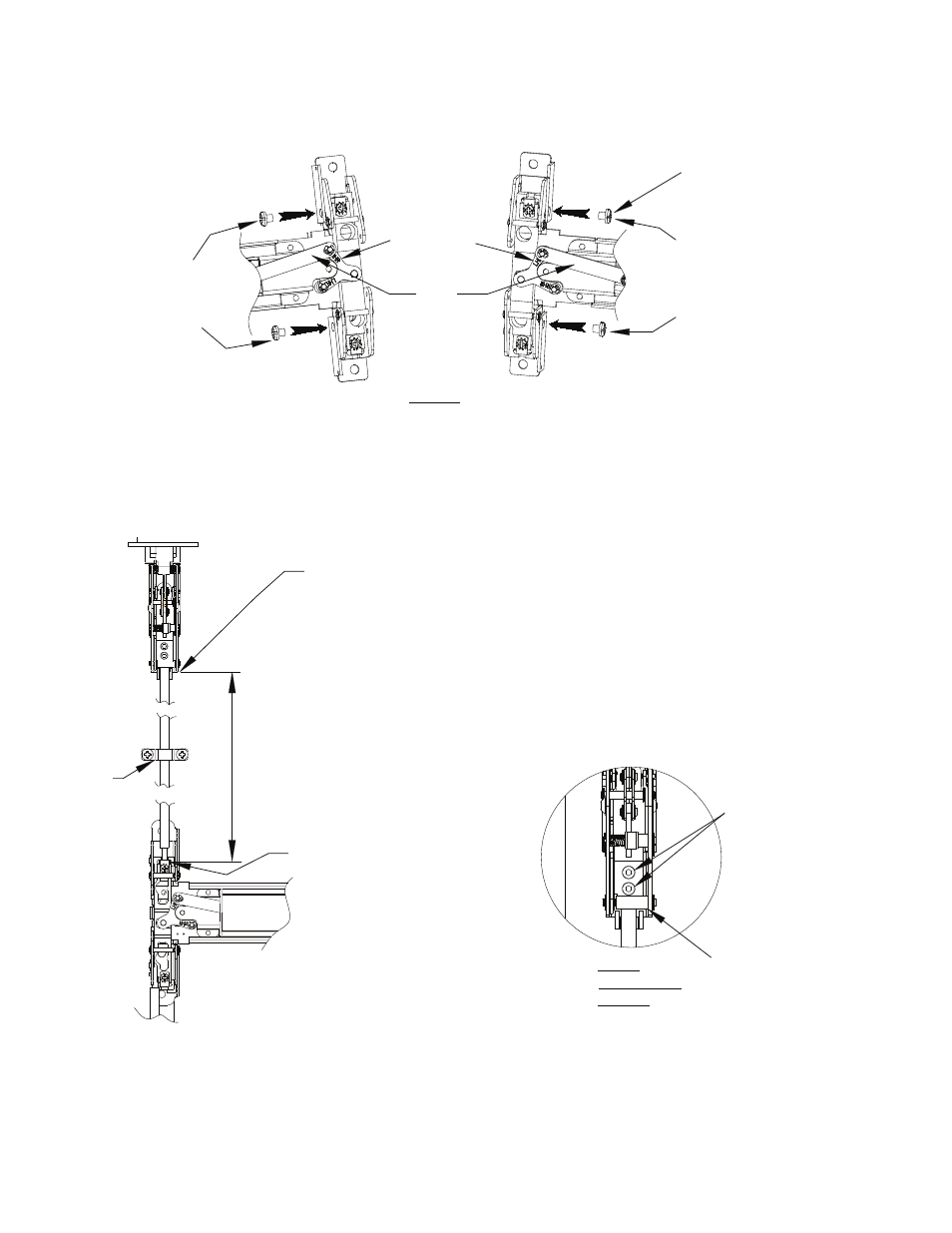

1. Top rod may require cutting if centerline of
device is over 40" from finished floor, or if a
non-standard frame is used.
2. To determine rod length: Undog device
and measure the distance from the bottom
edge of the top latch bracket to the top of the
rod carriage. Add 1 3/4" for the rod length.
Insert top rod into top latch
until it stops.
Tighten
setscrews FIRMLY
FIG. 9
TOP LATCH
DETAIL
In normal latched
position, rod
connector block
must rest on
plastic bumper
FIG. 8A
NOTE HANDING
INDICATOR ON
CENTER LIFT
LINK
NOTE: If removed, be sure
to replace screws after
adjustment.
These screws MUST be
used.
Left Hand Reverse (LHR)
CORRECT HANDING OF DEVICE
Bottom edge of
top latch
Rod
Guide
slot in
carriage
1/4 20 x 1/4"
Screws
P/N 101621-5
NOTE: If removed, be sure
to replace screws after
adjustment.
These screws MUST be
used.
