Fig. 1, A) (d) (a) – Detex V50 EE User Manual
Page 5

Drill holes.
Fasten using lockwashers and
screws provided. Use #7 for 1/4-20
machine screw or use #14 self drilling
screws. For sex nuts drill 3/8" holes.
(see fastener table)
-Recommended-
Mark centerline for
unit 40 inches from
finished Floor

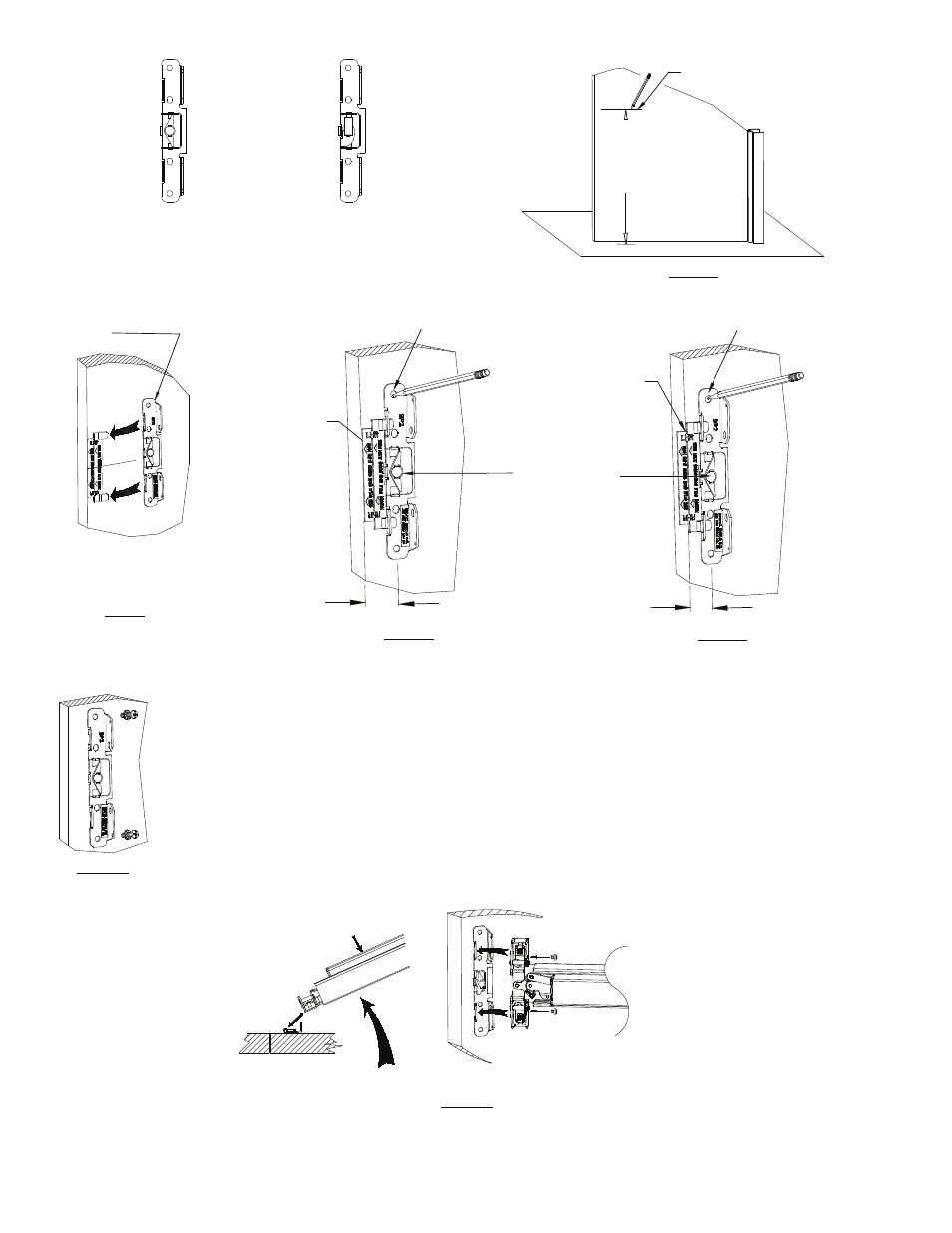

FIG. 1
MOUNTING PLATE FOR
USE WITH LEVER TRIM
Align
INSIDE
CORNER of
locator with
edge of door
Align
EDGE
of locator
with edge
of door
WIDE STILE INSTALLATION
Typical Installation Min. Stile 3 1/2"
NOTES:
1. IF OUTSIDE TRIM IS USED, REFER TO OUTSIDE TRIM
INSTRUCTIONS NOW.
2. Plastic locators are provided and shown in instructions.
Paper templates are also provided with vertical and horizontal centering.
3. Plastic locators are provided with an extra 1/2" flap to allow better
centering of the device on the stile or can be used when installing 1/2"
Astragal to give equal backset from the door edge.
FIG. 3A
Approx. 6 inches
NOTE:
Centercase mounting plate
& locator packed in carton
next to device
FIG. 2
NARROW STILE INSTALLATION (NS)
Aluminum Door Min. Stile 2"
FIG. 3B
(A)
If trim is used, peel
back label from cam,
mark (D) center hole
for tailpiece, replace
label
FIG. 3C
(D)
Mark 2 (A) holes for mounting
screws (1 top & 1 bottom)
Slide centercase mounting
plate in place on centercase
locator
Mark 2 (A) holes for mounting
screws (1 top & 1 bottom)
(A)
(A)
(D)
(A)
BP-2
P/N 100696-1
1-1/2" to edge
of door
(* 2" with tab)
1-1/16" to
edge of door
MOUNTING PLATE FOR
USE WITH 03 TRIM
Depress pushpad, install device
into mounting plate slots,
rotate toward door
Install device
Fasten rim device
to mounting plate
FIG. 3D
BP-8
P/N 100699
104832 Page 5
