Detex V50 EE User Manual
Page 6

Mark for 96
strike
Drill holes,
#7 for 1/4-20 machine screws,
and fasten with 1/4-20x1 PPH
machine screws or #14 self drilling
screws. For sex nuts drill 3/8" holes.
(see fastener table)
NOTE: Do Not use lock washer
NOTE: Top latch bracket, latch assembly
and cover are shipped as a unit.
Disassemble to obtain the respective parts
for installation

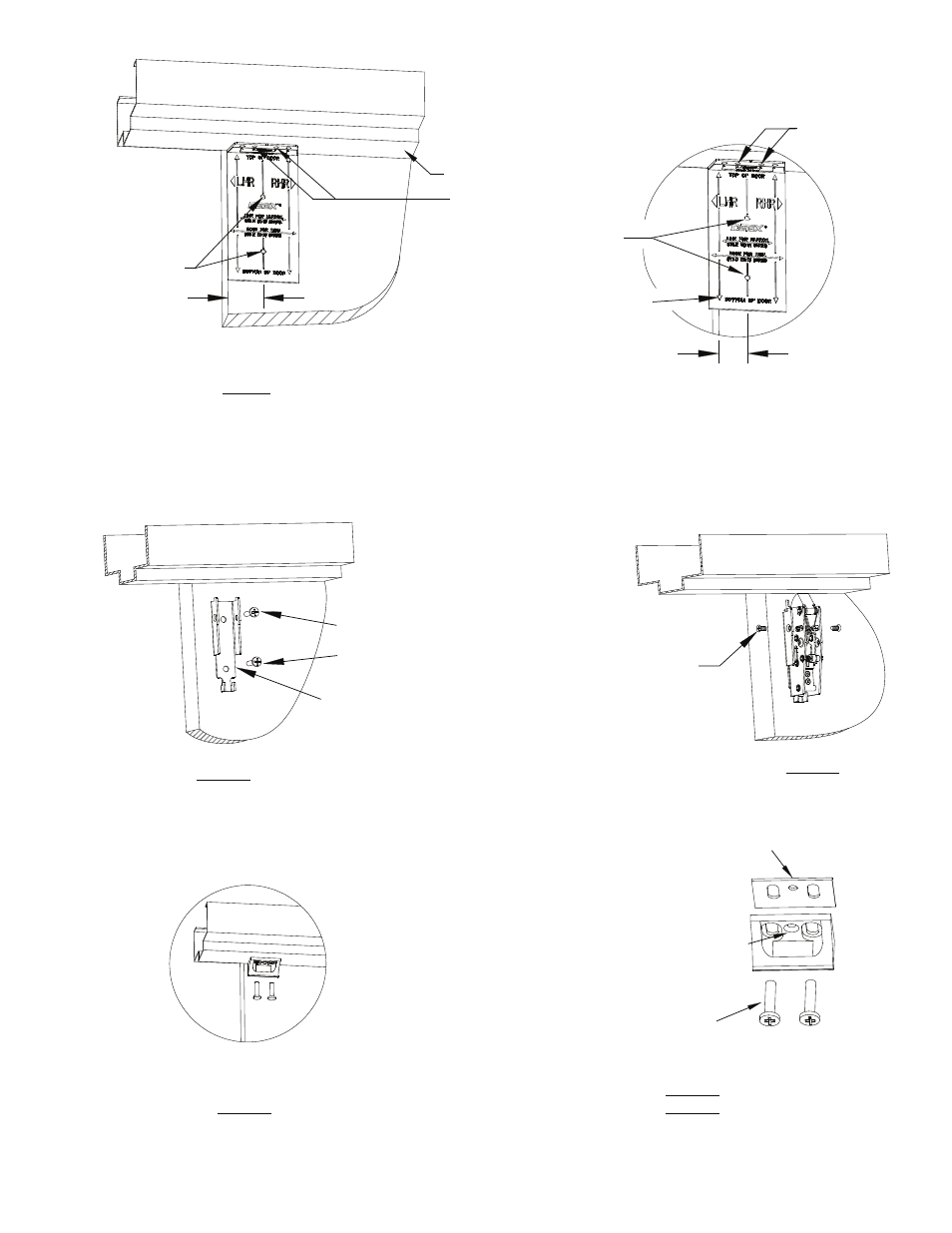

Install top latch bracket
FIG. 5A
10-32 x 5/16 PFH
Undercut machine screws
FIG. 5B
Left Hand Reverse shown
FIG. 4
Mark for top latch
WIDE STILE
Align latch/strike
locator with edge
of door
NARROW STILE (NS)
Align arrow line with edge of
door and frame header
Mark for 96 strike
Frame header
Drill holes,
#7 for 1/4-20 machine screws,
and fasten with 1/4-20x1 PPH machine screws
or #14 self drilling screws. (see fastener table)
SEE DETAIL
FIG. 5C
#10 Flat head undercut screw
added
AFTER final adjustment
(See Pg. 11
Adjustment/Troubleshooting
Note #4)
1/4-20 PPH machine screws
or #14 self drilling screws
Use shim if needed
96 Strike
FIG. 5C
DETAIL
96 Strike
Mark for top latch
1-1/2" from
edge of door
(* 2" with tab)
1-1/16" from
edge of door
(Used for Narrow (NS)
AND Wide Stile installations)
104832 Page 6
