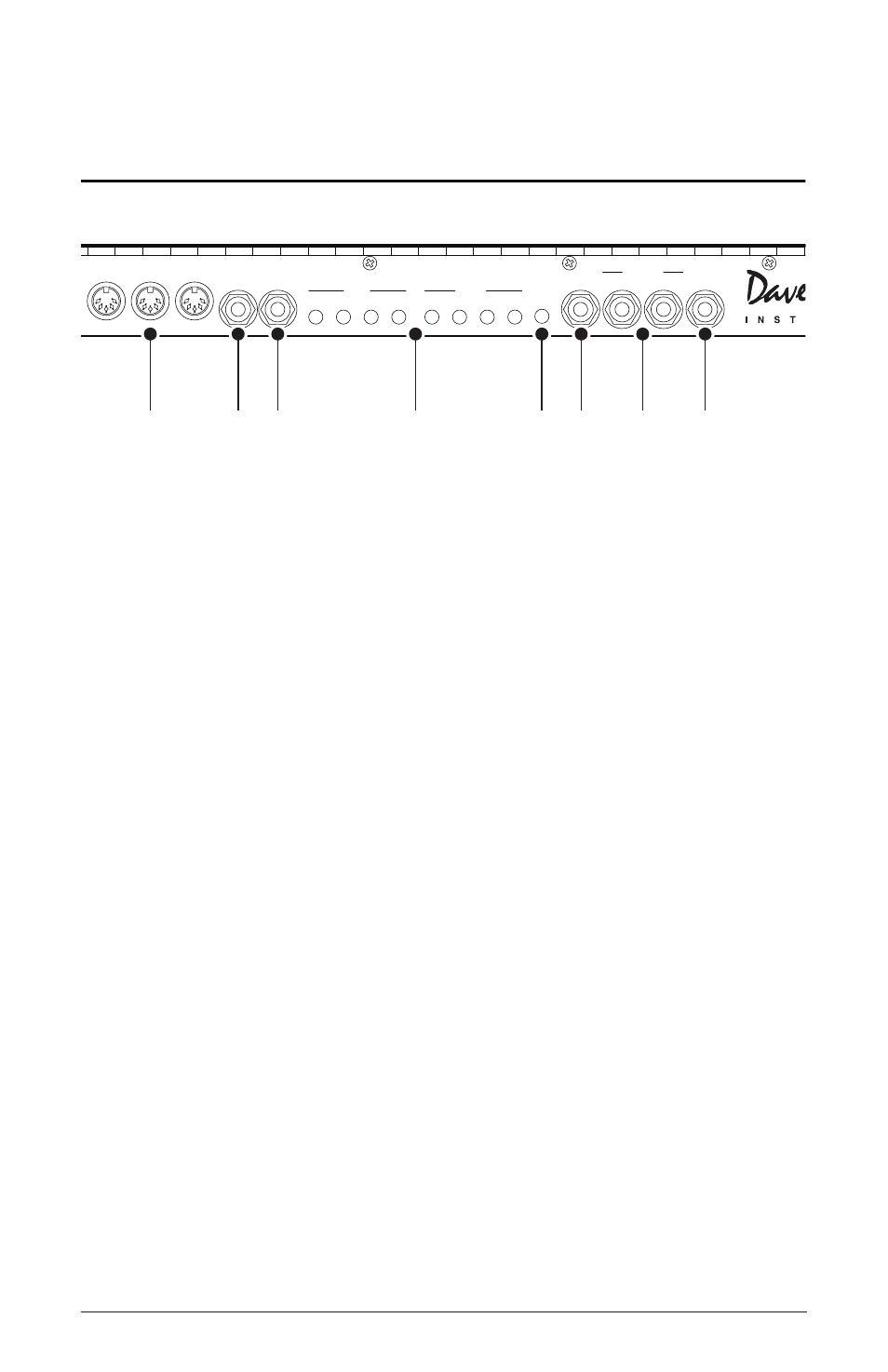

9 Pro 2 Operation Manual Connections
1 2 3 4 5 6 7 8 9 10
USB
1
100-240 VAC
50-60 Hz
30 Watts
Pedal Right Left Footswitch
MIDI In MIDI Out
MIDI Thru/
Out 2
Audio Out
CV In
2 3 4 1
CV Out
2 3 4
Gate
Out
Audio In Headphones
6 . Control Voltage Ins and Outs 1-4— Standard ⅛ inch TS connectors.
These jacks input and output a scalable 1-volt-per-octave signal for
interfacing with modular synthesizers and other gear that recognize this
standard.
7 . Gate Out— Standard ⅛ inch TS connector. This jack outputs a 10 volt
on/off signal for triggering external sequencers and other devices that
support this type of connectivity.
8 . Audio In— Unbalanced, ¼ inch audio input. The Pro 2 accepts exter-
nal audio signals for processing through this connector. Input level can
be adjusted using the
ext
.
input level
knob in the Oscillators section.
9 . Audio Outputs— Unbalanced, ¼ inch audio outputs. The Pro 2 sounds
great in stereo, but can be switched to mono if needed. See “Mono/
Stereo” in Global Settings on page 11.
10 . Headphones— A ¼ inch stereo headphone jack.
