Chapter 7 Setting up WAN using Wireless Routing Client
40

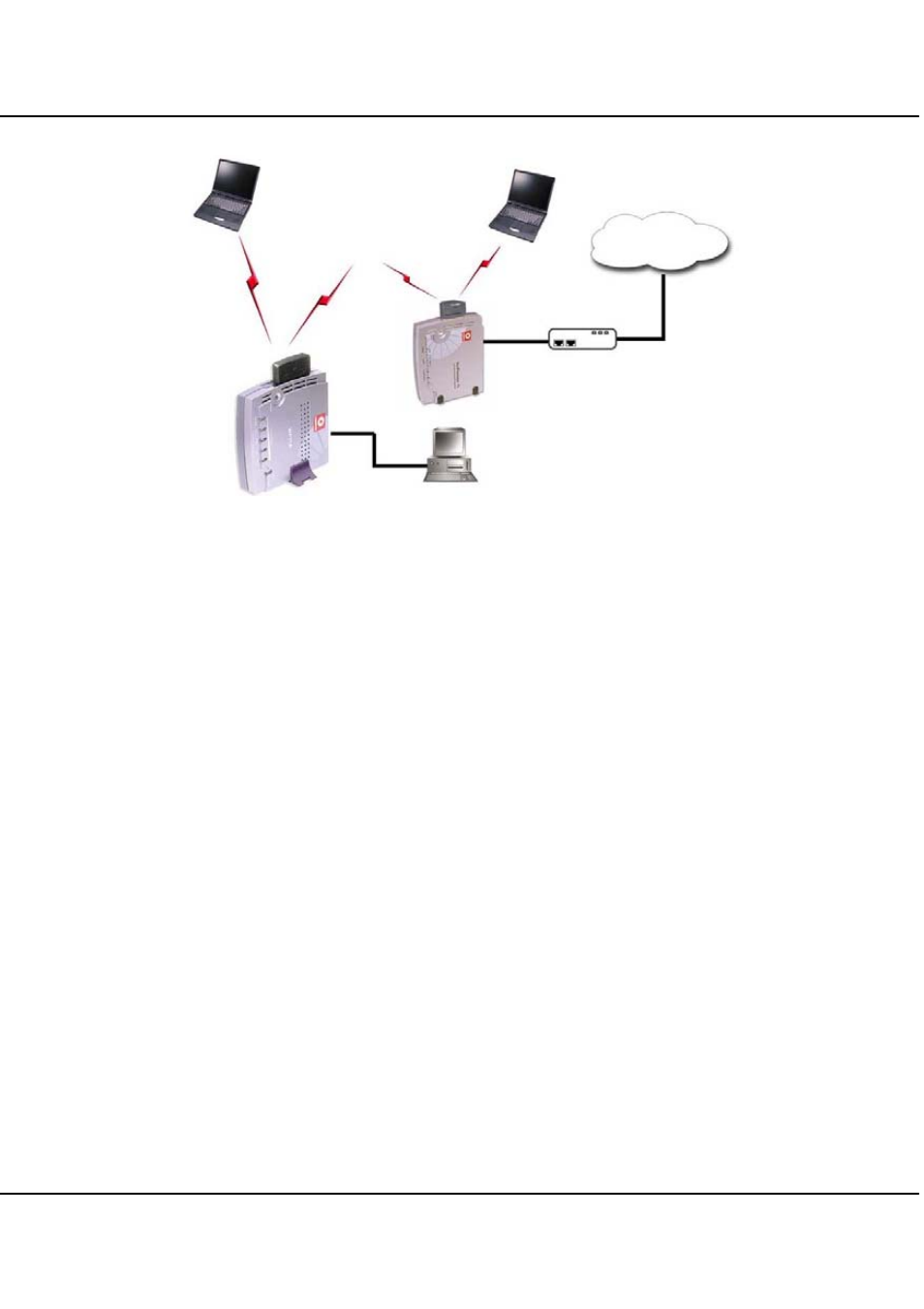

Figure 7.1b Physical layout for setting Compex WP11A+ as Wireless Routing Client
4. Power on the broadband modem and wait for it to complete the initialization process
which may take a minute or more, depending on the brand and design of individual
modem.
5. Next, power ON the Compex WP11A+ and Compex NP16. When either of the 10M
or 100M Ethernet LED lights up, this shows that there is a good cable connection
between the ADSL modem, Compex WP11A+ and Compex NP16.
6. Power ON the PC/notebook and the WLAN port LED should light up after entering
the Windows environment. This indicates good cable connection between the
switch/notebook and the Compex WP11A+.
7. Assume that Compex NP16 has been configured as an Access Point, you can now
access to the Internet.
Cable/ADSL
Modem
Internet
notebook
NP16 acts as an
Access Point
WP11A+ acts
as a wireless
routing client
Two devices
communicate with one
another wirelessly
