Chapter 5 Configure Compex WP11A Using Web Interface
22

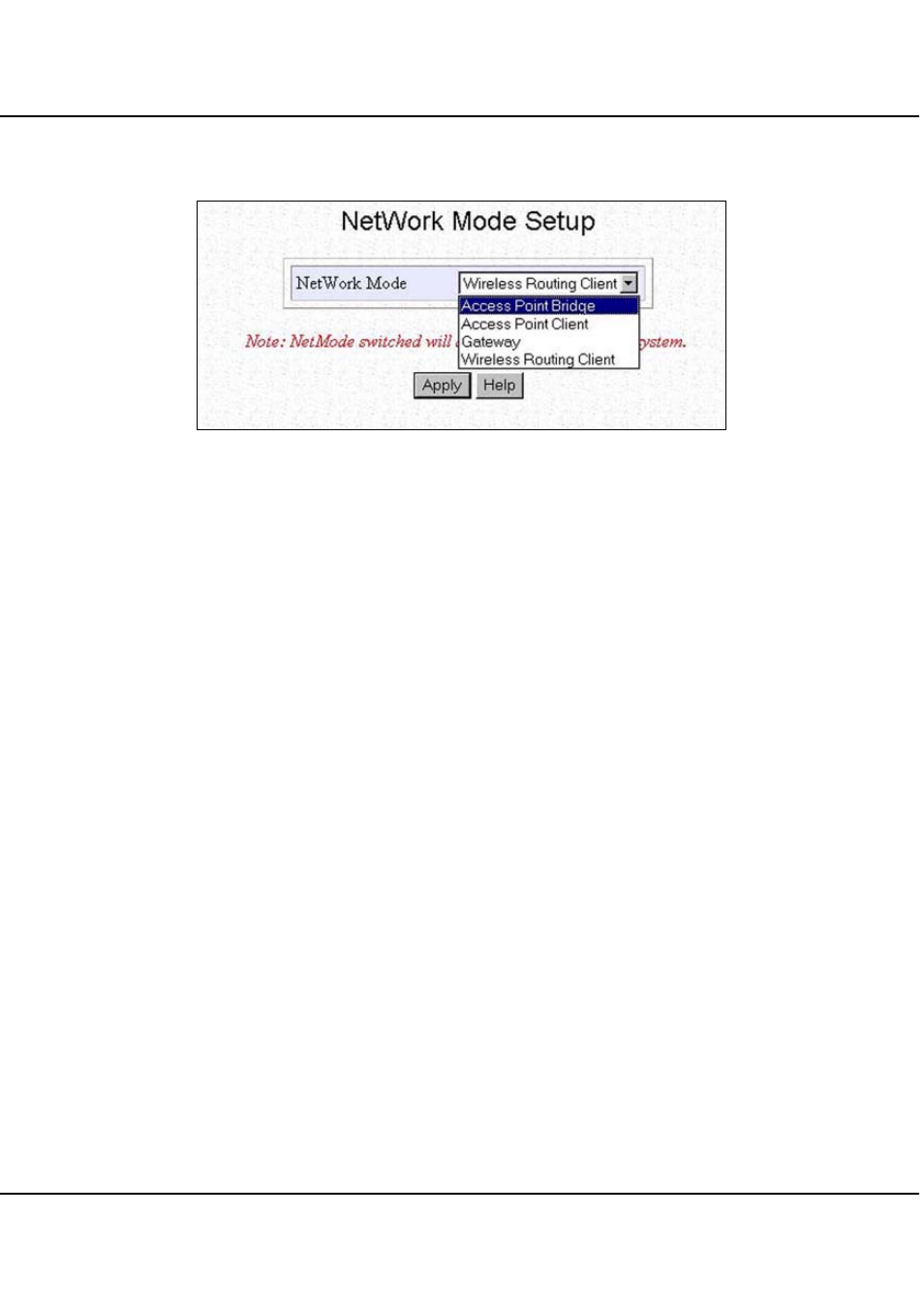

2. Click “Apply” button from the Network Mode Setup GUI and the web page for
Access Point Setup as shown in Figure 5.3d will appear.
Figure 5.3d Selection of Network Mode
3. Enter the Access Point Setup parameters for your network. An example is shown in
Figure 5.4e with these parameters entered.
Example:
Access Point Name: wlan
ESSID: Any
Channel: 3
TX Rate: Fully Auto
RTS Threshold: 2432
Frag Threshold: 2346
Pseudo VLAN: Disable
WEP encryption method: Disable
