Chapter 3 Hardware Installation
10
Chapter 3 Hardware Installation

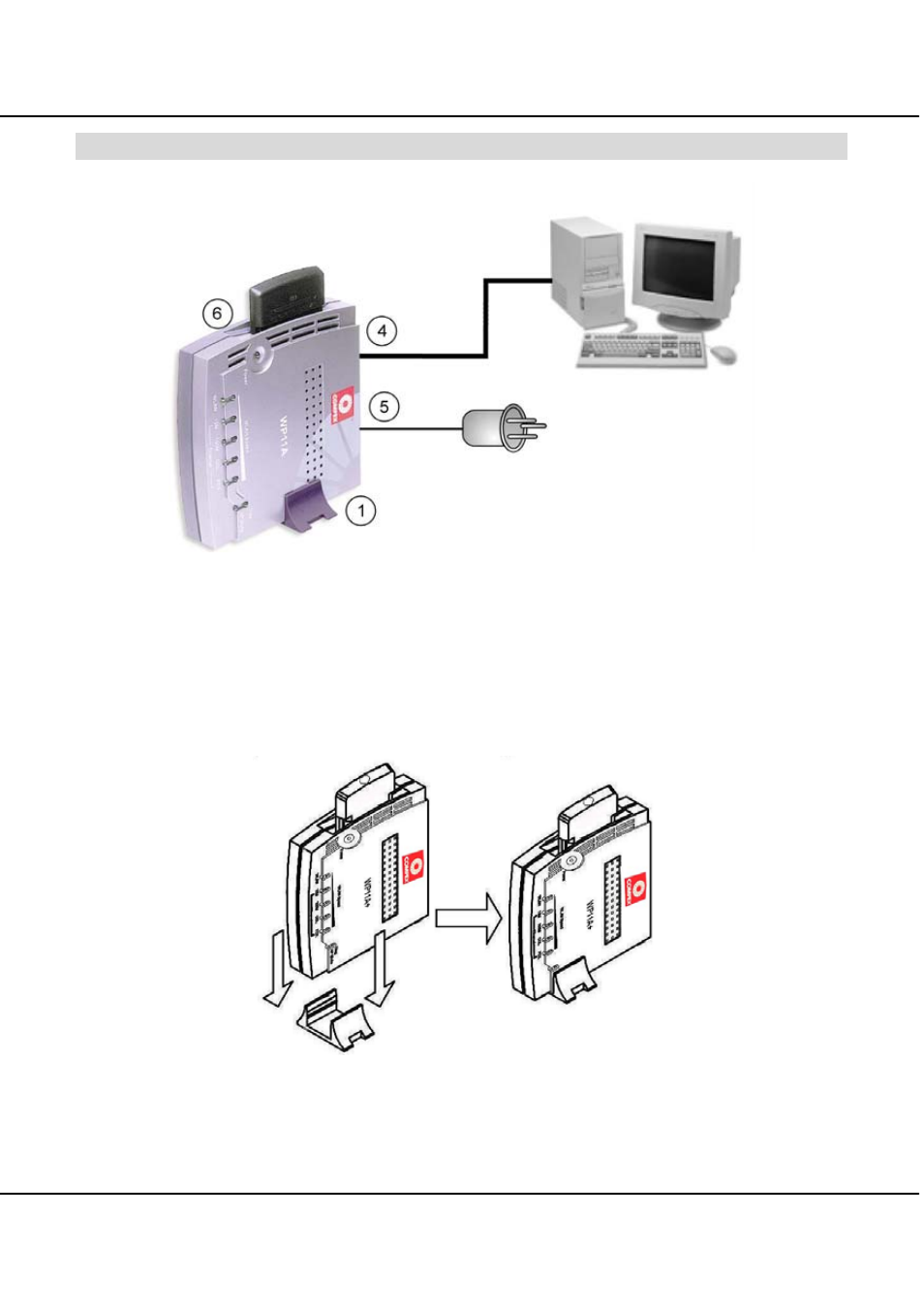

Figure 3a Compex WP11A+ Connections
To begin setting up the Compex WP11A+, please follow the steps listed below:
1. Snap the Compex WP11A+ onto the clip holder stand as shown in Figure 3b.
Figure 3b Illustration on using Clip holder Stand
Clip it directly onto the
ventilation hole located at the
back of the device.
Slide it into the slot of the
other clip holder stand to
place side by side.
