Page 70

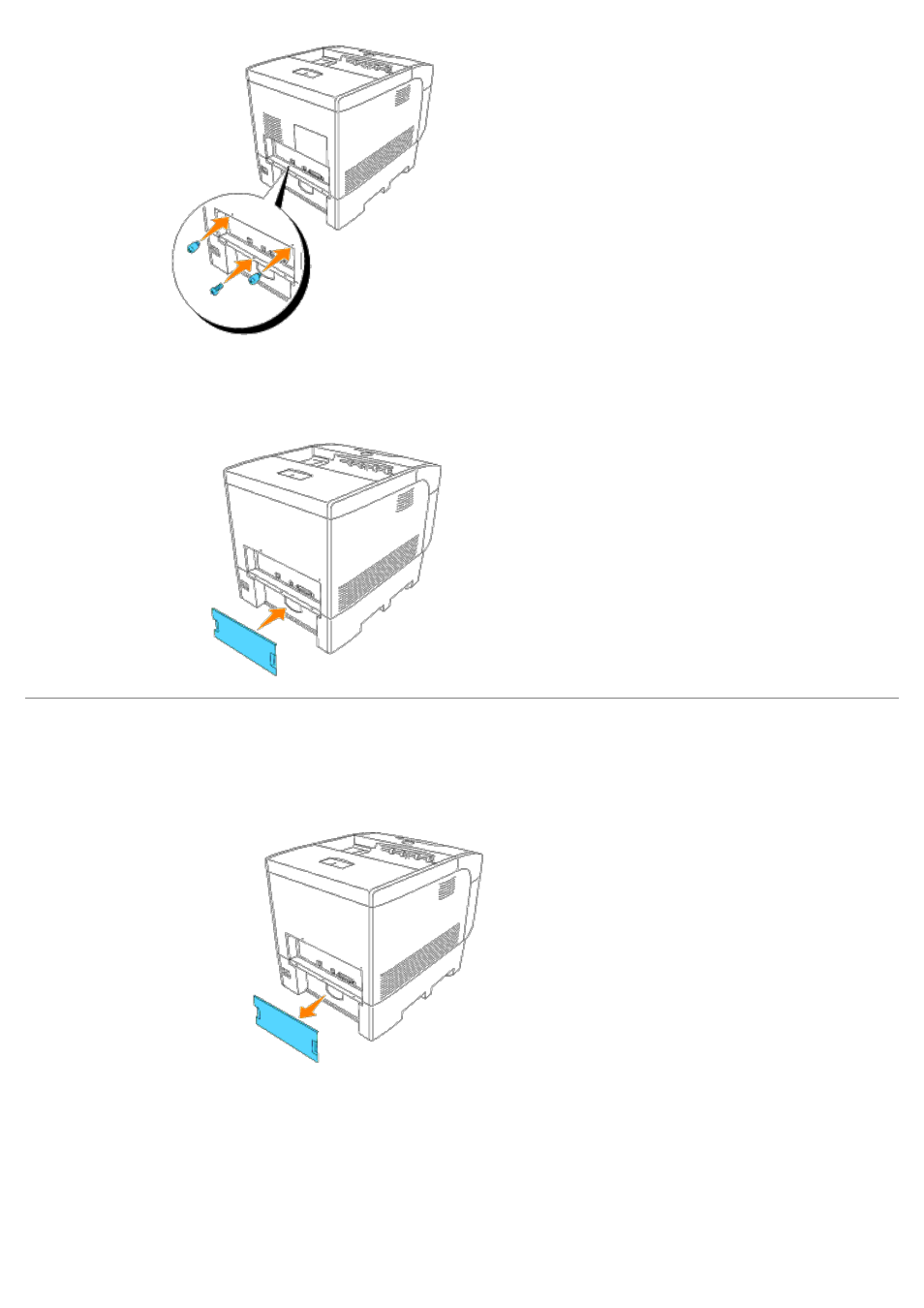

9. Reattach the paper tray cover to the back of the printer.
Installing the Hard Drive
1. Make sure that the printer is turned off.
2. Hold the upper side of the paper tray cover and pull it forward to remove it from the back of the printer.
3. Remove the three screws on the controller card from the back side of the printer.
