About Your Printer

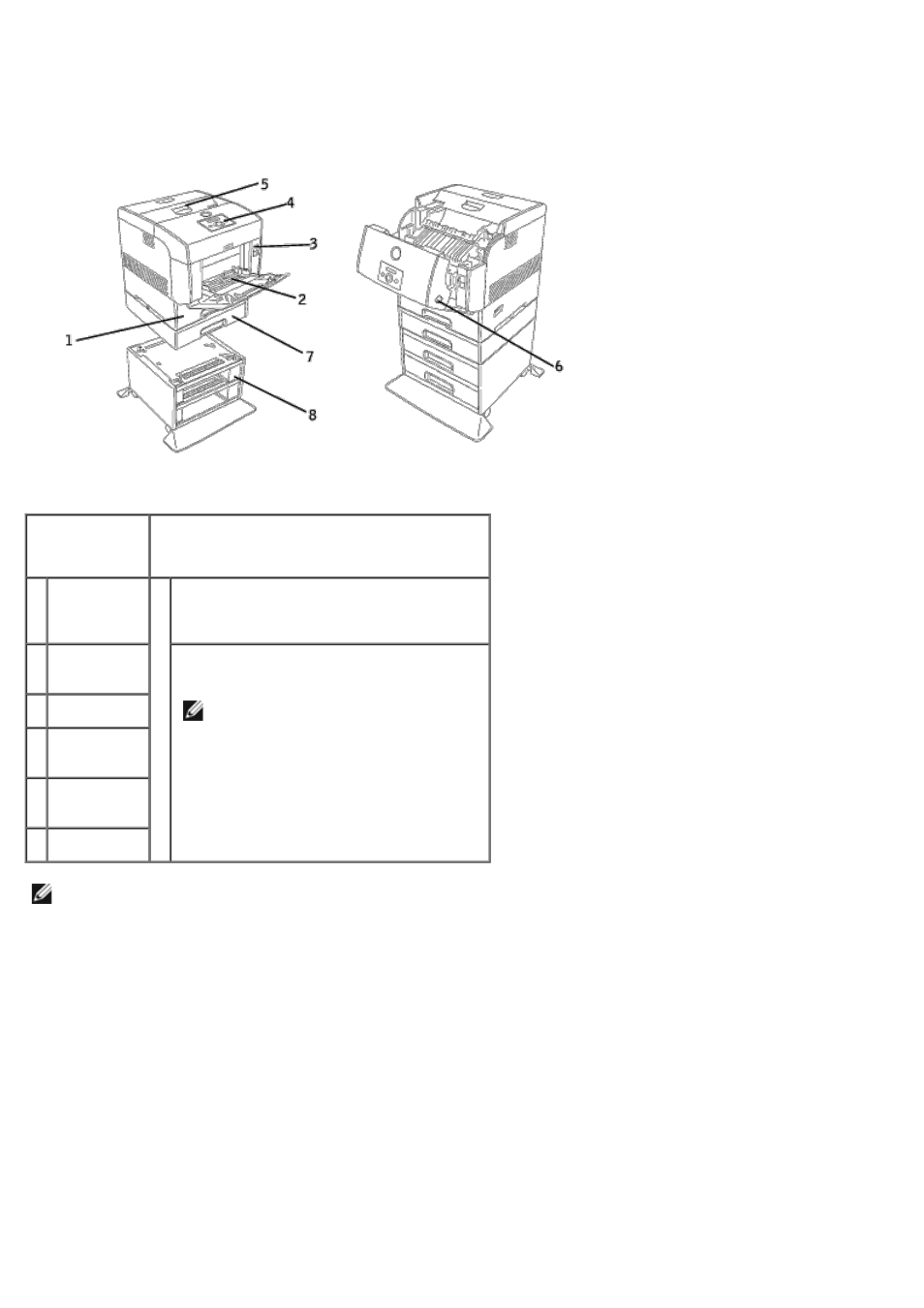

The following illustrations show the standard Dell Laser Printer 5100cn, with an optional 500-sheet tray module and 1000-

sheet tray module.

Standard

printer

Printer with options

1 Standard

500-sheet

tray

Optional 500-sheet tray module

2 Multipurpose

feeder

Optional 1000-sheet tray module

NOTE:

Your printer allows for a

maximum of 4 trays (standard 500-

sheet tray, optional 500-sheet tray

module, and optional 1000-sheet

tray module).

3 Front latch
4 Operator

panel

5 Imaging

drum cover

6 Side button

NOTE:

When you use the printer with the multipurpose feeder opened, do not locate the printer in direct sunlight.

Doing so may cause a malfunction or unnatural screen image.

Leave enough room to open the printer trays, covers, and options. It is also important to allow space around the printer

for proper ventilation.
