Dell 5100cn Color Laser Printer User Manual

Page 214

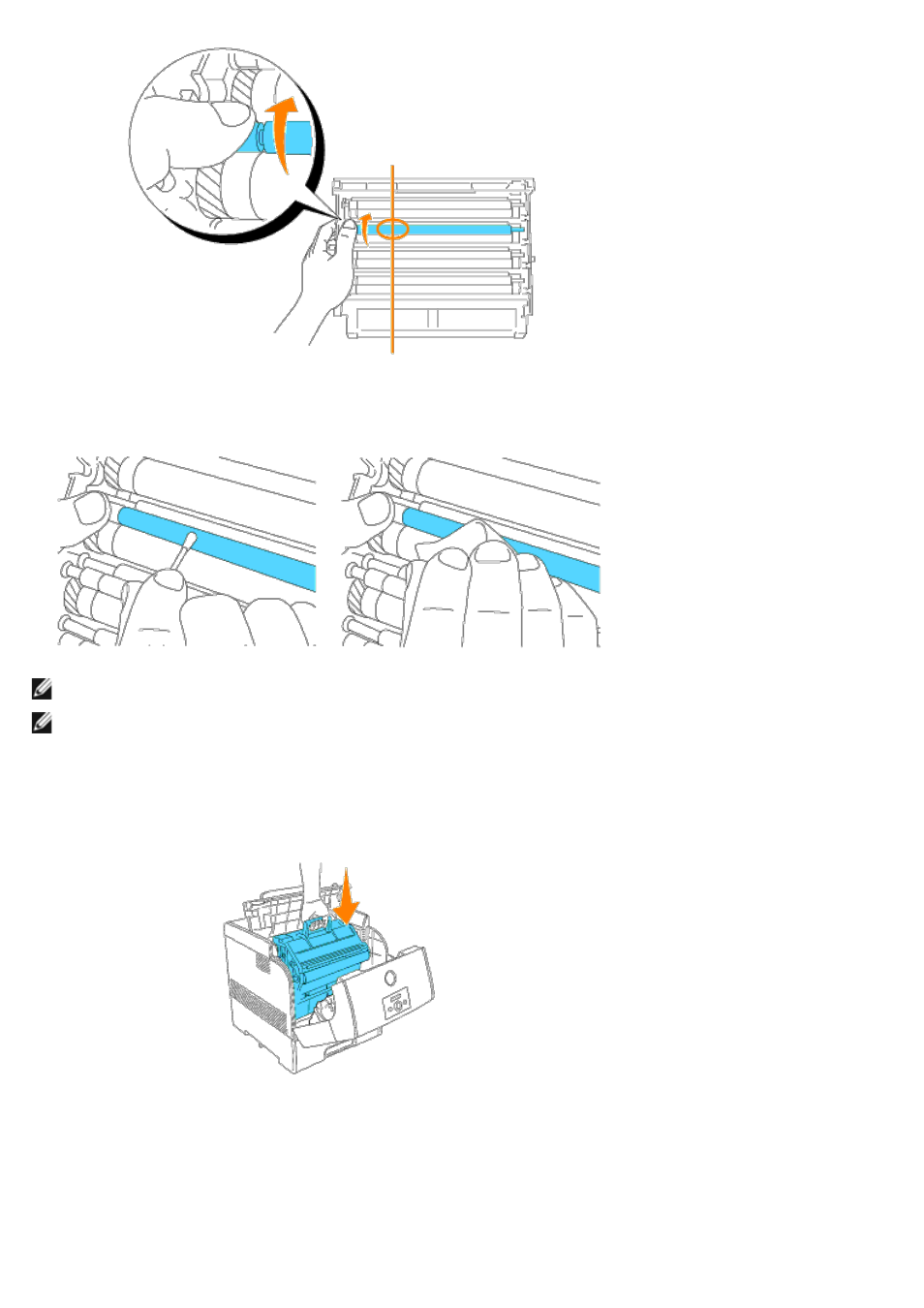

7. Clean any dirt from the roller.

NOTE:

Use a soft cloth, such as cotton for cleaning.

NOTE:

Make sure nothing touches or scratches the surface of the light-sensitive drum (green-colored roller) or the

transfer roller (black-colored roller).

8. Replace the imaging drum. Holding the imaging drum by the handle with the flat part facing the back of the printer,

align the plastic guides on both sides of the imaging drum with the slots in front of the arrows on the printer.

9. Close the imaging drum cover.
