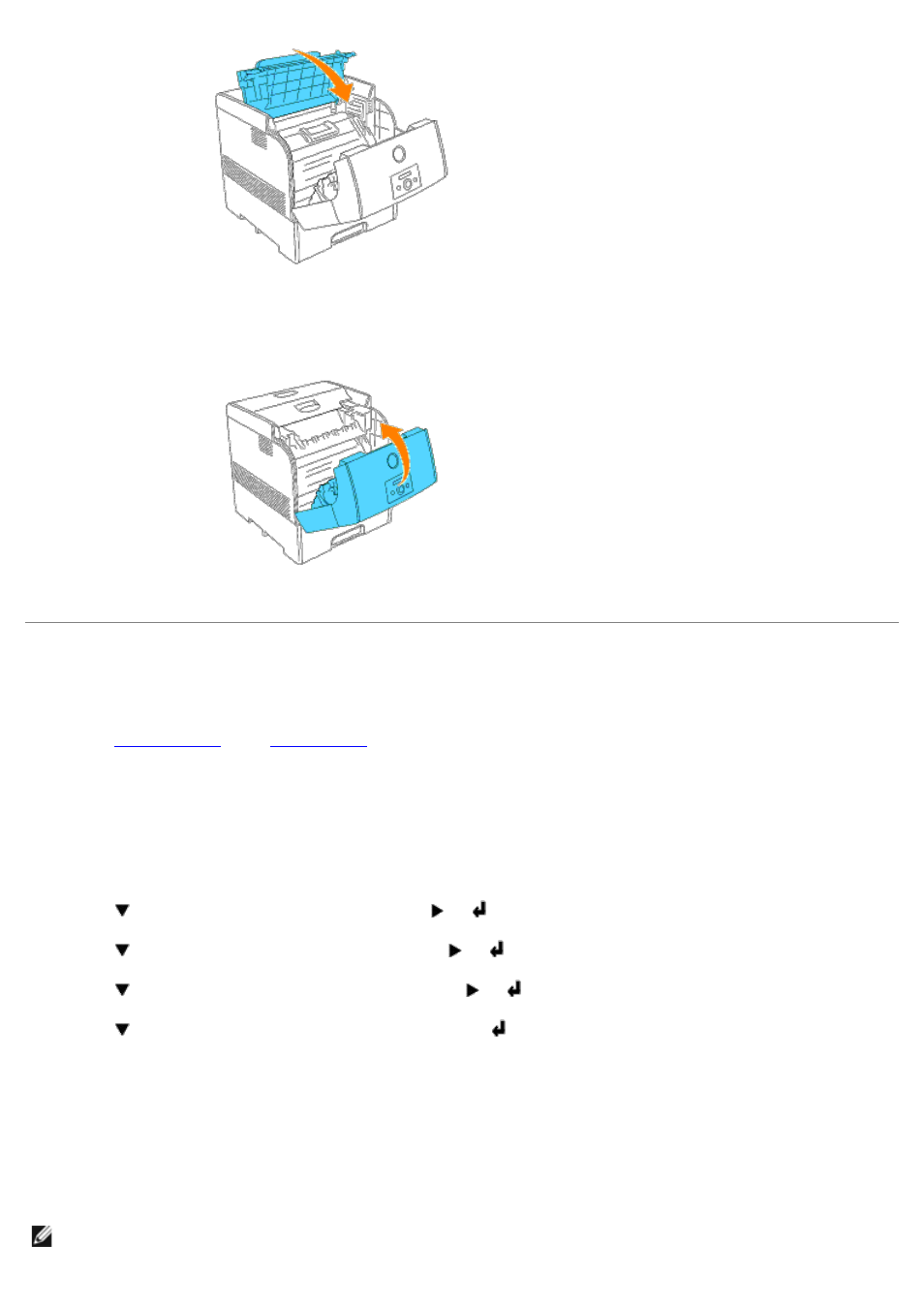

Page 215

10. Close the front cover.

Adjusting Color Registration

To adjust the color registration when you first install the printer or after moving it to a new location, follow the procedure

below. See "

" and "

" for information about the operator panel.

Printing the Color Registration Chart

Use the operator panel to print the color registration chart.

1. Press Menu.

2. Press until Configure appears, and then press or .

3. Press until Maintenance appears, and then press or .

4. Press until Color Reg Adj appears, and then press or .

5. Press until Correction Chart appears, and then press .

The color registration chart is printed.

Determining Values

From the lines to the right of the Y (yellow), M (magenta), and C (cyan) pattern, find the values of the straightest lines.

NOTE:

You can also use the densest colors of the lattice pattern to find the straightest lines. The colors printed at
