Installing System Options
www
.dell.com | support.dell.com
3 Open the system. See "Opening the System" in "Troubleshooting Your System."
4 If a 5.25-inch drive is installed in the peripheral drive bay, remove it. If that drive bay is empty,
remove the chassis drive insert that covers the opening of the empty bay. See "Removing the
Front-Panel Drive Inserts" and "Installing a 5.25-Inch Drive" in "Troubleshooting Your
System."
5 Open the control panel/chassis-intrusion switch cable retainer clip located below the
peripheral drive bay. See Figure 6-8.
6 Remove the three screws securing the control panel to the front of the system. See Figure 6-8.
7 Disconnect the control panel and chassis-intrusion switch cables from the back of the control
panel.

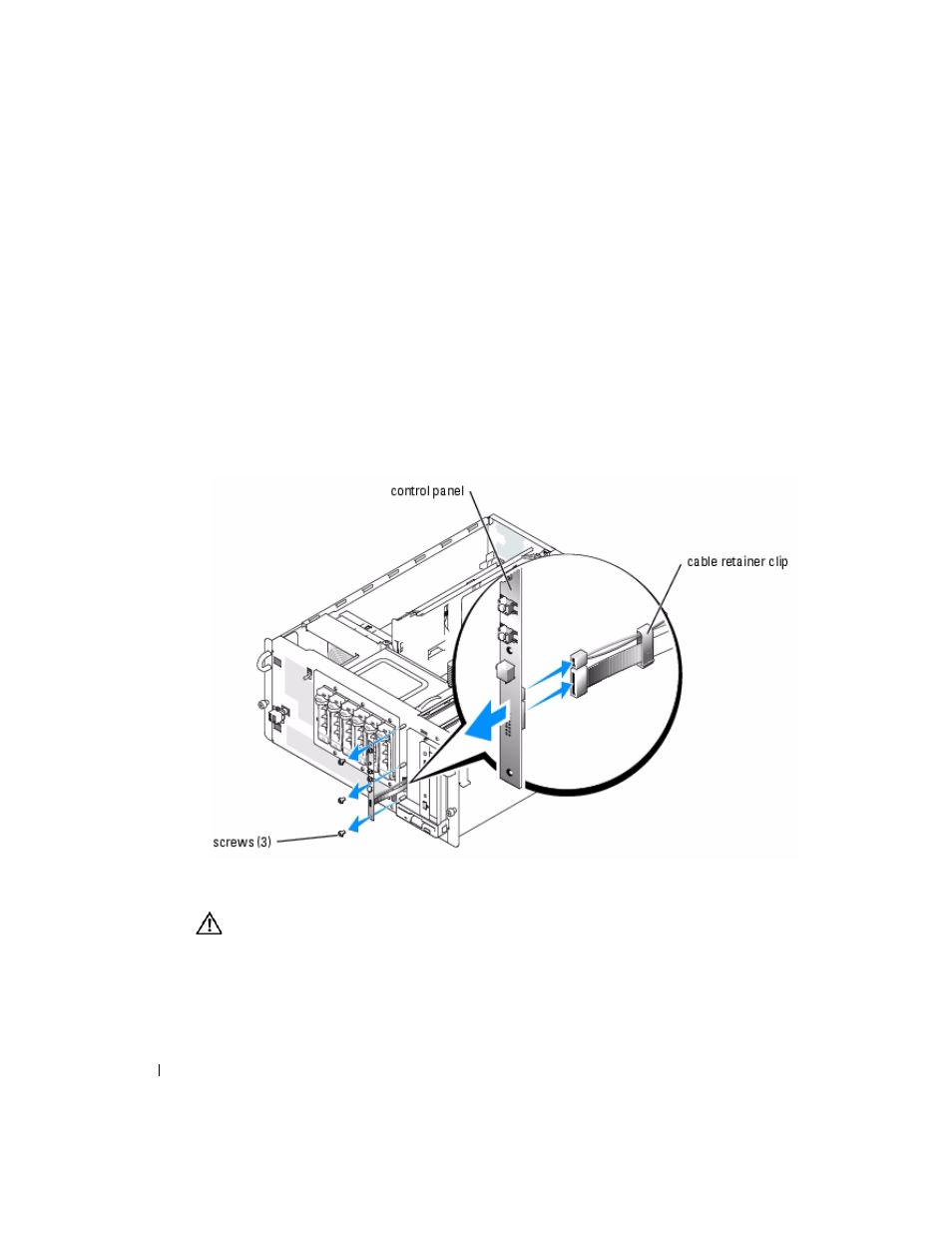

Figure 6-8. Removing and Installing the Control Panel
Installing the Control Panel
CAUTION:
Many repairs may only be done by a certified service technician. You should only perform
troubleshooting and simple repairs as authorized in your product documentation, or as directed by the
online or telephone service and support team. Damage due to servicing that is not authorized by Dell is
not covered by your warranty. Read and follow the safety instructions that came with the product.
1 Connect the control panel and chassis-intrusion switch cables to the back of the control
panel.
