Troubleshooting Your System
53

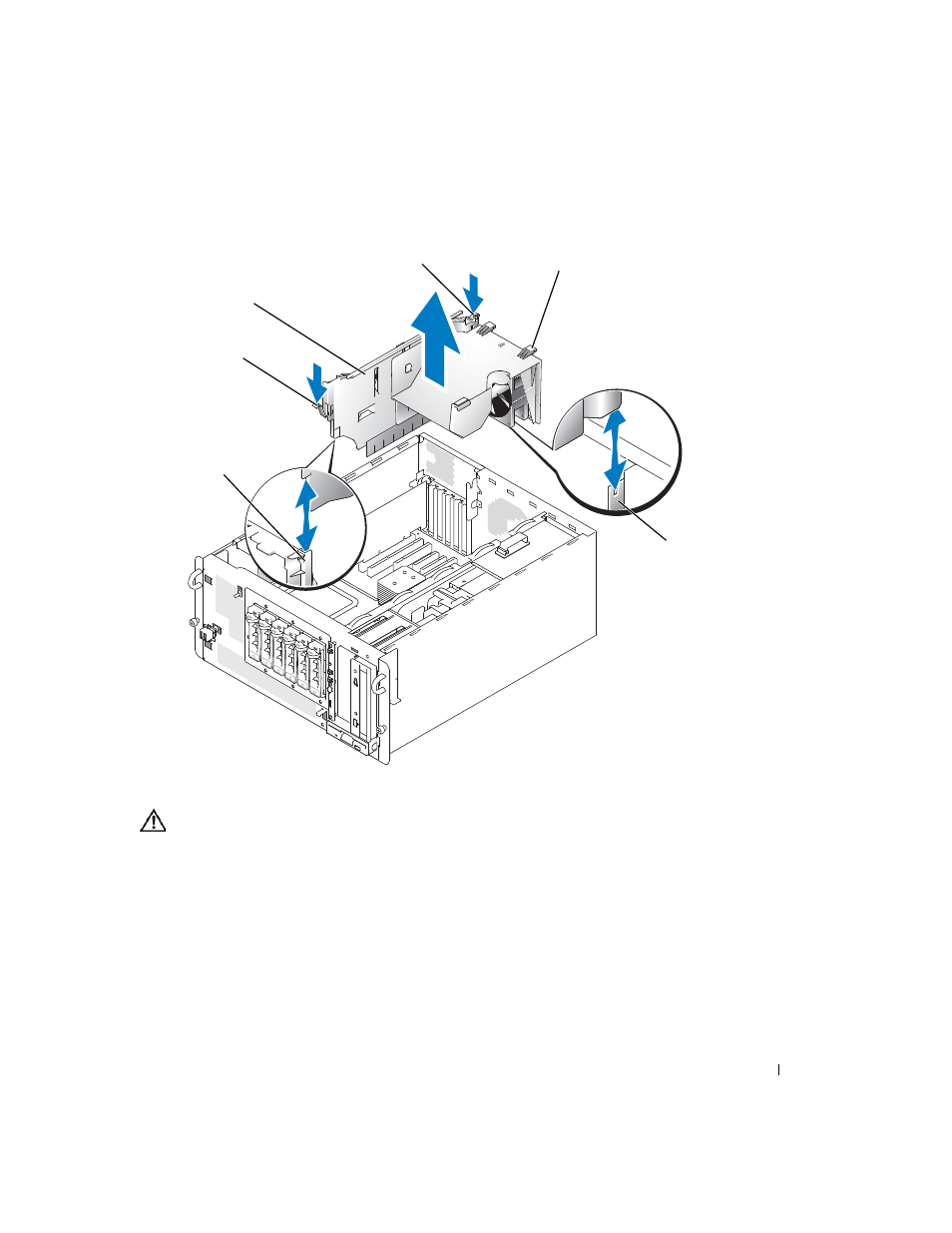

Figure 5-5. Removing the Baffle/Back Fan Assembly
Removing the Baffle/Back Fan Assembly
CAUTION:
Many repairs may only be done by a certified service technician. You should only perform
troubleshooting and simple repairs as authorized in your product documentation, or as directed by the
online or telephone service and support team. Damage due to servicing that is not authorized by Dell is
not covered by your warranty. Read and follow the safety instructions that came with the product.
To remove the baffle/back fan assembly, perform the following steps:
1 Press the release tab at the front of the assembly and the release tab at the back of the
assembly.
2 Slightly lift up the baffle/back fan assembly and disconnect the back fan assembly cable from
the system board. See Figure A-3 for the location of the system-board back fan connector.
3 Lift the baffle/back fan assembly out of the chassis.
baffle/back
fan assembly
front release tab
back release tab securing tabs (2)
chassis guide
chassis guide
