100
Installing Drives
www
.dell.com | support.dell.com
NOTICE:
Cables not installed into the drive-cable retainer may block air flow and cause the system to
overheat.
d Slide the interface cable into the drive-cable retainer.
e Replace the hard-drive bay and screws.
f Replace the expansion-card guide.
g Replace the baffle/back fan assembly. See "Installing the Baffle/Back Fan Assembly."

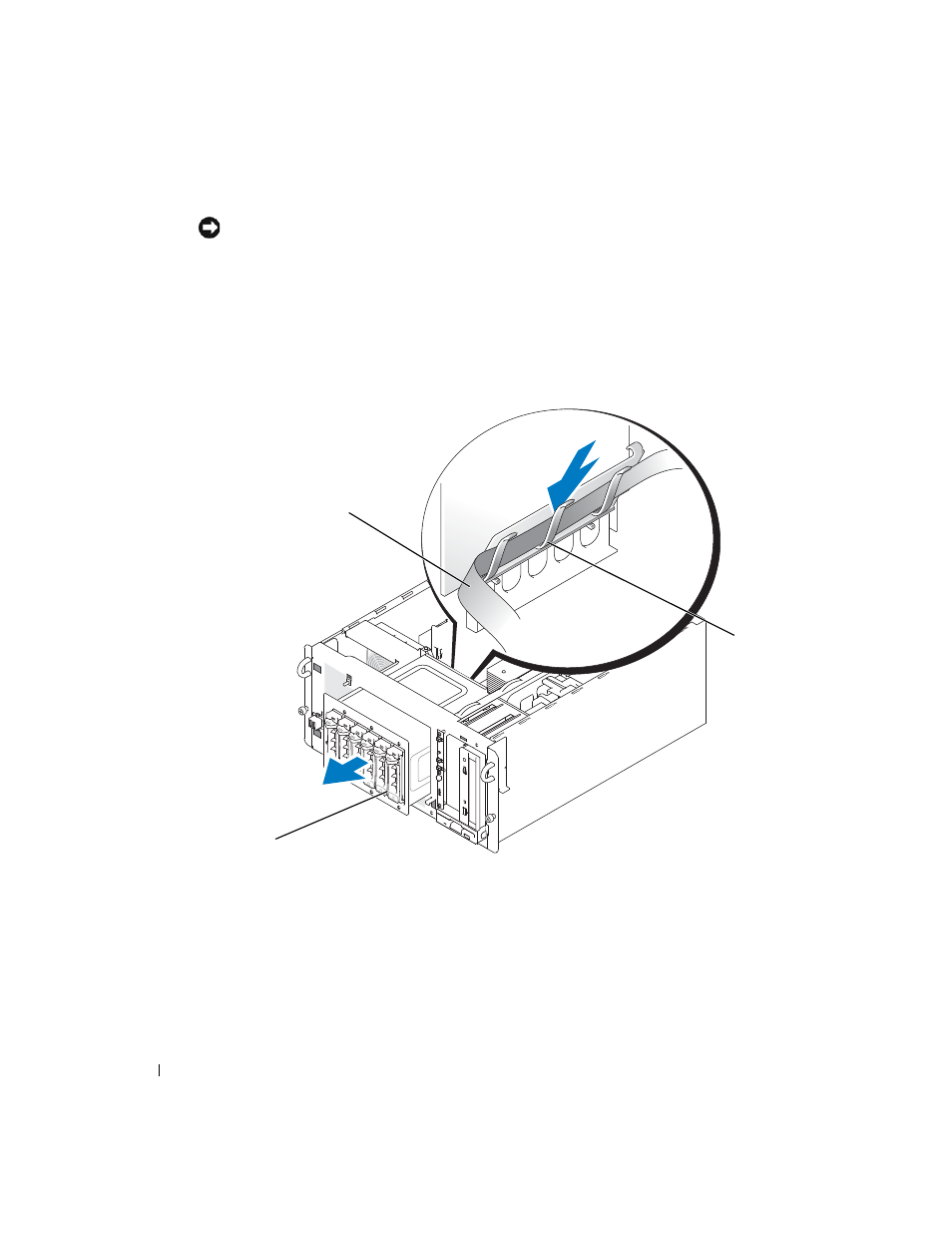

Figure 7-4. Accessing the System Board Drive Connectors
10 Connect the interface cable to the drive and to the system board or controller card.
•
Figure 7-5 illustrates a common cable configuration for externally accessible IDE drives.
• Figure 7-6 illustrates a SCSI half-height tape drive connected to the SCSI controller on
the system board.
• Figure 7-7 shows a SCSI half-height tape drive connected to a SCSI controller card.
For information about the controller card, see the documentation that accompanied the
card.
drive bay
drive-cable
retainer
interface cable
