Jumpers, Switches, and Connectors

141

System Board Connectors

See Figure A-3 and Table A-2 for the location and description of system board connectors and
expansion-card slots.

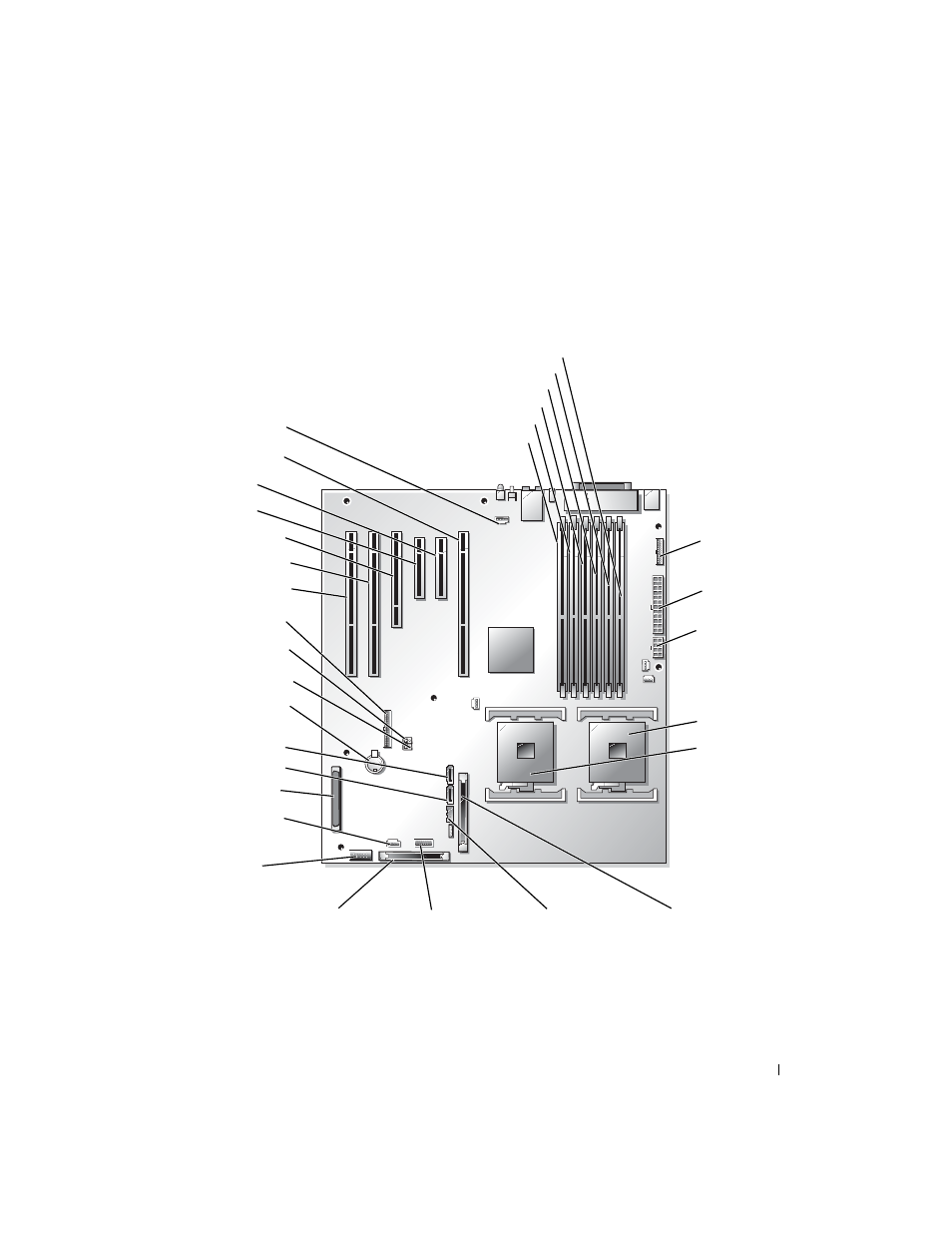

Figure A-3.

System Board Connectors

PCI64 66MHZ SLOT1

CP_CONN

IDE1

FDD_CONN

P1

FRONT_USB

SCSI1

Fan1

Fan2

SATA CON-0

BT1

P2

DIMM 1_B

DIMM 1_A

DIMM 2_B

DIMM 2_A

DIMM 3_B

DIMM 3_A

SATA CON-1

PROC_1

PROC_2

PCI-E X4 SLOT2

PCI-E X8 SLOT3

PCI32 33MHZ SLOT4

PCI-X 100MHZ SLOT5

PCI-X 100MHZ SLOT6

RAC_conn

PDB

BP 12C

J55 clear NVRAM jumper

J55 password jumper
