I/O Ports and Connectors
149
Video Connector
You can attach a VGA-compatible monitor to the system’s integrated video controller using a
15-pin high-density D-subminiature connector. Figure B-5 illustrates the pin numbers for the video
connector and Table B-5 defines the pin assignments for the connector.
NOTE:
Installing a video card automatically disables the system's integrated video controller.

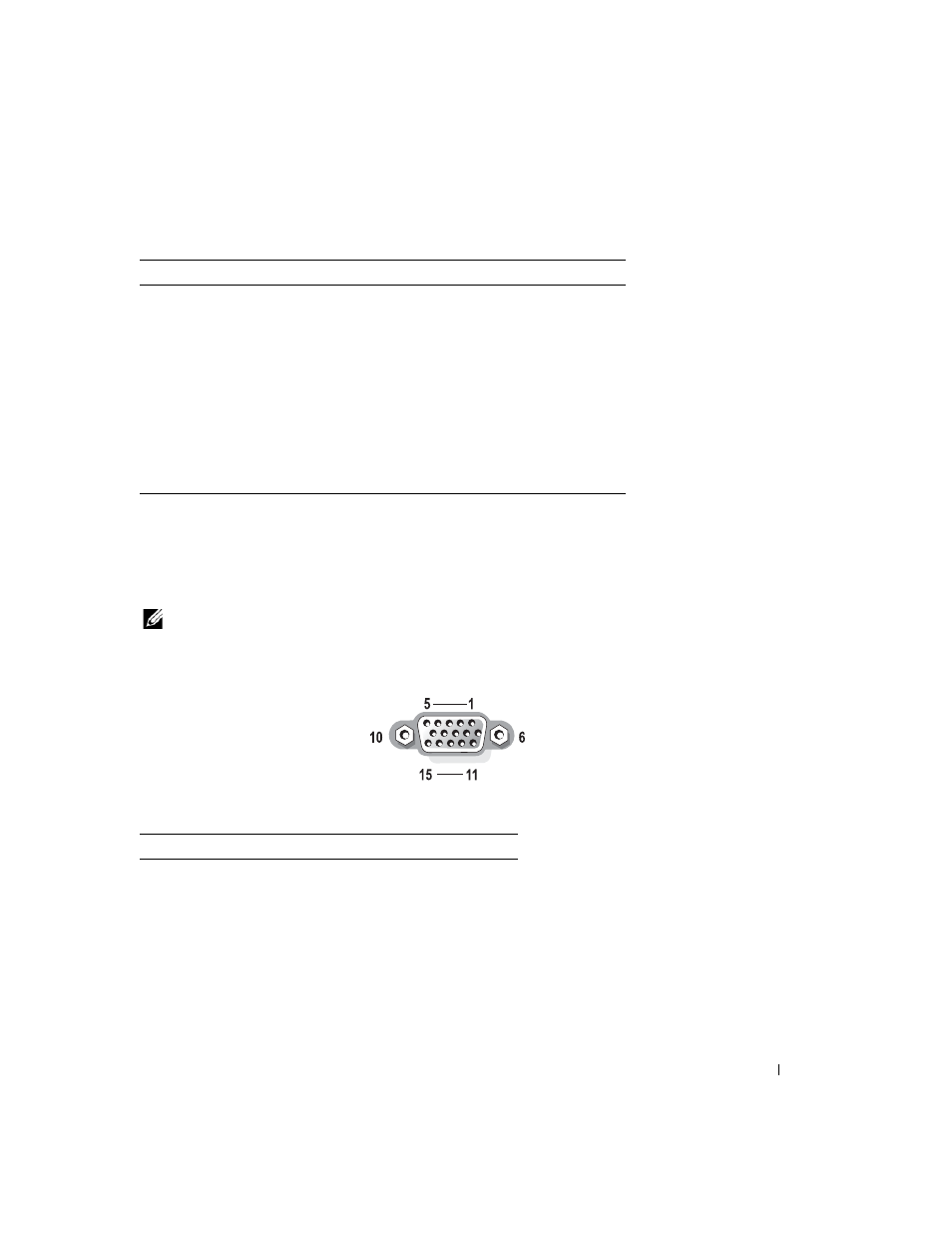

Figure B-5. Video Connector Pin Numbers
Table B-4. Keyboard and Mouse Connector Pin Assignments
Pin Signal I/O Definition
1 KBDATA or
MFDATA I/O Keyboard data or mouse data
2 NC N/A No connection
3 GND N/A Signal ground
4 FVcc N/A Fused supply voltage
5 KBCLK or
MFCLK I/O Keyboard clock or mouse clock
6 NC N/A No connection
Shell N/A N/A Chassis ground
Table B-5. Video Connector Pin Assignments
Pin Signal I/O Definition
1 RED O Red video
2 GREEN O Green video
3 BLUE O Blue video
4 NC N/A No connection
5–8, 10 GND N/A Signal ground
9 VCC N/A Vcc
11 NC N/A No connection
