Dell Inspiron 7500 User Manual
Page 9
Back to Contents Page

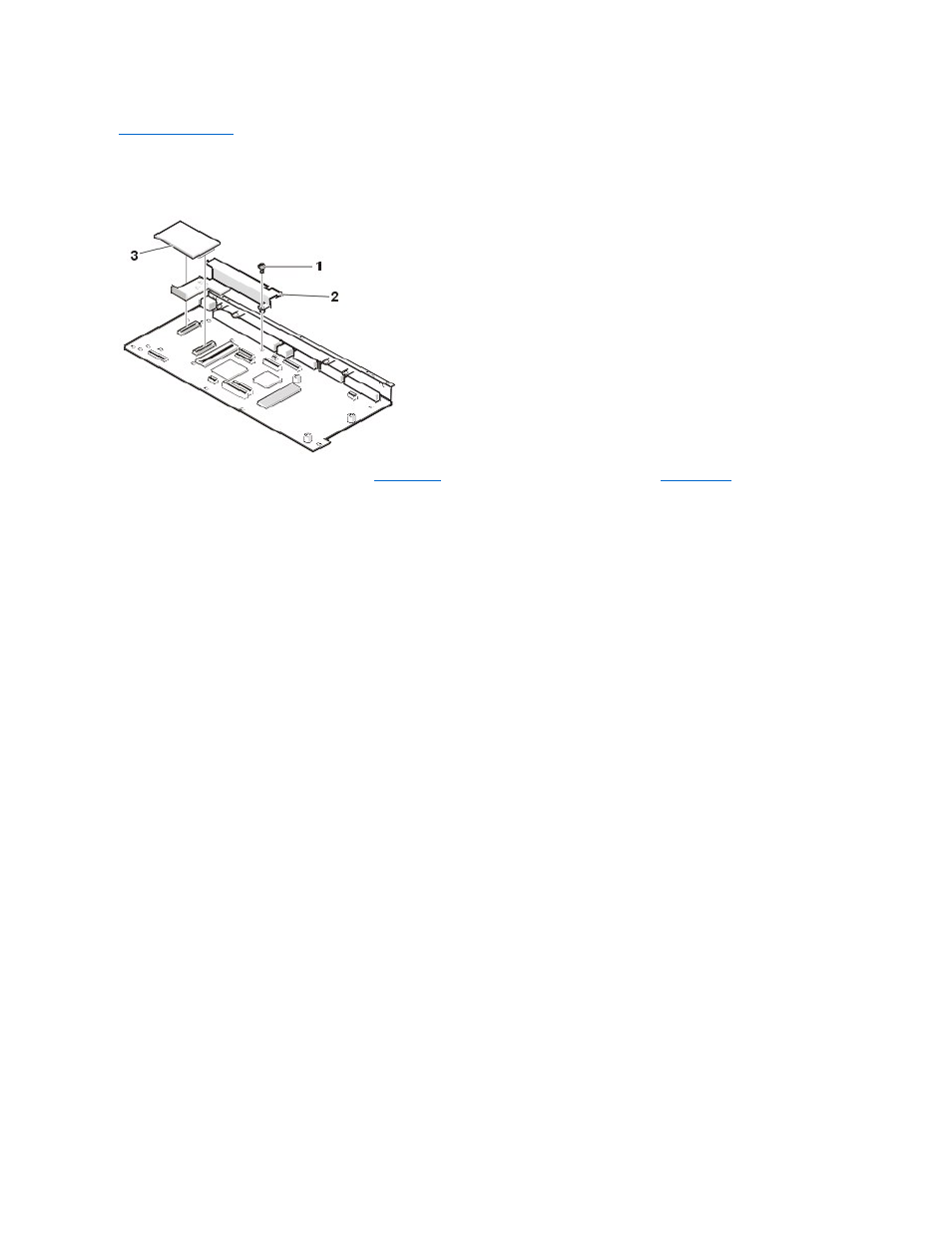

Audio Card and Audio Thermal Shield Removal: Dell™ Inspiron™ 7500
****New artwork pending
This procedure assumes that you have removed the
system board
from the plastic case and have removed the
PC Card cage
from the system
board. To remove the audio card and audio thermal shield, follow these steps:
1. Gently pull the audio card off of connectors JP12 and JP13 on the system board. Do not rock the card to remove it, because this may
damage the connectors.
2. Remove the 10-mm screw securing the audio thermal shield, and then remove the shield.
