Front bezel – Dell Inspiron 7500 User Manual
Page 133
This procedure assumes that you have removed the
and
. The following procedure applies to all LCD displays (15-inch
XGA, 15-inch SXGA+, and 15.4-inch SXGA).
1. Remove the left hinge cover (see Figure 39).
Remove the two Phillips screws on the LCD wire harness on JP3. Use a dental pick or flat-blade screwdriver to pry each end of the
connector to release it.
2. Close the display.
3. Remove the four 6-mm screws that secure the two hinges.
4. Unlatch the display assembly and lift the assembly off the computer base.
Display Assembly Component Removal

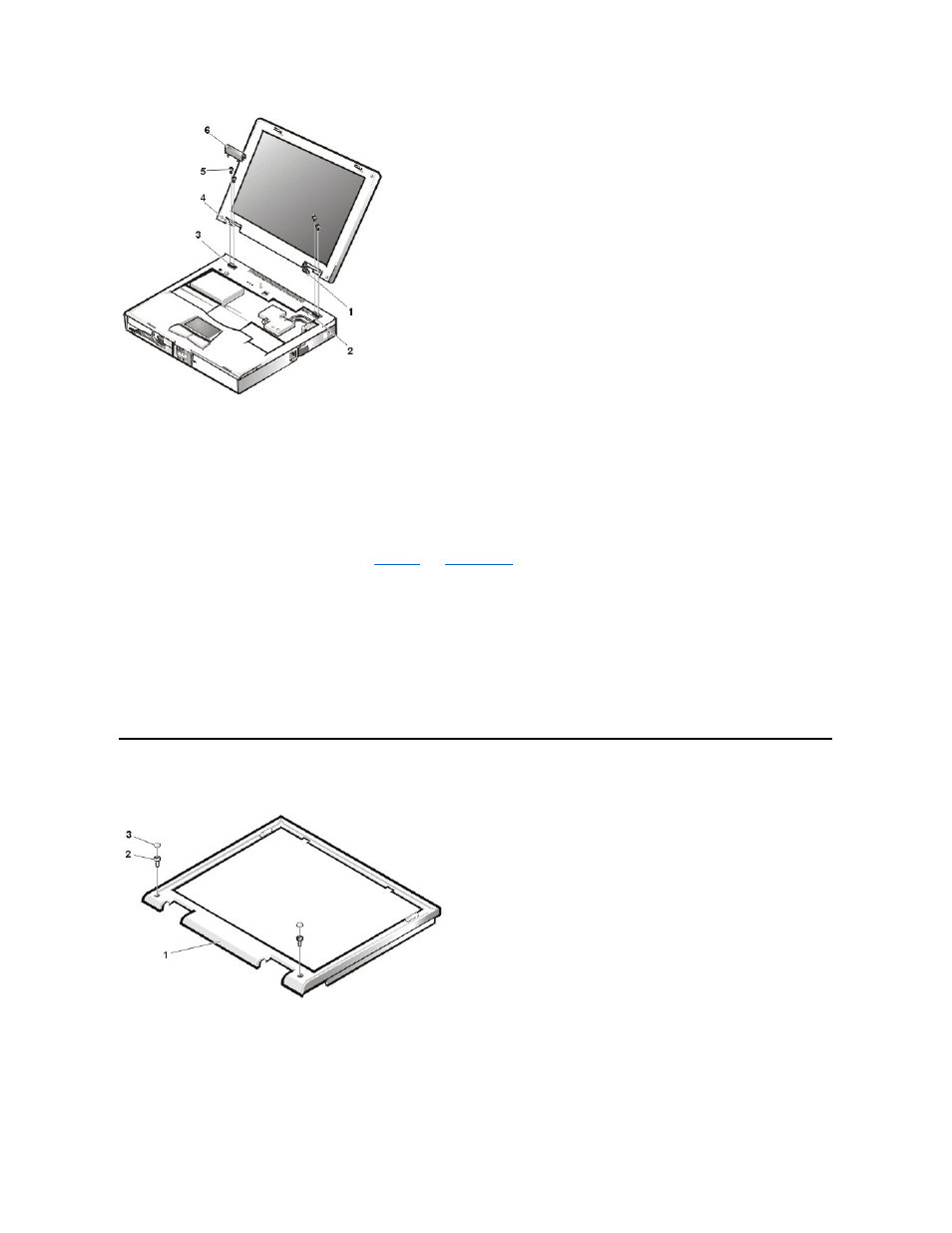

Figure 40. Front Bezel Removal
1 LCD wire harness
2 Connector JP3
3 Hinge saddles (2)
4 Hinges (2)
5 6-mm screws (4)
6 Left hinge cover
1 Front bezel
2 6-mm screws (2)
3 Rubber screw covers (2)
