This procedure assumes that you have removed the keyboard , thermal shield , and right hinge cover . To remove the 15-inch LCD panel (see
Figure 22), perform the following steps:
1. Remove the left hinge cover.
2. Disconnect the LCD wire harness from connector JP3 on the system board.
Remove the two Phillips screws on the LCD wire harness on the JP3 connector.
Use a dental pick or flat-blade screwdriver to pry up each end of the connector to release it.
3. Close the display.
4. Remove the four 6-mm screws that secure the two hinges to the hinge saddle extensions.
5. Unlatch the display and lift the assembly off the computer base.
15.4-Inch LCD Removal

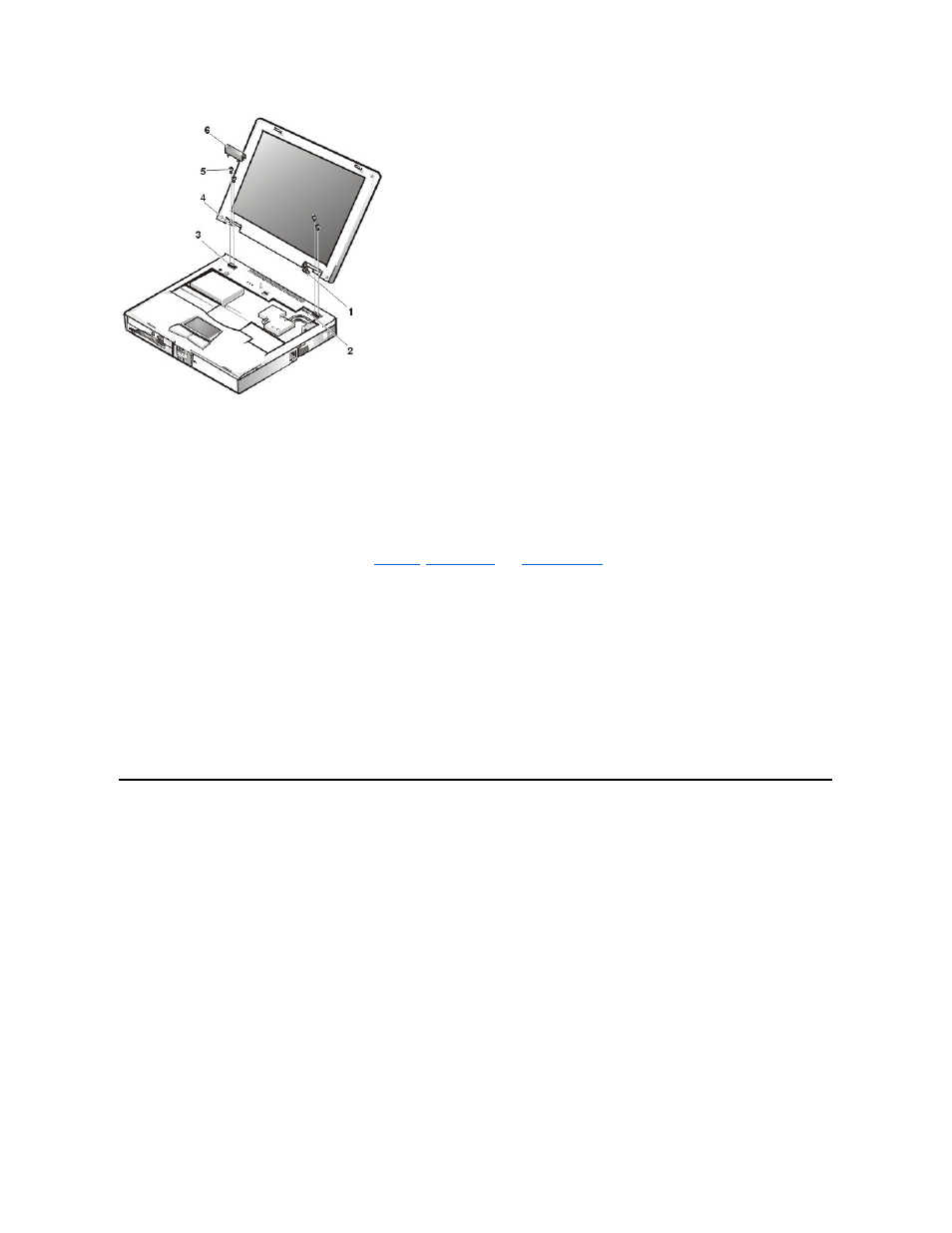

Figure 23. 15.4-Inch LCD Components
1 LCD wire harness
2 Connector JP3
3 Hinge saddles (2)
4 Hinges (2)
5 6-mm screws (4)
6 Left hinge cover
