Page 30

background image

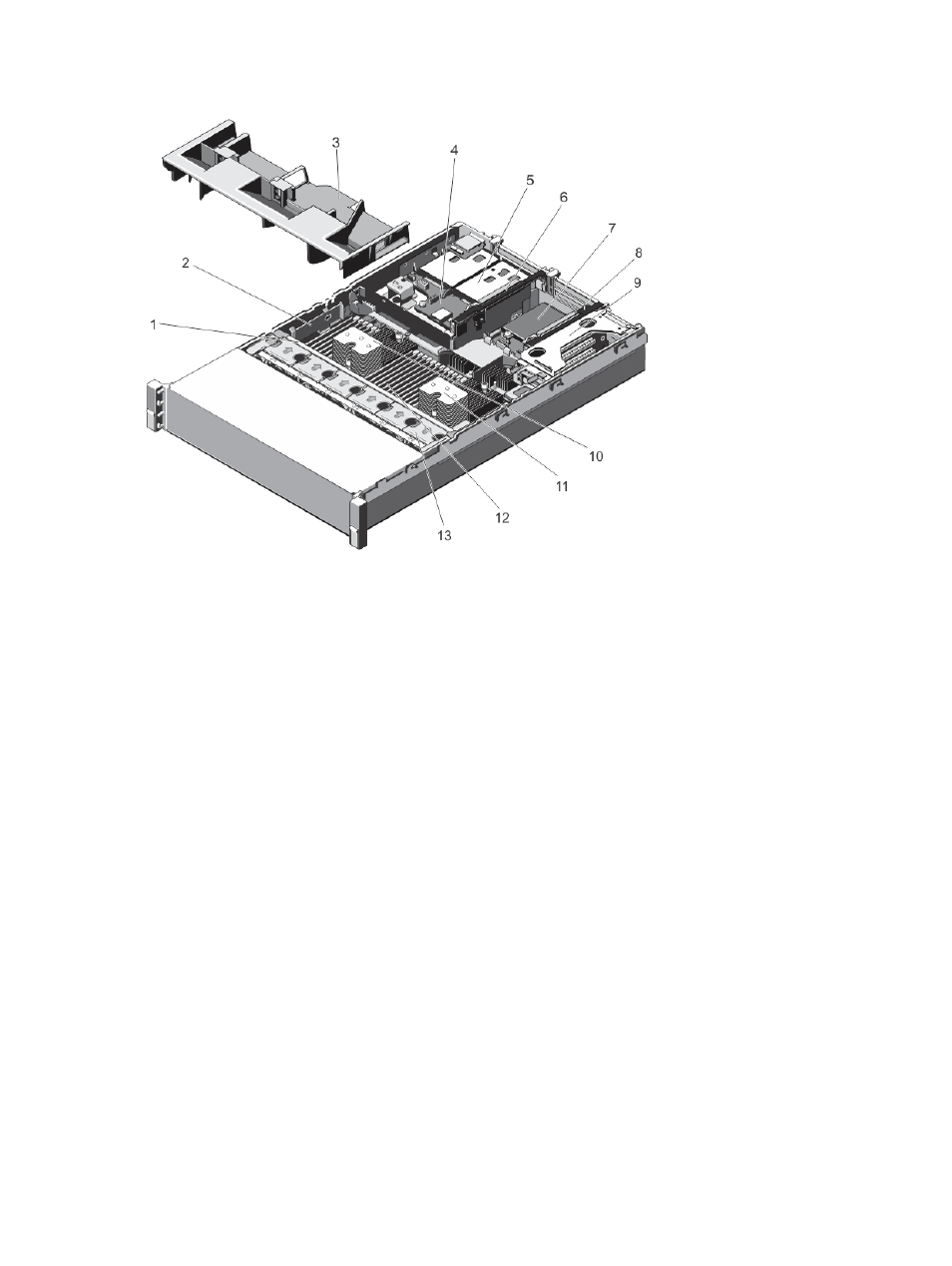

Figure 6. Inside the System

1.

cooling-fan assembly

2.

cable securing bracket

3.

cooling shroud

4.

hard-drive backplane (back)

5.

hard drives (back) (2)

6.

expansion-card riser 3

7.

network daughter card

8.

expansion-card riser 2

9.

expansion-card riser 1

10.

heat sink for processor 1

11.

heat sink for processor 2

12.

DIMMs (24)

13.

cooling fans (6)

Front Bezel (Optional)

Removing The Front Bezel

1.

Unlock the keylock at the left end of the bezel.

2. Lift the release latch next to the keylock.
3. Rotate the left end of the bezel away from the front panel.
4. Unhook the right end of the bezel and pull the bezel away from the system.

30
