6. Lift the backplane to remove it from the chassis.

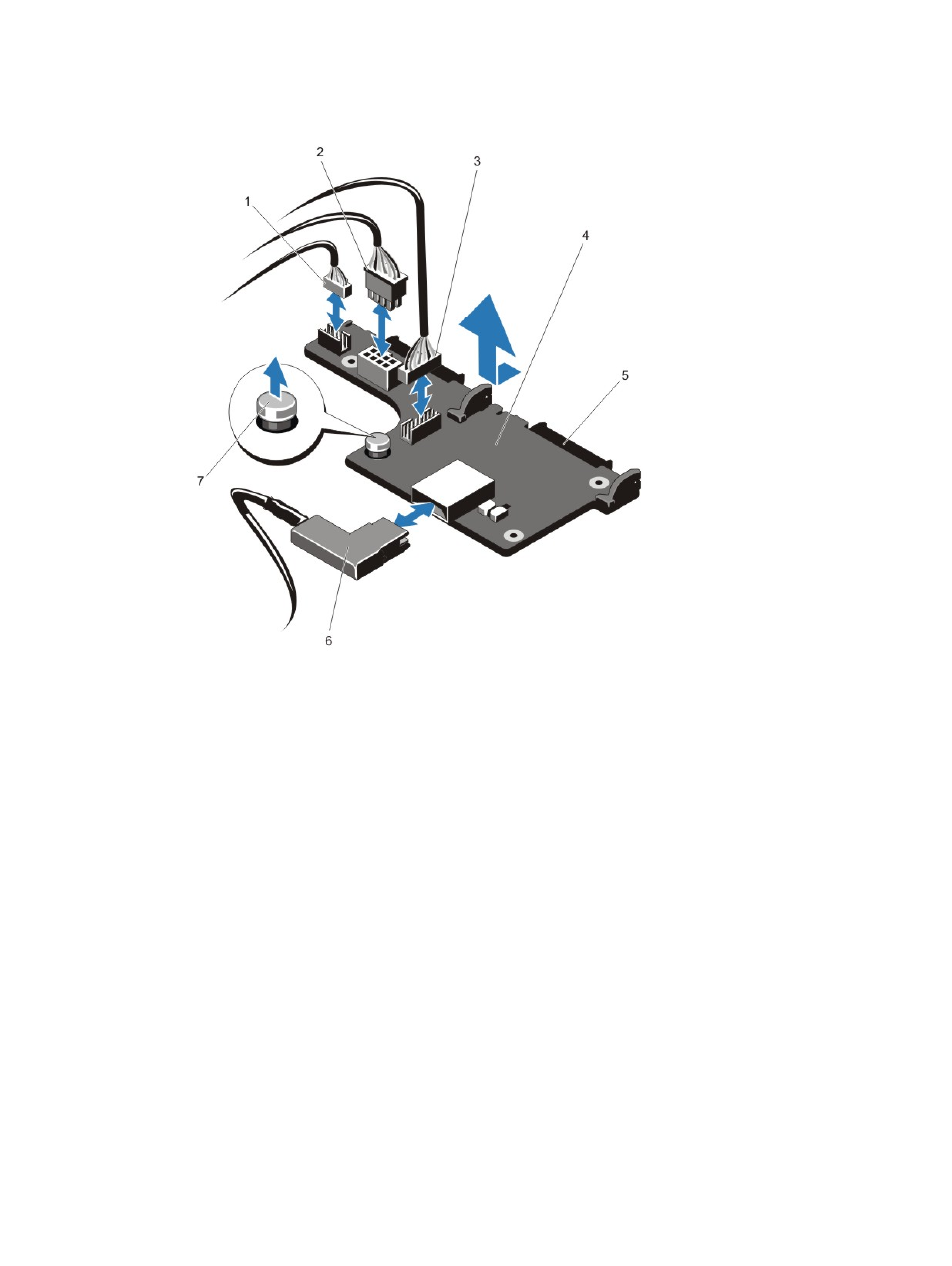

Figure 42. Removing and Installing the Optional 2.5 Inch (x2) Hard-Drive Backplane

1.

pass-through I2C cable

2. I2C cable

3. sideband cable

4. hard-drive backplane (back)

5. SAS connectors (2)

6. SAS cable

7.

release pin

77
