Rotation – Amico Falcon Combo Arm User Manual

Page 34

34 Amico Accessories Inc.

Rotation

WARNING

For FIT Station with extension arms, both arms have a 180 degree rotation. Ensure proper

clearance around the arm(s) to avoid collision.

NOTE:

If the arm becomes difficult to rotate, or too loose, please contact Amico Accessories:

1-877-264-2697

NOTE:

Adjusting the rotational tension of the extension arms can be done by loosening or tightening

the bolt at the joints of the arms and the adapter (Figure 1) using a 3/4” socket wrench or equivalent tool. Be
careful not to overloosen.

Single Arm Rotation:

To rotate the AHM, simply push on the side of the AHM in the direction desired.

Extension Arm Rotation:

To rotate the extension arm (near wall), push on the side of the extension arm, near the

mid-way point (Figure 1). To rotate the AHM, hold the extension arm with one hand and push on the side of the AHM
with the mounted monitor (Figure 2).

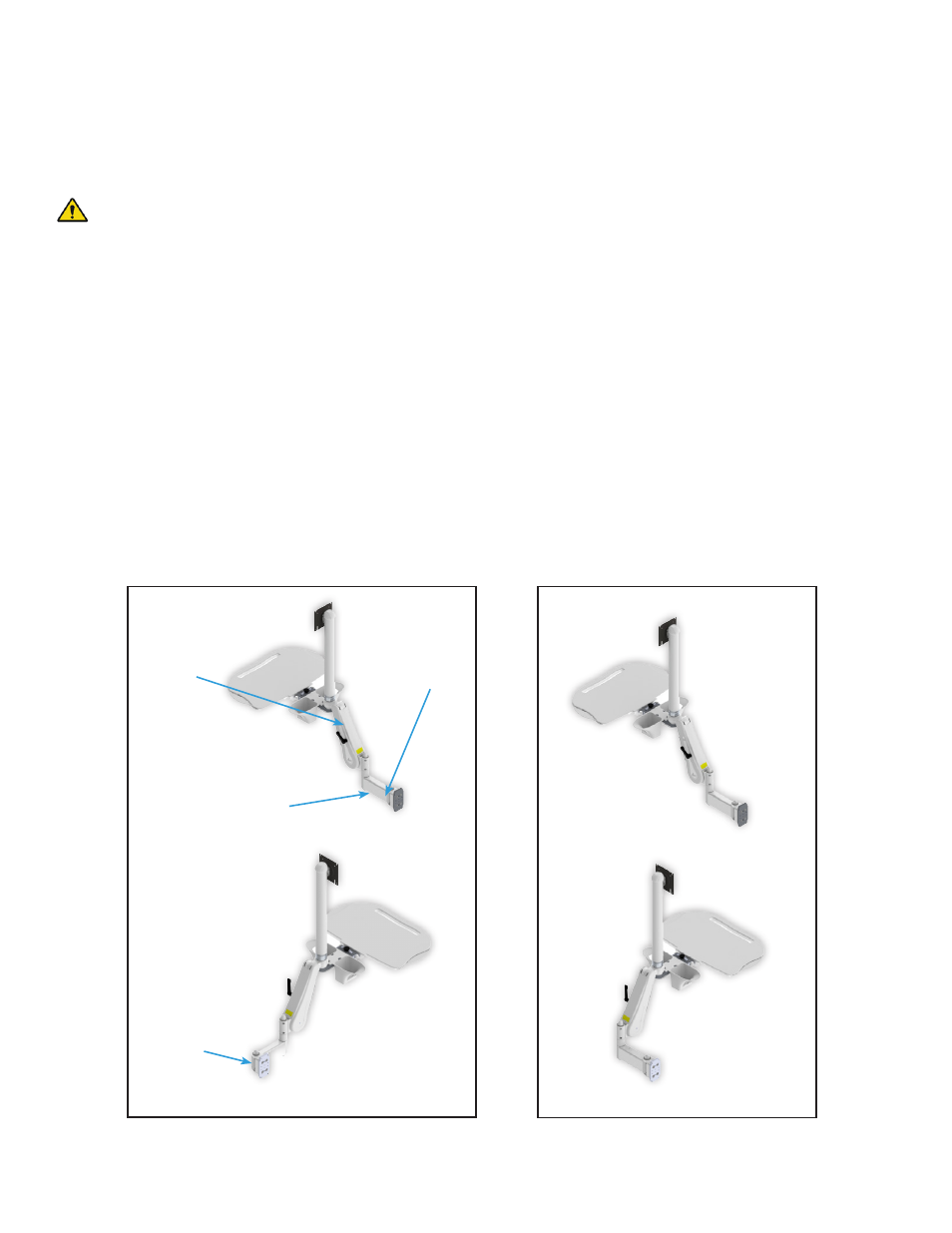

(Figure 2)

To rotate AHM:

Second Arm rotated

(Figure 1)

Extension Arm rotated

Bolt at extension arm

Bolt at
adapter

AHM

extension arm

SECTION 4: Adjustments
