Amico Falcon Combo Arm - Manual (Page 12)

12 Amico Accessories Inc.
Mounting To The ARS (Amico Rail System)
FIT Station
WARNING DO NOT attempt to mount/remove the FIT Station from the rail when loaded with any instrument
WARNING DO NOT mount system anywhere near or above a Patient’s head.
WARNING After the Mounting Adapters are installed, ensure that the levers on the Mounting Adapters are
pressed in as far as possible and the adapters are sitting properly inside the rail before mounting devices.
WARNING Ensure rail is stable and properly installed before mounting FIT Station.

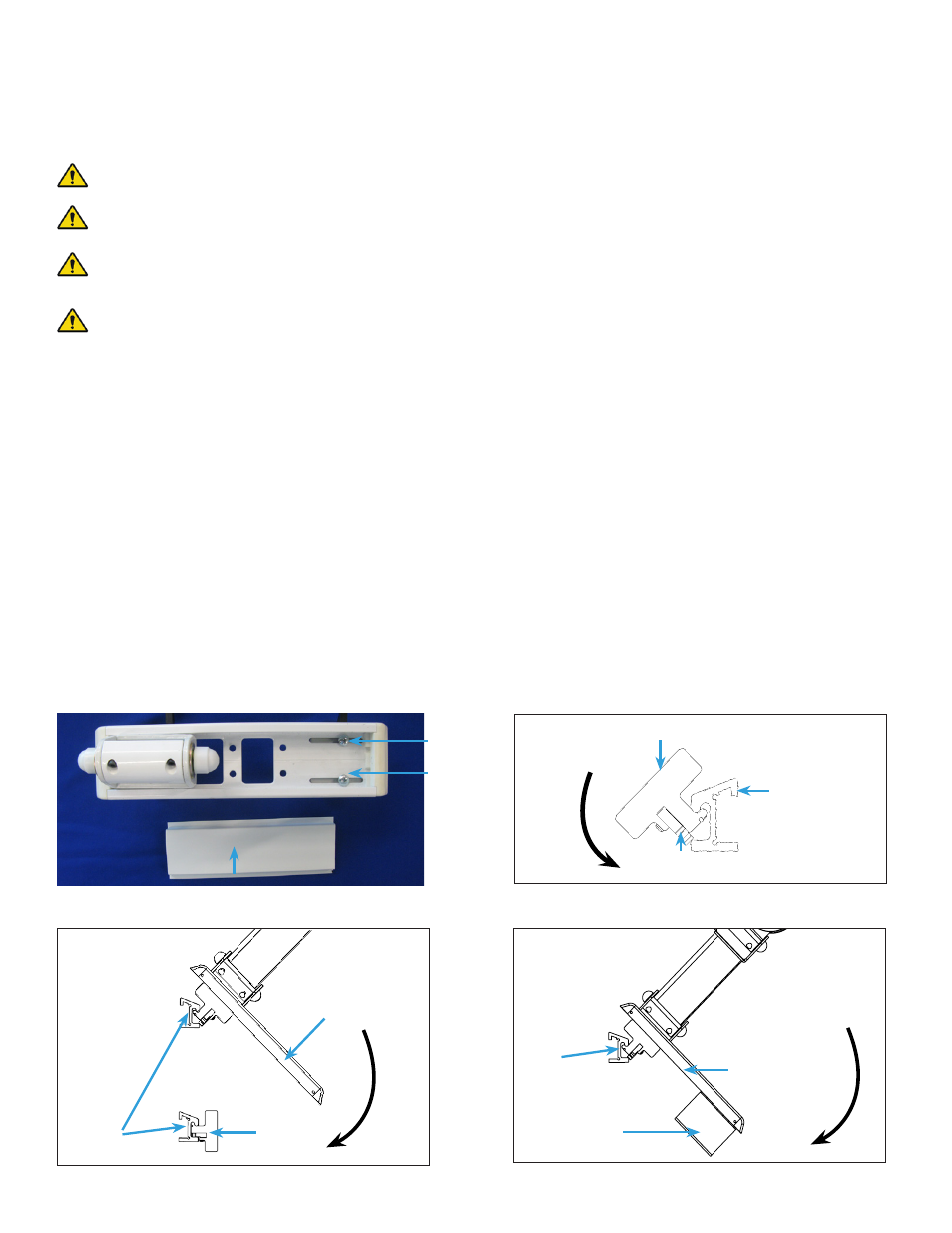

Mounting On A Headwall
1. Determine the best location to install the FIT Station. Pop out the cover from the Mounting Adapter Channel to
access the two screws connecting the channel to the Mounting adapter. Remove the two screws and the lock
washers behind them to free one of the Mounting Adapters (Figure 1). Install it into the bottom rail by angling
the upper lip into the inside lip of the ARS, pull the lever back against the Mounting Adapter and push the
adapter into the rail. Once secure, release the lever (Figure 2).
2. Mount the FIT Station by installing the remaining Mounting Adapter into the top ARS the same way as step 1,
ensuring the two holes on the bottom Mounting Adapter can be seen through the Mounting Adapter Channel,
secure the Channel to the bottom Mounting Adapter using the screws and lock washers you removed in step 1.
(Figure 3)
Mounting On A Single ARS
1. Install the FIT Station by installing the Mounting Adapter attached to the Mounting Adapter Channel to the ARS
as shown in step 1. Once it is secure, release the lever, ensure the support block is sitting flush and firmly against
the wall. (Figure 4).
2. Install the Locking bar by placing it on top of the Mounting adapter so it is squeezed by the adapter and ARS.
Mounting
Adapter Channel
ARS Adapter
installed
ARS
Rail
(Figure 3)
(Figure 4)
Mounting Adapter
Channel ARS Rail
Support Block
(Figure 2)
ARS Adapter
lever on ARS
ARS Rail
Mounting on a headwall
Mounting on a single ARS
(Figure 1)
Screw, lock
washers
Cover
Mounting
Adapter
Channel
SECTION 2: Installation on Rail Systems
