14 Amico Accessories Inc.
Mounting To The Hill-Rom Vertical Rail
FIT Station
WARNING To prevent the Mounting Adapter from falling down the channel, ensure that the nuts are secured
to the tightest possible position. After installation, rotate the AHM arm side to side and verify no movement is
present between the adapter and the rail.
WARNING Removal of lock nuts will require a new set for reinstallation. Please contact Amico Accessories for
spare parts, 1-877-264-2697
WARNING Ensure Headwall contains rails compatible with Mounting Adapters.
WARNING Ensure rail is stable and properly installed before mounting FIT Station.

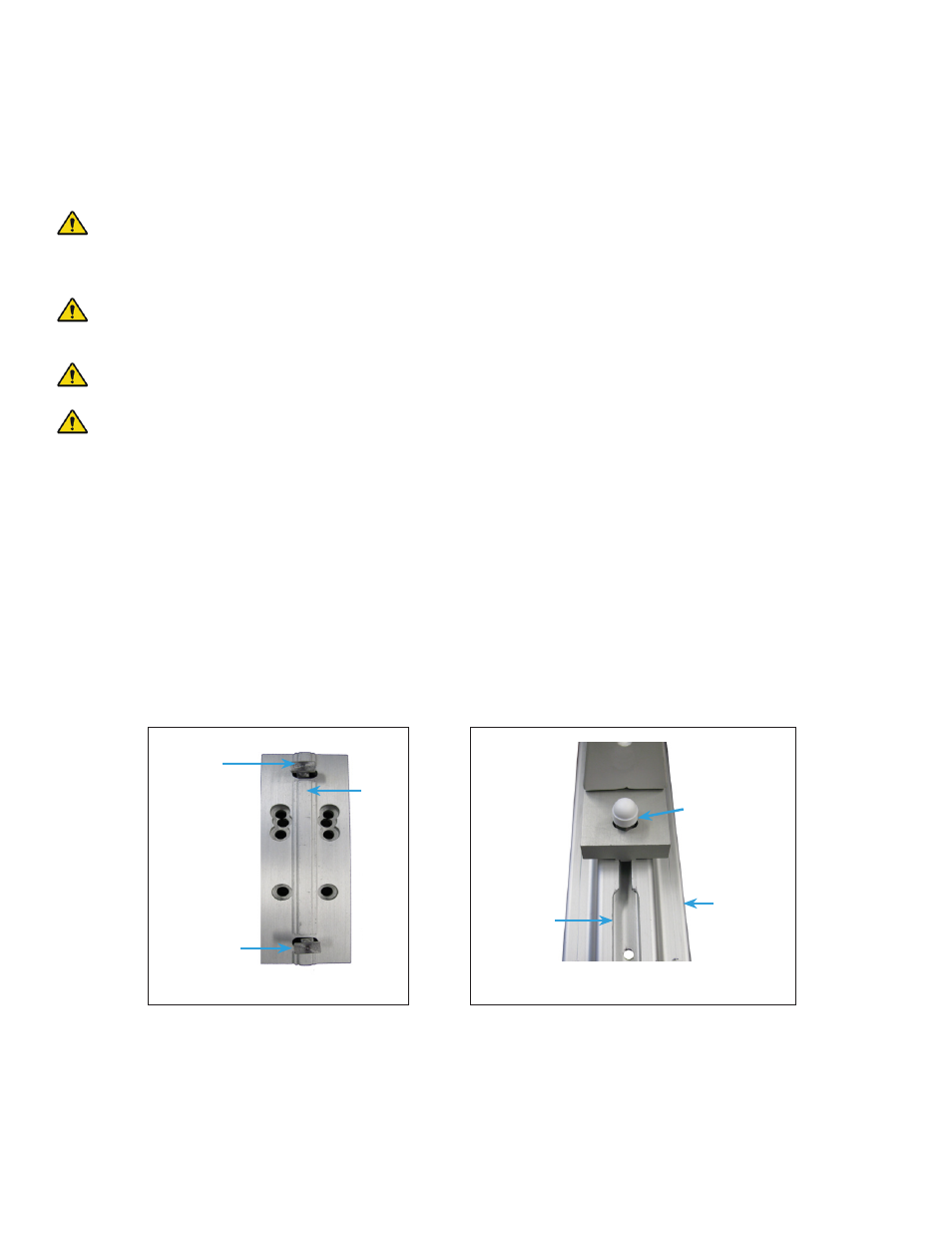

1. With the AHM arm locked in the highest vertical position, support the bottom of the arm and guide the head of
the top GTA pin into the opening of the rail (Figure 1). Ensure the flange on the Mounting Adapter is properly
aligned with the rail. Slide the Mounting Adapter up so that the head of the bottom GTA pin slides into the
opening of the rail.
2. Position the arm to the desired height. Tighten the jam nuts and then the lock nuts on the top and bottom of
the adapter using a 1/2” (3.81cm) wrench (Figure 2). Cover the nuts with the plastic caps provided. (Figure 2)
(Figure 1)
Flange
Backside
Head of
the top GTA pin
Head of the
bottom GTA pin
(Figure 2)
Hill-Rom
Rail
Front
Opening of
the rail
jam nut, lock nut,
and plastic cap
SECTION 2: Installation on Rail Systems
