Installing The Extension Arm:
NOTE: Extension arms are normally shipped assembled with the AHM. If the extension arm is not assembled, please
follow the instructions below to attach the extension arm before mounting.
WARNING Remove all mounted devices before removing the FIT station from the rail.
WARNING Do not reuse the removed screws to attach AHM arm base, contact Amico Accessories at
(1-877-264-2697). Use part number H-HSCSP-1032-58.
1. Remove the FIT station from the rail, see FIT station mounting section on page 7-14 for instructions or contact
Amico Accessories at (1-877-264-2697)
2. Remove the 4 screws attached to the AHM arm base, and remove the installed extension arm/flush mount.
Attach new extension arm to the AHM arm using 4 new screws in the same position (Figure 1).
3. Follow installation instructions to remount the FIT station onto the rail and for remounting of all devices.

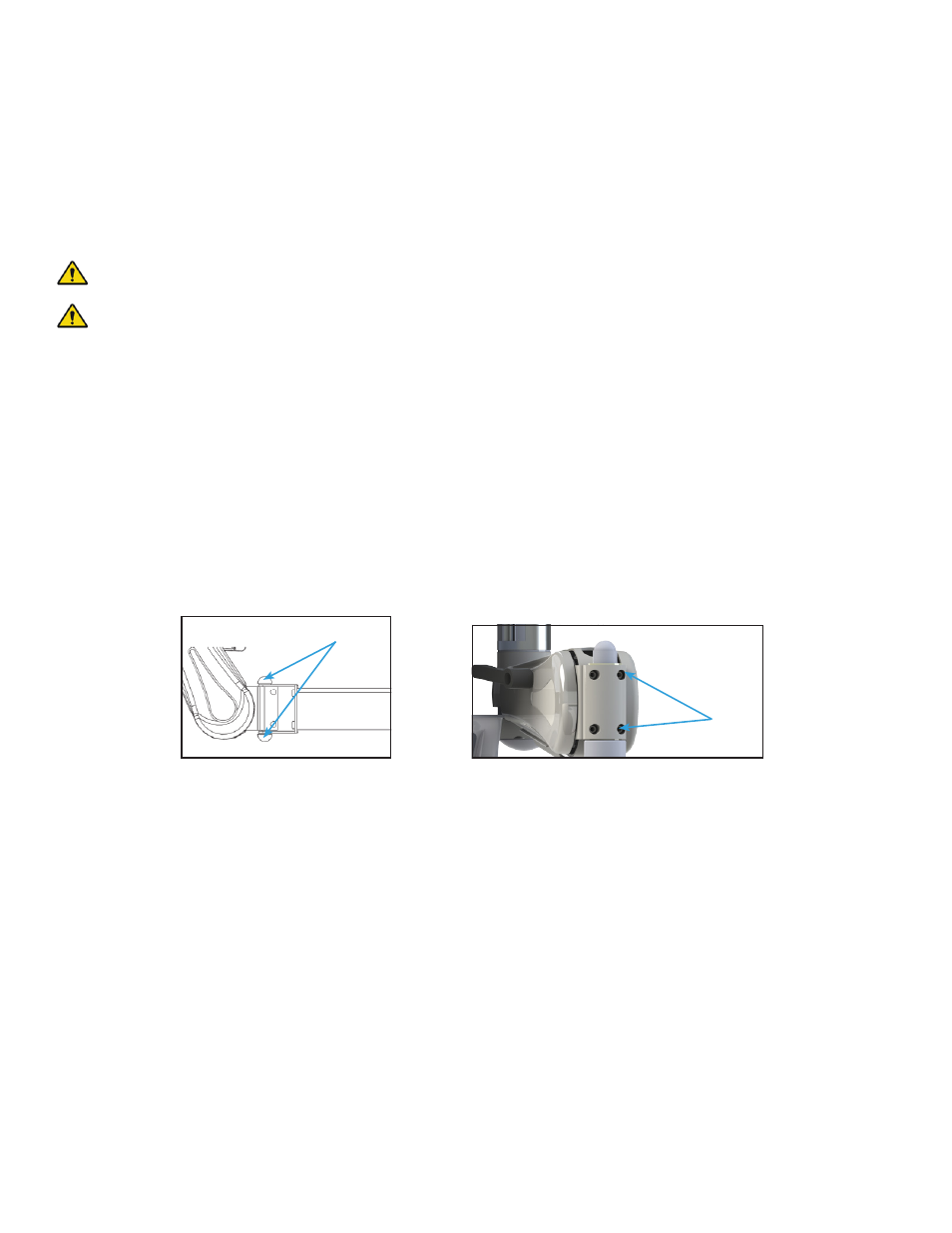

(Figure 1)
Plastic Caps
(Figure 2)
Screws
SECTION 4: Adjustments
