Great Plains Manufacturing, Inc. Table of Contents Index Operating Instructions 23
2013-08-13 Table of Contents Index 401-625M

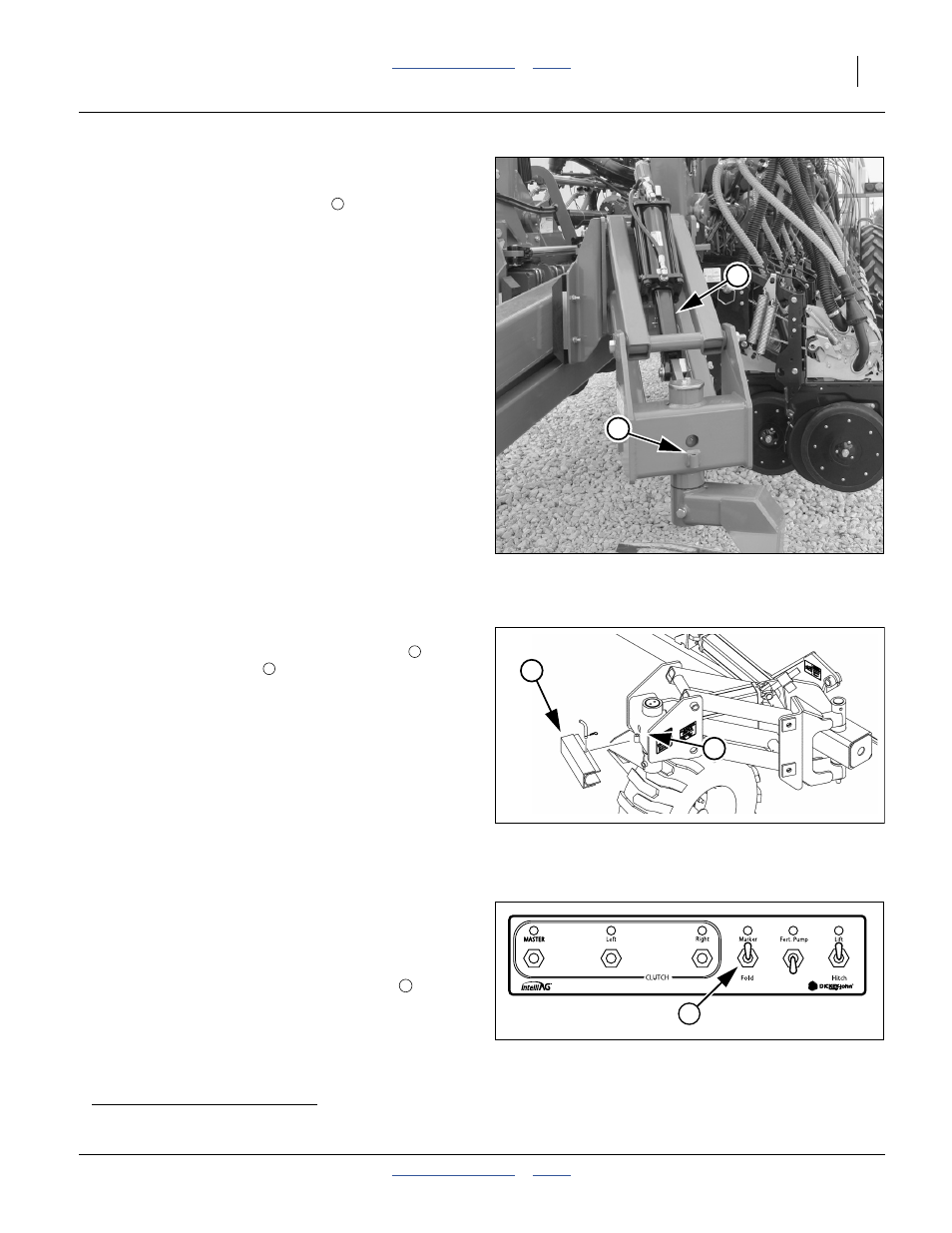

Remove/Store Caster Lift Locks
Refer to Figure 21
14. Remove transport lock channels
from lift cylinders
located on gauge wheels.
Refer to Figure 21 and Figure 22
15. Transfer lift cylinder transport lock channels
to
their storage positions .
Unfold Closeout
16. As appropriate for the next planned activity, activate
lift hydraulics and lower planter.
17. To disable fold hydraulics, and lock caster arms
a
in
field position, set CFM Marker/Fold switch to
“Marker”.
Note: Set switch to “Marker” even if Markers are not
installed. This switch position disables all fold
solenoid valves.
Figure 21
Caster Lift Cylinder Lock
29737
3
4
3
Figure 22
Transport Cylinder Lock Storage
27290
4
3
3
4
a. YP1125A s/n A1154K+ and YP1625A s/n A1172B+
Figure 23
CFM After Unfold
28485
5
5
