YP1225A s/n A1153K- Fold and Marker (w/o Aux)

MARKER

MARKER

GW FOLD

GW FOLD

To T

ractor

FOLD

FOLD

LOCK

Valve mounts

vertically on 12 row

R1

C1

R2

C2

Figure 136

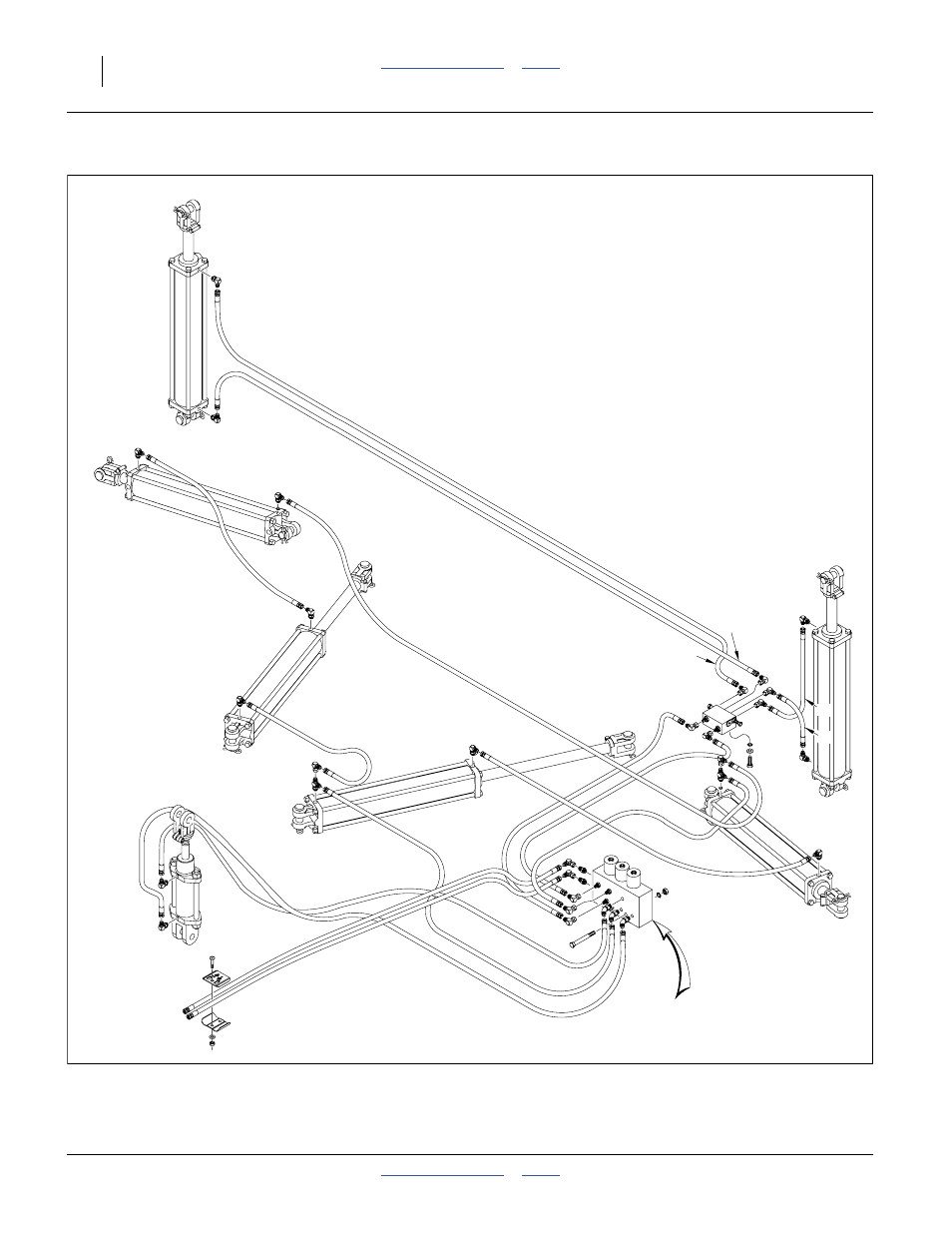

YP1225A s/n A1153K- Fold and Marker Hydraulics (without Aux.)

23154
