Centurion CDA600

270-600M-ENG

52

2013-06-14

4.18.2 Work Screen (1/2)

1. Stop - override button for tramline:

This key prevents switching over of the
tramline rhythm after lifting the machine.
The stop sign is shown between the
tracks to indicate this.

2. The tramline rhythm is offset by one

track with every operation of the key.
The track number is displayed beside
the tracks.

3. Seed rate 100%: If the seed rate had

been adjusted with the +% or -% keys,
pressing this key will switch back to the
default seed rate.

4. This button is used to increase the seed

rate. The percentage increment can be
changed in the machine data screen
(Delta Step in figure 39 on pg 54).

5. This button is used to decrease the seed

rate. The percentage increment can be
changed in the machine data screen
(Delta Step in figure 39 on pg 54).

6. This button activates the boutmarker

circuit only, so that the main circuit will
retract the boutmarkers in order to avoid
obstacles but does not affect tramlines.

7. “Wet hole” function: In certain situations,

such as the machine sinking into wet
patches in the field, this function can
be used to raise the machine. The
work signal is not interrupted and the
tramline will not switch further. Normal
drill function is resumed by pressing the
button a second time or waiting for the
user-defined time-out.

8. Pre-start button - this button runs the

motor for a specified amount of time.
If, during this time, the panel recieves
a speed signal from the radar the panel
will take over.

9. This button allows the user to switch

between screens. The second screen
(2/2) defaults back to the first screen
(1/2) after 12 seconds.

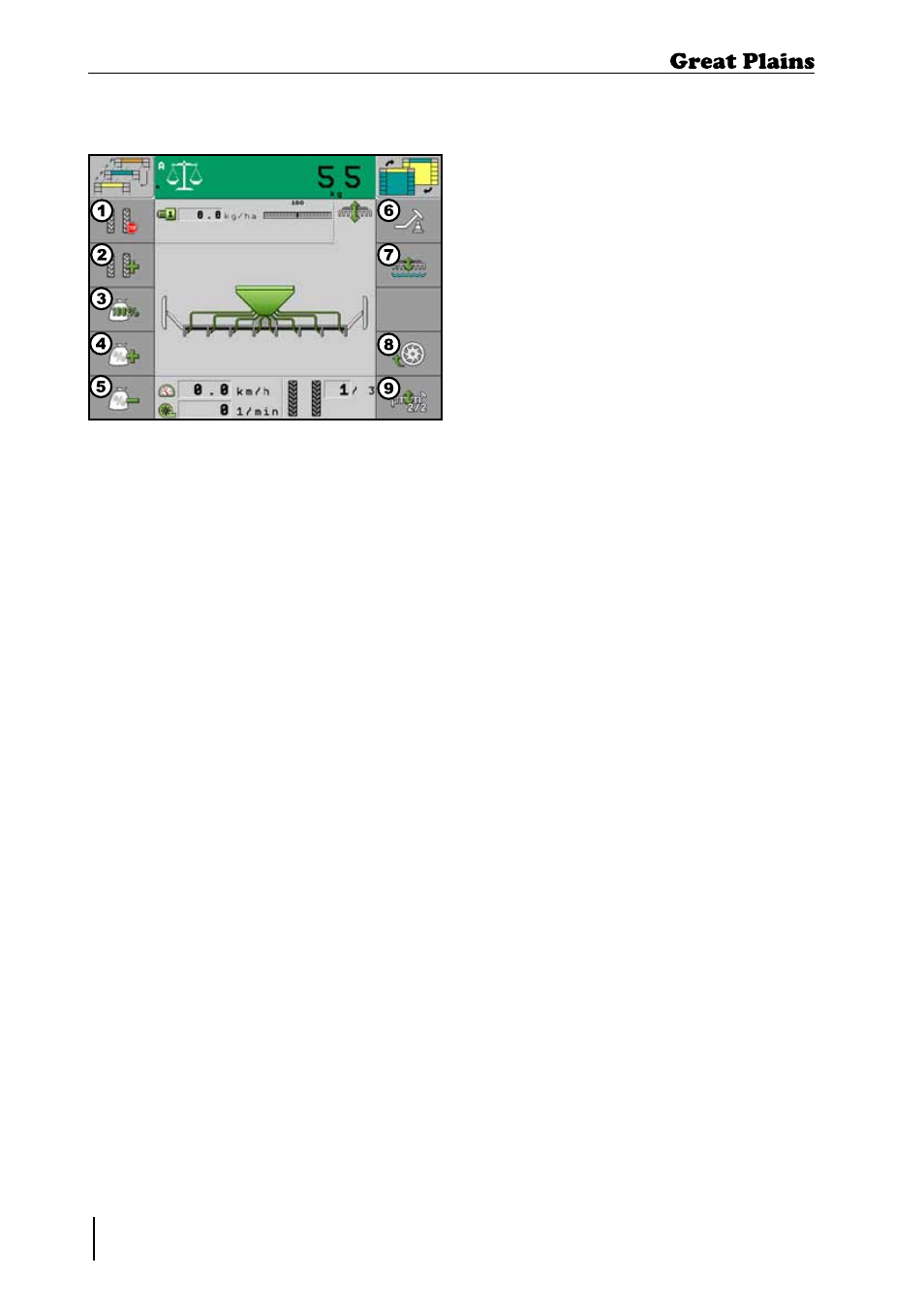

Figure 34. Work Screen 1
