Centurion CDA600

270-600M-ENG

42

2013-06-14

4.10 Tyre Packer

The large diameter, full width central tyre
packer works ahead of the drilling coulters
to provide consistent seeding depth and
consolidation.

Field mode ensures all tires stay in contact
with ground for headland turns. Transport
mode increases ground clearance. To put
the machine in maintenance mode the lock
channels should be removed to allow the
cylinder to retract fully (see page 29).

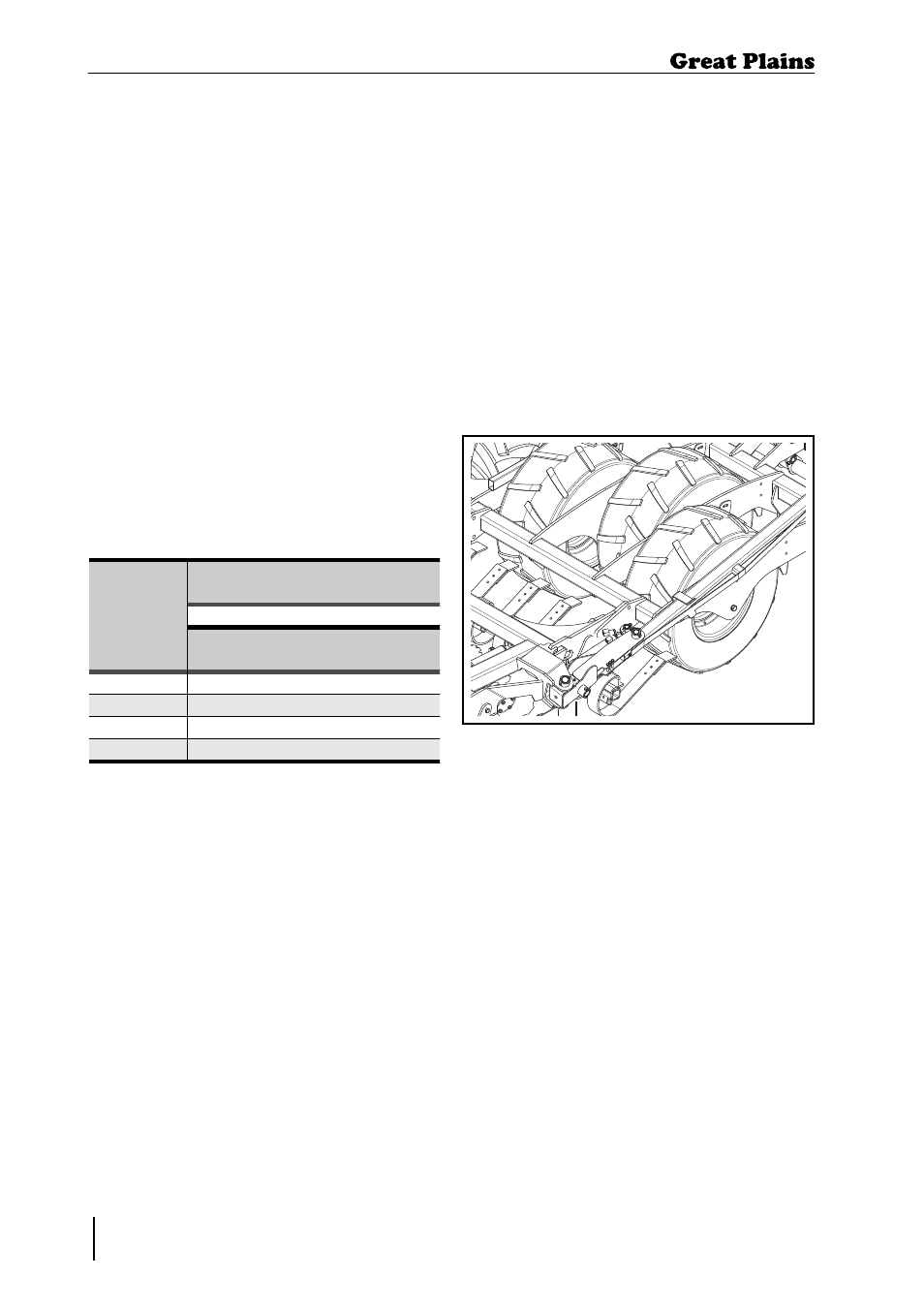

Figure 18. Tyre Packer

4.9.3 Adjusting Fan

Speed

The fan speed should be adjusted according
to your situation.

Start with flow on low setting. 30-45 litres/
min (8-12 gpm) is average flow.

Run the fan for at least 15 minutes before
seeding. Hydraulic fluid must be warm
before fan and wing pressure systems
operate properly.

Watch the manifold pressure gauge(s)
and seed monitor, and adjust fan speed
by increasing or decreasing hydraulic flow
from the tractor.

Source:

167-085M

Provider:

TJP

Dated:

2009-01-02T00:00

File:
/files/iso/text/31000/31184.ods
Sheet:

31184

Revision:

2011-06-09T07:02

By:

RJN

Export as:
/files/iso/text/31000/31184.pdf
Import as:
/files/iso/text/31000/31184.eps

Fan RPM

Limits

Minimum

Maximum

2000 rpm

to

4500 rpm

Typical Range

Minimum

Maximum

Milo

3250 rpm

to

4000 rpm

Soybeans

2750 rpm

to

3500 rpm

Sunflower

2250 rpm

to

3000 rpm

Wheat

3250 rpm

to

4000 rpm

Typical Range

Minimum

Maximum

12 in H2O

to

25 in H2O

30 cm H2O

to

64 cm H2O

30 kPa

to

64 kPa

3050 bar

to

6350 bar

4.4 psi

to

9.2 psi

Alarm Limits

Minimum

Maximum

1.3 kPa

to

8.6 kPa

130 bar

to

860 bar

13 cm H2O

to

88 cm H2O

0.19 psi

to

1.25 psi

5 in H2O

to

35 in H2O

31184

Manifold
Pressure

Hopper
Pressure
Limits

4. Adjustment / Operation
