IN100 Mortise Lock
Warning: SARGENT Mfg. Co. IN100 locksets utilizing a door position switch (DPS) are not rated for, or intended
for use in life safety applications.
System Overview 4
! To comply with “Fire Listed” doors, the batteries must be replaced with alkaline batteries only.
Specifications
General Description 2
3
The SARGENT® IN100 mortise lock with Aperio™ Technology makes it easy and cost-effective to bring ac-
cess control to doors. It uses local wireless communication between the lock and an Aperio hub to connect
to an access control system, eliminating the greatest cost and inconvenience of traditional access control
– the wiring at the door. The IN100 utilizes HID® iCLASS® 13.56 MHz smart card technology and all technol-
ogy features are supported by the physical security of SARGENT ANSI/BHMA Grade 1 hardware.
This product is operated by six (6) “AA” alkaline batteries. SARGENT mortise locks are designed with quality
components to provide high security, performance, and durability.
The IN100 mortise lock may be used for both indoor and exterior applications. A weather-protective
gasket is required for exterior applications.
Lock
• IEEE 802.15.4 UHF interface
• AES 128 bit encryption
Credential Support
• HID 13.56 MHz iCLASS (full authentication, all formats)

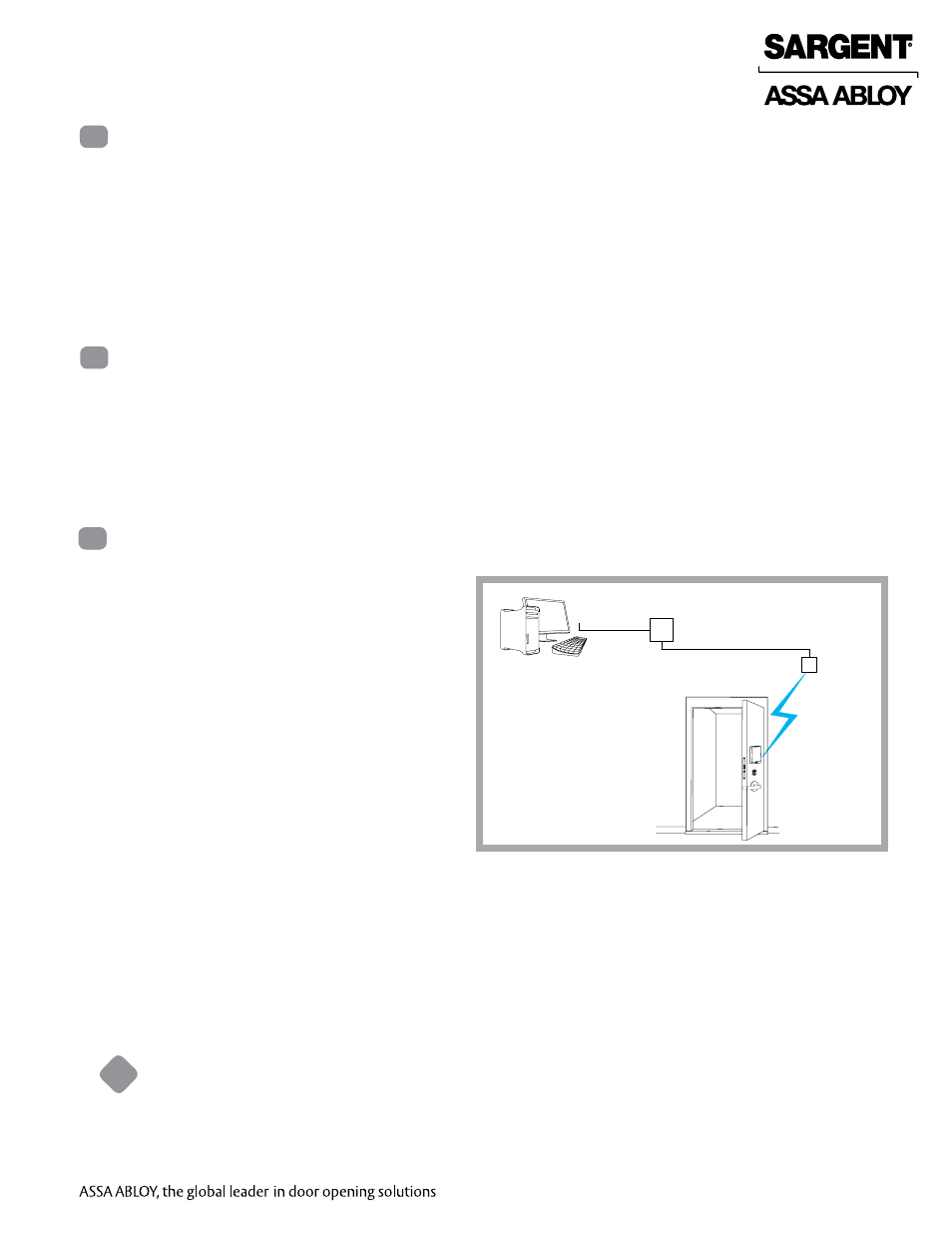

When a user presents a supported credential to
the lock, the Aperio system is designed to send
the credential wirelessly to the Aperio Hub. The
Aperio Hub (wired through RS-485 or Wiegand)
then communicates with an EAC (Electronic
Access Control) system. The EAC system provides
the access decision to the Aperio Hub where
access to the lock is either granted or denied.
Access Control Panel
Aperio Hub
Electronic Access
Control System
TCP/IP
RS-485/Wiegand
IEEE 802.15.4
(2.4GHz)
IN100 Patent
Pending
