IN100 Mortise Lock
1. FOR METAL DOORS ONLY: Assemble plastic collar (not shown)
to DPS sensor prior to door insertion.
2. Feed DPS wire harness through the hole in the door edge,
connector first.
3. Pull the DPS wire harness out the door preparation hole on
the inside of the door. For hollow metal doors with a conduit
installed, route DPS wire to the same preparation hole as the
mortise harness.
4. Seat the plastic DPS sensor into the door edge hole by hand.
IMPORTANT: DO NOT UTILIZE TOOLS TO SEAT SWITCH.

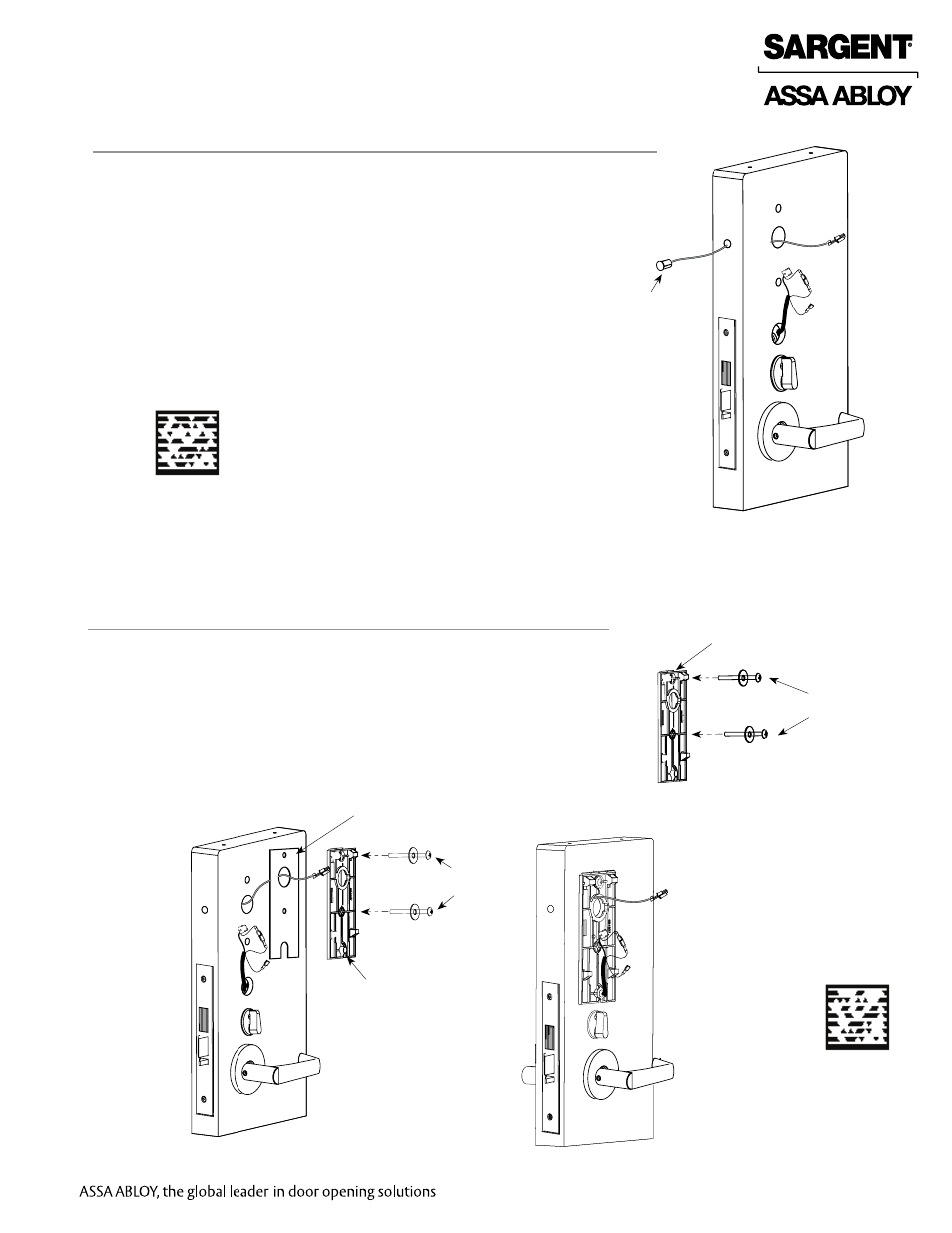

10 DPS (Door Position Switch) Installation
Door Position
Switch (DPS)
Fig. 10
11 Inside Mounting Plate Installation
1. Assemble fire shield to mounting plate by aligning the
mounting plate posts with holes.
2. Assemble (1) washer to each through bolt (2 sets provided).
3. Insert through bolts and washers into upper and lower
mounting plate holes.
Mounting Plate
Fire shield
Fig. 11C
Fig. 11A
Inside of Door
2x Through bolts
2x Through bolts
Fig. 11B
open slot
Scan this Microsoft® Tag using your mobile phone
to see a video of this installation step. The Microsoft
Tag mobile app is required to scan the Tag.
Download the free mobile app at http://gettag.mobi
Scan this Microsoft® Tag using
your mobile phone to see a
video of this installation step.
The Microsoft Tag mobile app
is required to scan the Tag.
Download the free mobile app at
http://gettag.mobi
