IN100 Mortise Lock

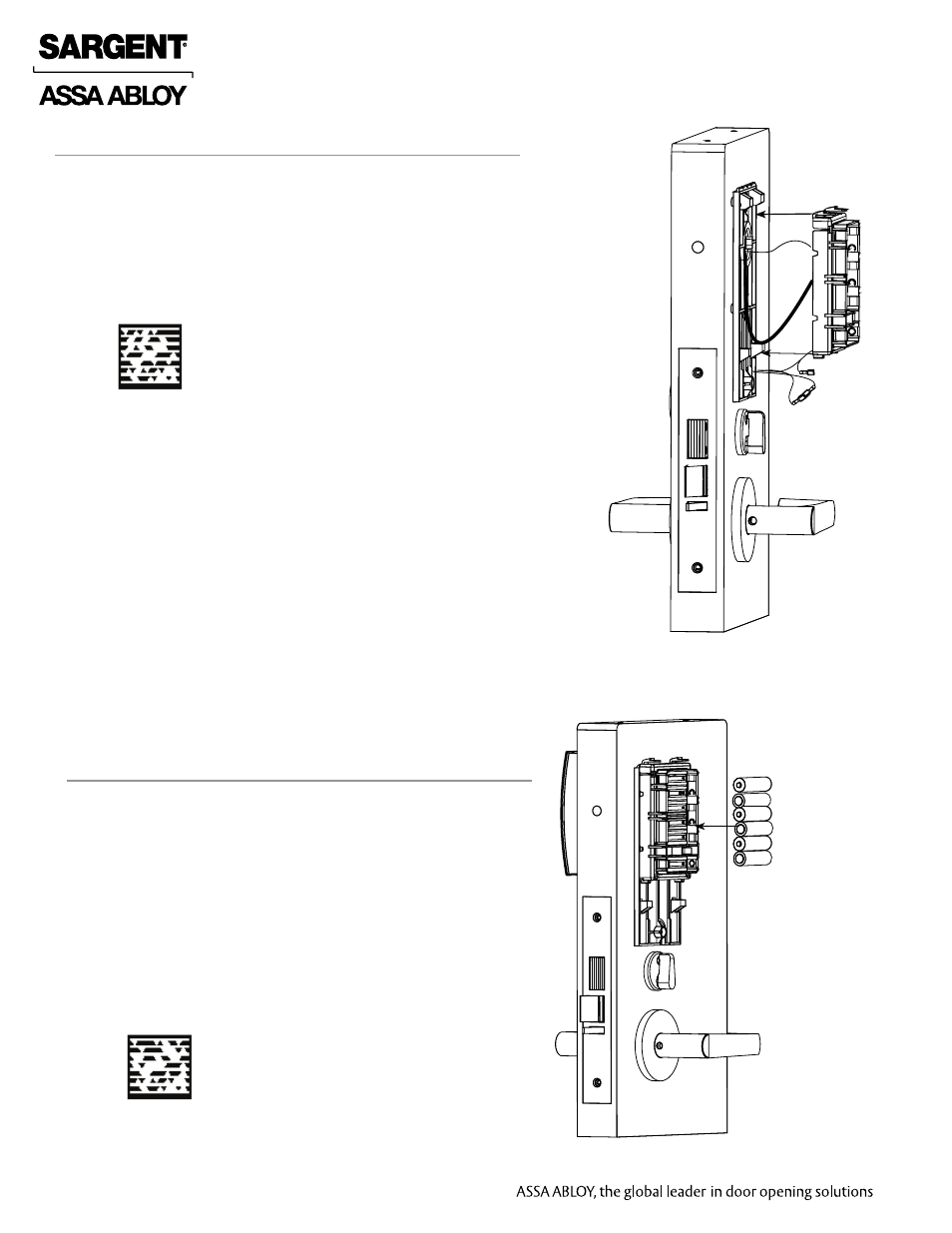

16 Battery Housing Installation
1. Position the DPS and harness below the tabs of the
mounting plate.
2. Align the tabs of the battery housing with the tabs of the
mounting plate. Push down.
3. Lightly press the lock harness to assemble.
4. Snap battery compartment into position.
Fig. 16
17 Battery Installation
1. Place (6) “AA” alkaline batteries in the compartment, being
careful to align polarity properly.
2. After batteries are installed an audible “beep” will sound,
the lock motor will cycle and red LED lights will flash.
Fig. 17
Inside of Door
Inside of Door
